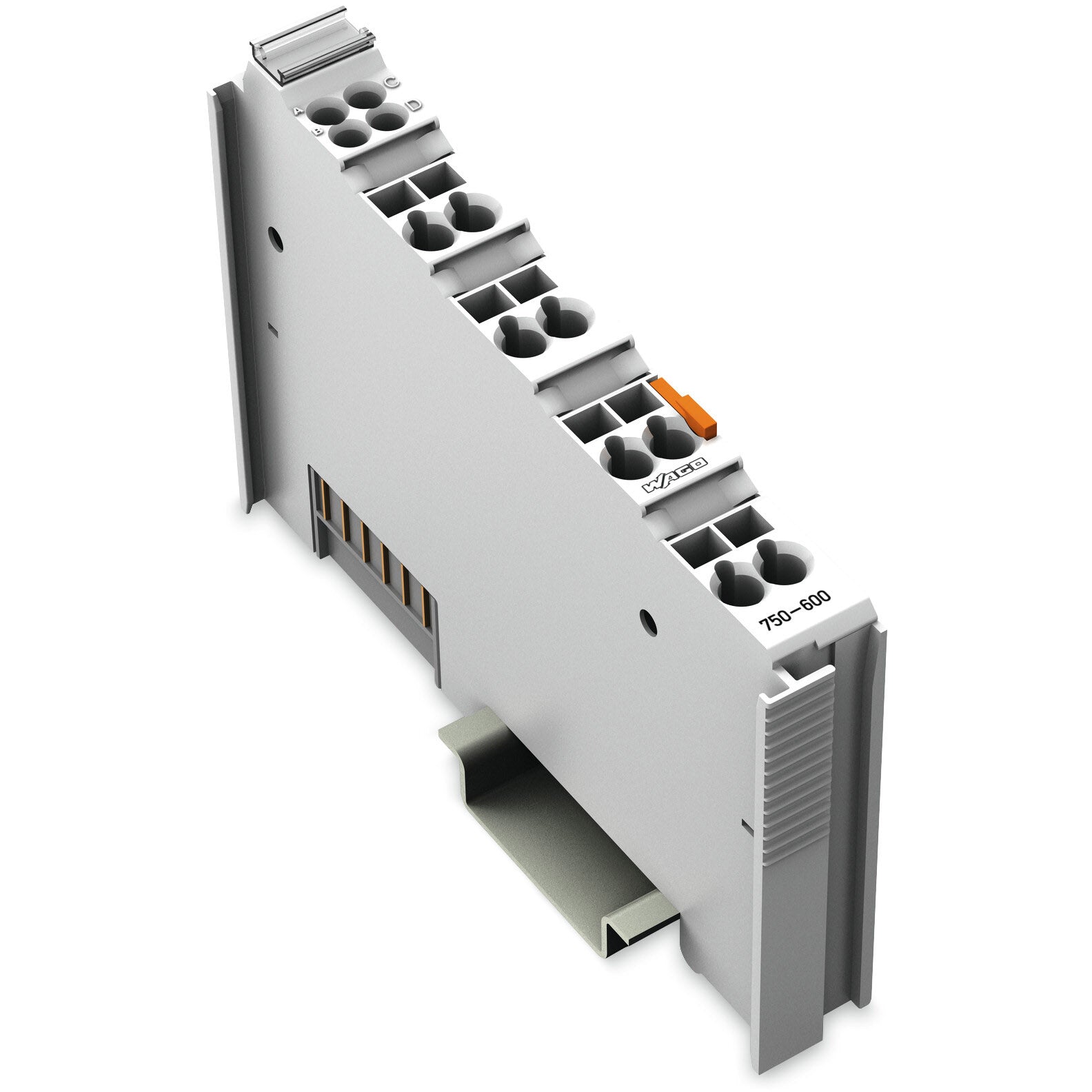

Wago - 750-600

End module - WAGO (750 series) - End Module - Light Gray color - DIN-35 rail mounting (12mm width) - IP20 - equivalent to 750600

Specifications

• Primary brand: WAGO
• Functions: End module
• Color: Light Gray
• Mounting mode: DIN-35 rail
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Customs Tariff Number: 85389091890
• ETIM code: EC001600
• eClass code: 27-24-26-10
• GTIN code: 4045454073985
• Order code / Manufacturer SKU: 750-600
• Manufacturer product status: Commercialized
• Equivalent to: 750600
• EAN code: 4045454073985
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-END750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- KTL - Korea Testing Laboratory - KOSHA Article 34 / IEC60079-0 - certificate 20-KA4BO-0101X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: End module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389091890
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-10
• eCl@ss 9.0: 27-24-26-10
• ETIM 8.0: EC001600
• ETIM 9.0: EC001600
• GTIN: 4045454073985
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.208MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 32.2g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Supply voltage (system): )
