Wago - 750-610

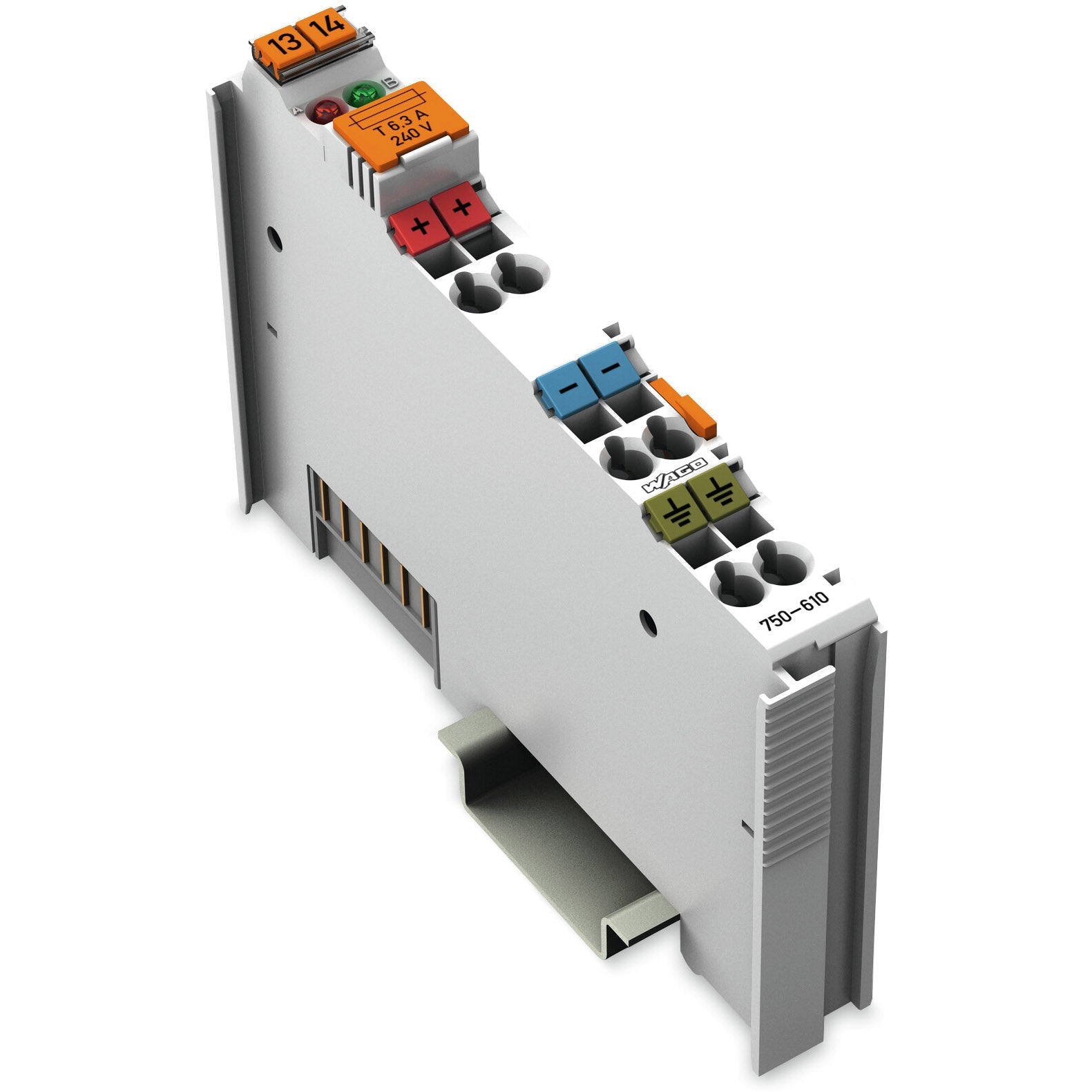

Diagnostic power supply module with diagnostics + accessible fus. holder - DNV approved - WAGO (750 series) - 6.3A output - supply voltage 18-31.2Vdc (24Vdc nom.) - with CAGE CLAMP spring connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750610

Specifications

• Primary brand: WAGO
• Functions: Diagnostic power supply module|diagnostics
• Design: accessible fus. holder|DNV approved
• Supply voltage (DC): 18-31.2Vdc (24Vdc nom.)
• Display: LED (A) red -- defective fuse error|LED (B) green -- power supply status
• Rated current: 6.3A
• Connection type: CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 5mA (5Vdc; system supply)
• eClass code: 27-24-26-10
• ETIM code: EC001600
• GTIN code: 4045454396145
• Customs Tariff Number: 85389091890
• Order code / Manufacturer SKU: 750-610
• Manufacturer product status: Commercialized
• Equivalent to: 750610
• EAN code: 4045454396145
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-SPP750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: Power supply units for PLCs
• Product title: Diagnostic power supply module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389091890
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-10
• eCl@ss 9.0: 27-24-26-10
• ETIM 8.0: EC001600
• ETIM 9.0: EC001600
• GTIN: 4045454396145
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: field supply: 6 x CAGE CLAMP^®
• Connection type 1: Field supply
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|25550-51-0|7439-92-1
• REACH Candidate List Substance: 4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): c36715f9-5c40-41b2-adf9-d5957c44da13
• SCIP notification number (Belgium): 7e462ec9-8afd-4ffc-9932-6854fcd510a6
• SCIP notification number (Bulgaria): de728fff-7a8a-4dcd-8891-55bae0a63909
• SCIP notification number (Czech Republic): 50cc0f06-c64f-4a3e-bf92-7a40111c4ce1
• SCIP notification number (Denmark): a7f1d4c1-2846-43c0-bfd9-d82b326af59e
• SCIP notification number (Finland): 44ebb0bc-0a17-4c46-b729-113c8d64ee89
• SCIP notification number (France): 74e9db25-dd06-4112-9f35-29e00223c6ba
• SCIP notification number (Germany): dc722b39-d957-4e52-8057-659aa749f781
• SCIP notification number (Hungary): 1455ff80-7191-4e7f-925a-63e8343ec057
• SCIP notification number (Italy): 29a07005-72c3-4ce2-a464-d2090052f491
• SCIP notification number (Netherlands): 21bc08b9-1085-414a-8c57-a8f10f34963d
• SCIP notification number (Poland): e57d7b40-2b74-4f28-8f1c-71c9513157b9
• SCIP notification number (Romania): 746c698b-617d-4240-9693-6e64d1028b5e
• SCIP notification number (Sweden): 388144aa-fc99-428d-8470-2d262bdfb9a2

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Conformity marking: CE
• Fire load: 1.705MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 46.8g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current carrying capacity (power jumper contacts): 6.3A
• Current consumption (5 V system supply): 5mA
• Data width: 2 bits (1 bit current monitoring, 1 bit fuse fault)
• Diagnostics: Supply voltage (field): Detection “on” at > 15 VDC; Detection “off” at < 5 VDC
• Fuse: 5 x 20; T 6.3 A (not included)
• Indicators: LED (A) red: defective fuse error; LED (B) green: power supply status
• Number of outgoing power jumper contacts: 3
• Signal type: Voltage
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP^® connection; transmission (field-side supply voltage only) via spring contact
• Supply voltage (system): 5 VDC; via data contacts
