Wago - 750-483

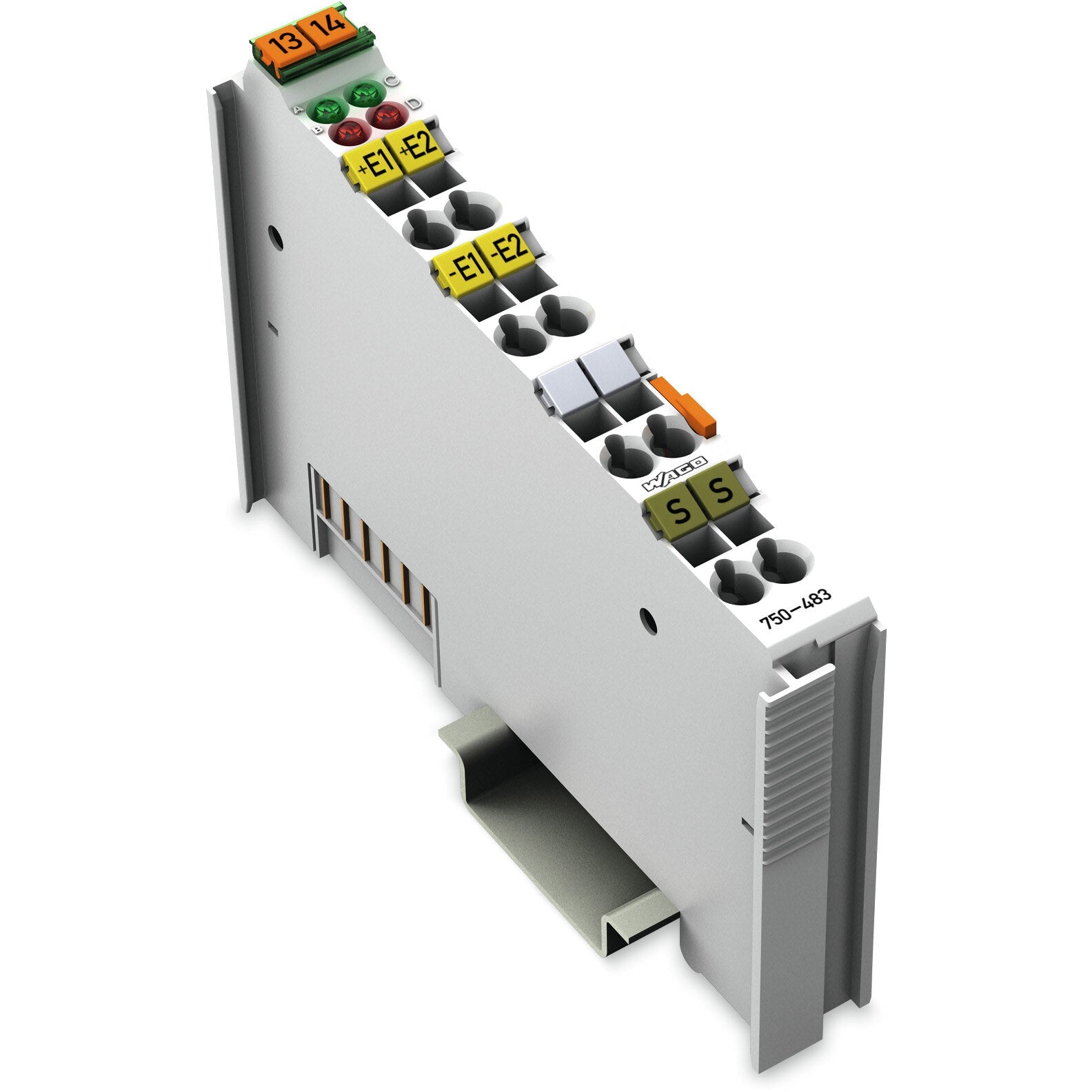

Standard analog input slice unit module with time-synchronized measured value acquisition - WAGO (750 series) - 2AI; 0-30Vdc; Diff - 2I/O [2AI (2 x analog inputs (0-30Vdc; Differential; 14-bits / 1ms conversion; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750483

Specifications

• Primary brand: WAGO
• Functions: Standard analog input slice unit module
• Design: time-synchronized measured value acquisition
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A/C) green -- Function AI 1 / AI 2|LED (B/D) red -- Error AI 1 / AI 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 2 x analog inputs (0-30Vdc; Differential; 14-bits / 1ms conversion; 2-wire)
• Measurement accuracy: +-0.05% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 80mA (5Vdc; system supply)
• eClass code: 27-24-26-01
• ETIM code: EC001596
• Customs Tariff Number: 85389099990
• GTIN code: 4045454478384
• Order code / Manufacturer SKU: 750-483
• Manufacturer product status: Commercialized
• Equivalent to: 750483
• EAN code: 4045454478384
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454478384
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 6 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): ba71972e-f610-4839-b141-e9eacc6835b6
• SCIP notification number (Belgium): d9a447ef-7633-4843-a705-607add781318
• SCIP notification number (Bulgaria): 6d06da2e-73ad-4ef0-ad89-fbe63bcefabe
• SCIP notification number (Czech Republic): b2d49527-f63a-45e7-ae11-c7d68b6d45d3
• SCIP notification number (Denmark): 7e63ece0-3fea-4648-b506-1bdfa07a0a7a
• SCIP notification number (Finland): c01da132-c3cd-4cbc-9108-2a23482cb1fe
• SCIP notification number (France): 592a81c7-22a9-468c-a86c-32b8129ea921
• SCIP notification number (Germany): 9fa75eb3-b1f5-4dff-939a-ea6992661dd8
• SCIP notification number (Hungary): 9de87cd7-7f1b-462c-a5f5-1007684c39b4
• SCIP notification number (Italy): e6924858-b0b1-4b8f-8d47-26510fc62f3f
• SCIP notification number (Netherlands): f19716e6-8d00-497f-92a4-193359e951f4
• SCIP notification number (Poland): dde6d1fe-2c9d-486c-89ad-c7087c955724
• SCIP notification number (Romania): f7bacd09-e793-446e-aa4b-d31c45e65e5b
• SCIP notification number (Sweden): b4566b61-1a61-401f-a163-52c5d6da9a2c

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.034MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 50.5g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Admissible continuous overload: 60V
• Crosstalk attenuation: 80dB
• Current consumption (5 V system supply): 80mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
• Input filter: Low pass (1st order), f_G = 5 kHz
• Internal resistance: 1000kΩ
• Isolation: 500 V system/field or channel/channel
• Measurement error (reference temperature): 25°C
• Measurement error over entire temperature range: ≤ 0.4 %
• Measurement error, deviation (max.) from the upper-range value: 0.05%
• Monotonicity without error code: yes
• Number of analog inputs: 2
• Resolution [bit]: 14bits
• Sampling delay (channel/channel): 1µs
• Sampling delay (module): 1ms
• Sampling duration: 5µs
• Sampling repetition time: 1ms
• Sensor connection: 2 x (2-wire)
• Signal characteristics: Differential
• Signal type: Voltage
• Signal type (voltage): 0 … 30 VDC
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value: 0.01%/K
• Total number of channels (module): 2
• Value of the least significant bit (LSB): 1.8 mV
