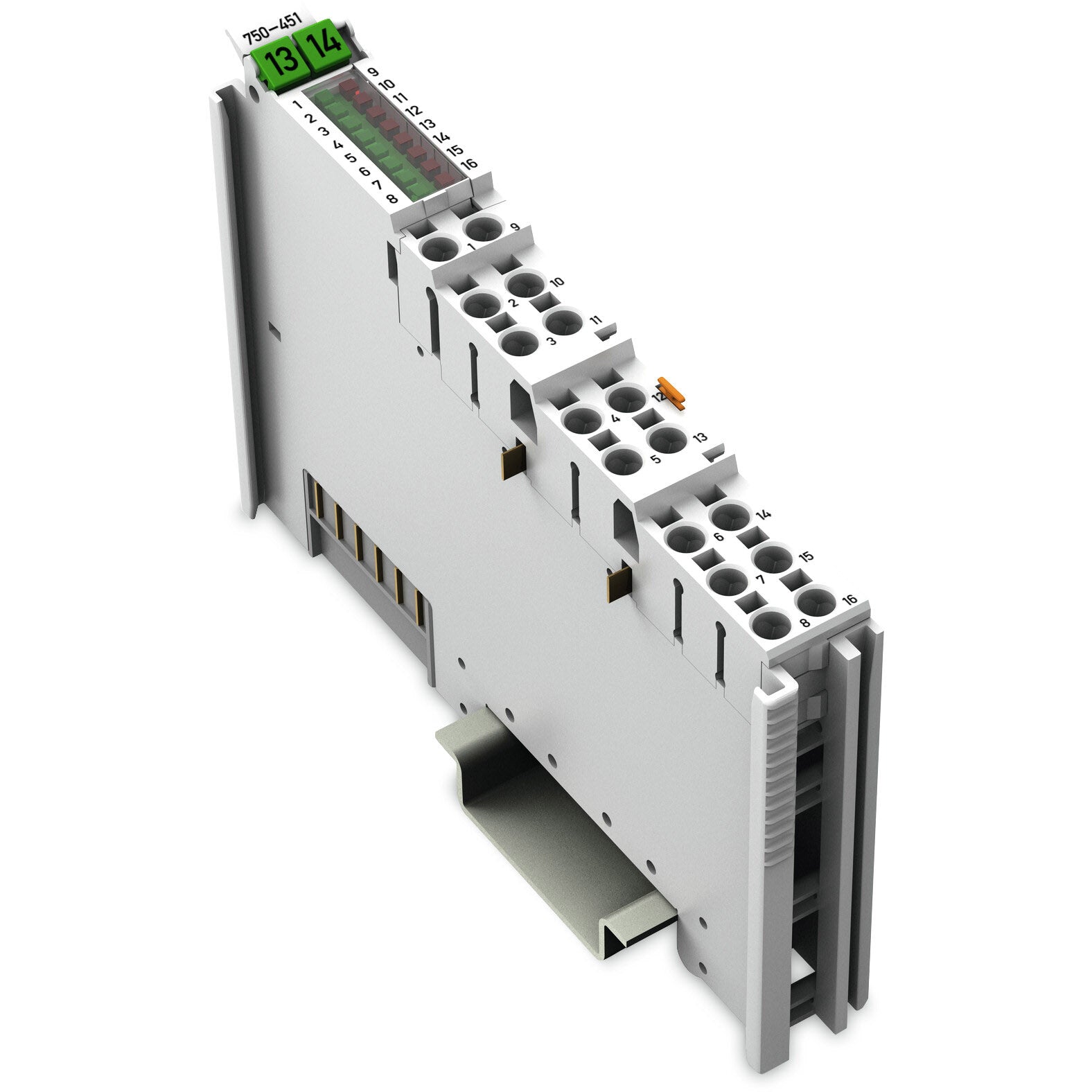

Wago - 750-451

Standard analog input slice unit module - WAGO (750 series) - 8AI; RTD; Adjust - 8I/O [8AI (8 x analog inputs (Configurable RTD Pt100 / Pt200 / Pt500 / Pt1000 / Ni100 / Ni120 / Ni1000 (TK6180 / TK5000) / Potentiometer 0...1200Ω / 0...5000Ω / 0.1°C resolution / 100ms conversion; 2-wire))] - supply voltage 5Vdc (supplied by system) - with Push-in spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750451

Specifications

• Primary brand: WAGO
• Functions: Standard analog input slice unit module|Configuration options|- WAGO-I/O-CHECK|- CODESYS Library|- e!COCKPIT
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (1-8) green -- Status R1...R8|LED (9-16) red -- Error R1...R8
• Connection type: Push-in spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 8 x analog inputs (Configurable RTD Pt100 / Pt200 / Pt500 / Pt1000 / Ni100 / Ni120 / Ni1000 (TK6180 / TK5000) / Potentiometer 0...1200Ω / 0...5000Ω / 0.1°C resolution / 100ms conversion; 2-wire)
• Measurement accuracy: +-0.6k; +-0.2K; +-0.3...0.7Ω (measuring error)
• Dimensions: H100mm x W12mm x D69mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 110mA (5Vdc; system supply)
• eClass code: 27-24-26-01
• Customs Tariff Number: 85389099990
• ETIM code: EC001596
• GTIN code: 4017332258388
• Order code / Manufacturer SKU: 750-451
• Manufacturer product status: Commercialized
• Equivalent to: 750451
• EAN code: 4017332258388
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-1|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-3|General approvals|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 66711/A0|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- KTL - Korea Testing Laboratory - KOSHA Article 34 / IEC60079-0 - certificate 21-KA4BO-0555X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4017332258388
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 12626-81-2|1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Lead titanium zirconium oxide (Pb(Ti,Zr)O3)
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 0485557f-27ea-4123-9a3b-de645cd5d37f
• SCIP notification number (Belgium): 449cdf43-b314-4607-b4a5-d7c754149d26
• SCIP notification number (Bulgaria): 5dfbbbbe-e64b-4e32-8108-9c9de8c6188e
• SCIP notification number (Czech Republic): 681d2b62-e9c5-457e-9c2a-f0ebd137c142
• SCIP notification number (Denmark): 3c0fe329-36bd-4923-91e4-6f31428c42d9
• SCIP notification number (Finland): e28d2b60-3243-4a30-9d8e-dce05b790b83
• SCIP notification number (France): 097b8d33-b054-4d32-b059-22c365abd9e5
• SCIP notification number (Germany): c547e5a3-e61f-4f86-bd16-6dd68bdc366a
• SCIP notification number (Hungary): 41d7e506-db95-431d-b73a-1761a936a781
• SCIP notification number (Italy): bcec32e5-50bb-4ebf-a3fe-9e114bb4487c
• SCIP notification number (Netherlands): 5b16312e-a088-470a-b6aa-96e5d01c2d53
• SCIP notification number (Poland): 5b2104e4-3b65-4548-a3c9-70c6bcac4fbb
• SCIP notification number (Romania): e8d067a4-94c4-4cb0-a3c1-be578c190f36
• SCIP notification number (Sweden): 025393a2-d5d2-4fcb-811f-a9b3ec8dd6cc

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3
• EMC immunity to interference: per EN 61000-6-1; EN 61000-6-2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Conformity marking: CE
• Fire load: 0.837MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 48g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69 mm / 2.717 inches
• Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Configuration options: WAGO-I/O-CHECK|CODESYS Library|e!COCKPIT
• Conversion time (typ.): 100ms
• Current consumption (5 V system supply): 110mA
• Data width: 8 x 16-bit data; 8 x 8-bit control/status (optional)
• Indicators: LED (1-8) green: Status R1 … R8; LED (9-16) red: Error R1 … R8
• Isolation: 500 V system/field
• Measurement error (25 °C): ≤ ±0.6 K (Pt100, Pt200, Pt500, Ni100, Ni120); ≤ ±0.2 K (Pt1000, Ni1000); ≤ ±0.3 Ω for resistance measurement
• Measuring current (typ.): ≤ 350 µA
• Number of analog inputs: 8
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Resolution (over entire range): 0.1 °C (over the entire range); 0.01 °C (–50 … 150 °C; Pt1000, Ni1000)
• Response time (max.): 3s
• Sensor connection: 8 x (2-wire)
• Sensor types: Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 (TK6180 + TK5000), Potentiometer: 10R … 1k2, 10R … 5k0
• Signal type: Resistance measurement|Potentiometer positions|Resistance measurement|Potentiometer positions
• Signal type (configurable): yes
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Temperature range: −200 … +850 °C (Pt100, Pt200, Pt500, Pt1000), −60 … +250 °C (Ni100, Ni1000), −80 … +260 °C (Ni120)
• Total number of channels (module): 8
