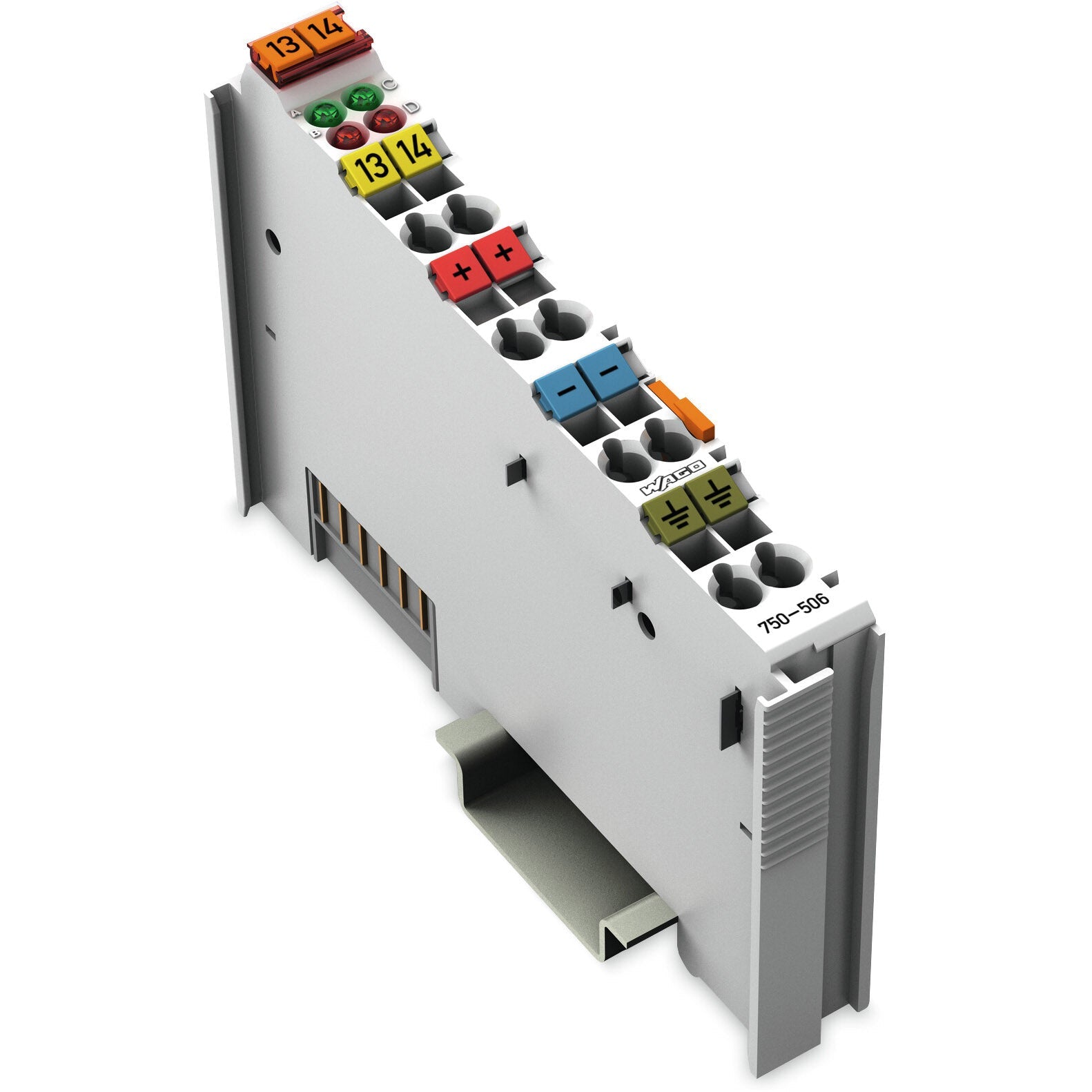

Wago - 750-506

Standard DC digital output slice unit module with diagnostics - WAGO (750 series) - 2DO; 24Vdc; 0.5A; Diagn - 2I/O [2DO (2 x digital outputs (24Vdc / 500mA; high-side switching; 2-wire / 3-wire / 4-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750506

Specifications

• Primary brand: WAGO
• Functions: Standard DC digital output slice unit module
• Design: diagnostics
• Supply voltage (DC): 5Vdc (supplied by system)|20.4-28.8Vdc adjustable suppl. to field sensing devices
• Frequency: 5kHz switching frequency
• Display: LED (A/C) green -- Status DO 1 / DO 2|LED (B/D) red -- Error DO 1 / DO 2
• Connection type: spring CAGE CLAMP connections
• Protection functions: short-circuit protection|wire-break protection
• Mounting mode: DIN-35 rail
• Digital outputs: 2 x digital outputs (24Vdc / 500mA; high-side switching; 2-wire / 3-wire / 4-wire)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 15mA (5Vdc; system supply)|15mA (field supply; no external load)
• Customs Tariff Number: 85371098990
• ETIM code: EC001599
• eClass code: 27-24-26-04
• Order code / Manufacturer SKU: 750-506
• Manufacturer product status: Commercialized
• Equivalent to: 750506
• EAN code: 4045454593230
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard DC digital output slice unit module - diagnostics - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^® (outputs)
• Connection type 1: Output
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|25550-51-0|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): ec14ca80-7e07-47d9-914c-933856b88e08
• SCIP notification number (Belgium): cb2b0d49-3571-4c18-aabe-b7723c10b37b
• SCIP notification number (Bulgaria): f6a1aa20-7bca-4604-ba32-5daaa2c24107
• SCIP notification number (Czech Republic): 1ae00c76-7f4e-4b5b-a551-a4c6cfc0f465
• SCIP notification number (Denmark): 545840be-5b12-485a-aea1-00b8d6fcfb7a
• SCIP notification number (Finland): 27a3bce6-3e87-4de9-ba05-a4de21f128bb
• SCIP notification number (France): 2ddb318c-3acd-4e81-825b-f9539c618476
• SCIP notification number (Germany): a7b539ea-e771-425c-8633-0da499246541
• SCIP notification number (Hungary): 41b326fa-a60d-4b25-8b20-f5e17c3b5d50
• SCIP notification number (Italy): 1e105c4c-35e8-4341-9544-849e710073f5
• SCIP notification number (Netherlands): 8e59006d-27ac-480c-9eef-3a69304e4a84
• SCIP notification number (Poland): a6503564-4126-45d8-9b4a-6ff02504c194
• SCIP notification number (Romania): c0d39d23-dbd4-4c65-92f1-391da5b0a703
• SCIP notification number (Sweden): 58a4505c-b697-48b6-8437-5543aea8025b

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.458MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 48g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: fixed

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Actuator connection: 2 x (2-wire, 3-wire, 4-wire)
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 15mA
• Current consumption, field supply (module with no external load): 15mA
• Diagnostics: Open circuit, short circuit, overload
• Indicators: LED (A, C) green: Status DO 1, DO 2; LED (B, D) red: Error DO 1, DO 2
• Inductive load switch-off energy dissipation (max.): 0.2J
• Input data width (internal) max.: 4bits
• Isolation: 500 V system/field
• Load type: Resistive, inductive, lamp load
• Number of digital outputs: 2
• Number of incoming power jumper contacts: 3
• Number of outgoing power jumper contacts: 3
• Open-circuit detection: 9.5mA
• Output characteristic: high-side switching
• Output current: short-circuit-protected
• Output current per channel: 0.5A
• Output data width (internal) max.: 4bits
• Reverse voltage protection: No
• Short-circuit limitation (typ.) PWM: 1.5A
• Signal type: Digital
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Switching frequency (max.): 5 kHz
• Total number of channels (module): 2
