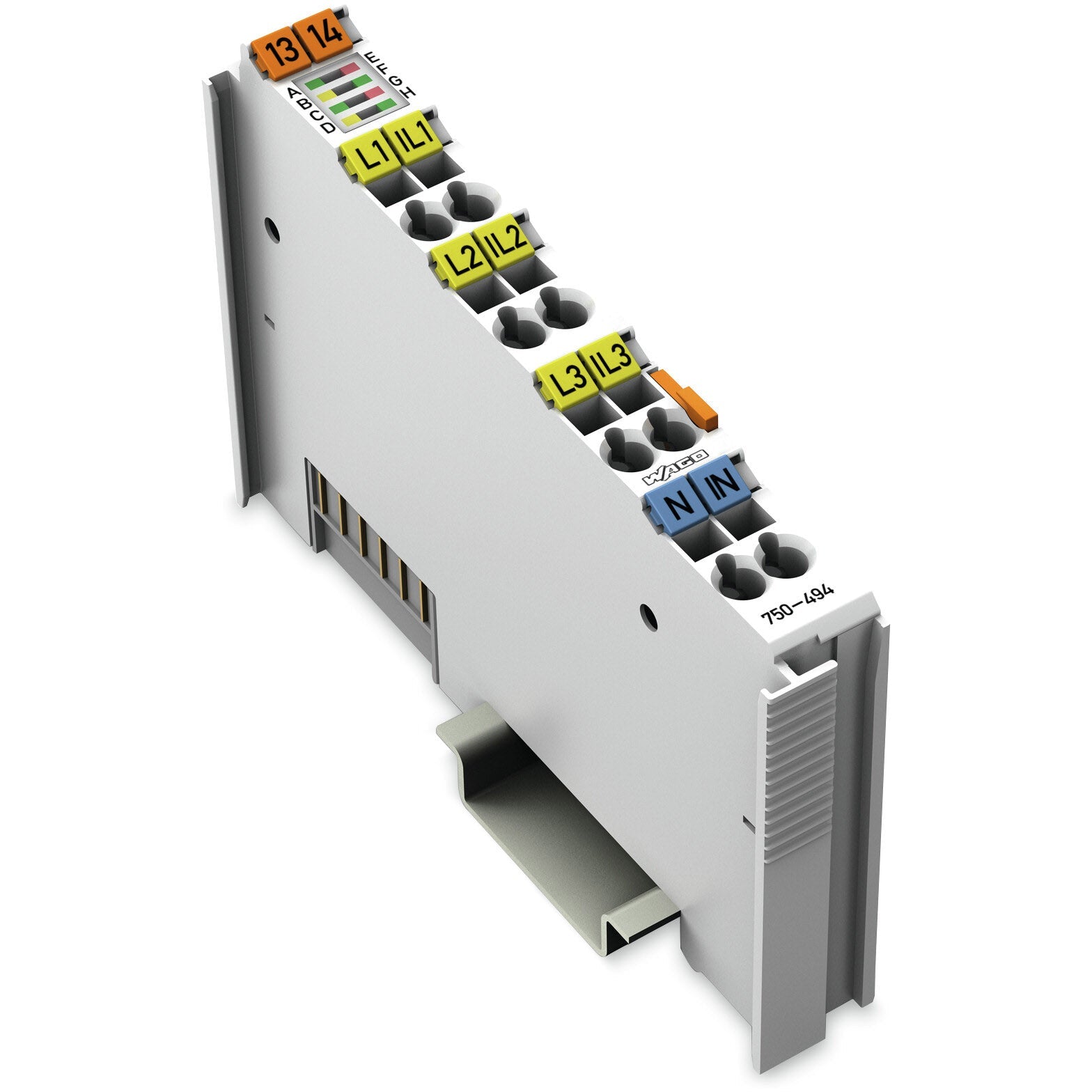

Wago - 750-494

Standard analog input slice unit module - for 3-phase pwr. measurement - WAGO (750 series) - 3-PHASE POM; 480VAC 1A - 6I/O [6AI (6 x analog inputs (3-phase pwr. measurement; 277Vac/Vdc / 480Vac / 1A / 45...65Hz / 24-bits conversion))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750494

Specifications

• Primary brand: WAGO
• Functions: Standard analog input slice unit module|Configuration options|- WAGO-I/O-CHECK|- CODESYS Library|- e!COCKPIT
• Design: for 3-phase pwr. measurement
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A) green -- Communication|LED (B-G) red -- Error L1/Override in Current Measurement Path (display)/Undervoltage in Voltage Measurement Path (display)/Error L2/Error L3/Override in Voltage Measurement Path (display)|LED (H) yellow -- Interchange in Phase Sequence L1-L2-L3
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 6 x analog inputs (3-phase pwr. measurement; 277Vac/Vdc / 480Vac / 1A / 45...65Hz / 24-bits conversion)
• Measurement accuracy: AC current/voltage; +-0.5% (measuring error)
• Dimensions: H100mm x W12mm x D67.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 100mA (5Vdc; system supply)
• GTIN code: 4050821548232
• eClass code: 27-24-26-05
• ETIM code: EC001596
• Customs Tariff Number: 85389099990
• Order code / Manufacturer SKU: 750-494
• Manufacturer product status: Commercialized
• Equivalent to: 750494
• EAN code: 4050821548232
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-3|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-05
• eCl@ss 9.0: 27-24-26-05
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4050821548232
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Bulgaria): 1bec5928-bed4-4802-bc3f-c6a7da938b3c
• SCIP notification number (Czech Republic): be0c6abd-7f4b-4dbf-b3f4-f58e3fc68eee

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.955MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 49.6g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Calculated values: Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD
• Configuration options: WAGO-I/O-CHECK|CODESYS Library|e!COCKPIT
• Current consumption (5 V system supply): 100mA
• Current path input resistance (typ.): 22 mΩ
• Data width: 2 x 128-bit data; 2 x 64-bit control/status
• Frequency range (harmonics analysis): 0 … 3300 Hz
• Frequency range (mains frequency): 45 … 65 Hz
• Indicators: LED (A) green: Communication; LED (B-G) red: Error L1, Override in Current Measurement Path (display), Undervoltage in Voltage Measurement Path (display), Error L2, Error L3, Override in Voltage Measurement Path (display); LED (H) yellow: Interchange in Phase Sequence L1-L2-L3
• Input voltage (max.): Current Inputs: 18 VAC
• Isolation: 4 kV system/field
• Limit frequency: 15.9kHz
• Measurement components: Evaluating
• Measurement current (max.): 1 A
• Measurement cycle time: Adjustable for the arithmetic mean value, min./max. values
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.5%
• Measurement method: True RMS measurement
• Number of measurement inputs: 6 (3 voltage measurement inputs, 3 current measurement inputs)
• Rated impulse withstand voltage: 4 kV
• Rated voltage: U_LN = 277 VAC; U_LL = 480 VAC
• Reference for measurement error: AC current/voltage
• Resolution [bit]: 24bits
• Signal form: Any periodic signals (considering the threshold frequencies)
• Signal type: Power measurement
• Supply voltage (system): 5 VDC; via data contacts
• Voltage path input resistance (typ.): 1072kΩ
