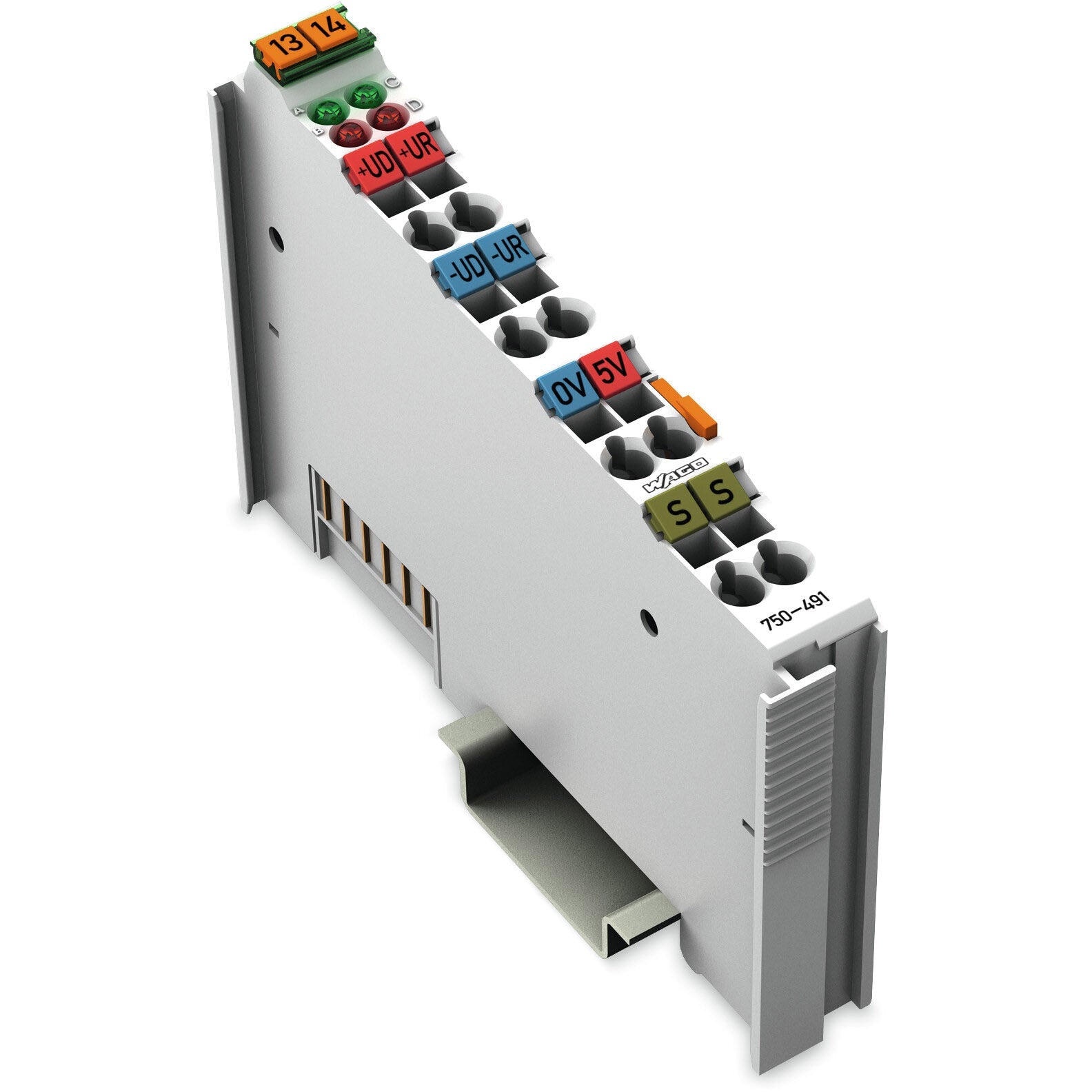

Wago - 750-491

Standard analog input slice unit module - for weighing / force measurement - WAGO (750 series) - 1AI; DMS - 1I/O [1AI (1 x analog input (ld. cell/str. gauge; -15...+15mV / 16-bits / 500ms conversion; with 50Hz filter))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750491

Specifications

• Primary brand: WAGO
• Functions: Standard analog input slice unit module
• Design: for weighing / force measurement
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A/C) green -- Function UD/Uref|LED (B/D) red -- Error UD/Uref
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 1 x analog input (ld. cell/str. gauge; -15...+15mV / 16-bits / 500ms conversion; with 50Hz filter)
• Measurement accuracy: UD; +-30μV; Uref; +-10mV (measuring error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 65mA (5Vdc; system supply)
• GTIN code: 4045454849351
• ETIM code: EC001596
• eClass code: 27-24-26-01
• Customs Tariff Number: 85389099990
• Order code / Manufacturer SKU: 750-491
• Manufacturer product status: Commercialized
• Equivalent to: 750491
• EAN code: 4045454849351
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454849351
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.085MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 53g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Conversion time (typ.): 500ms
• Current consumption (5 V system supply): 65mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Filter: 50Hz
• Indicators: LED (A, C) green: Function UD, Uref; LED (B, D) red: Error UD, Uref
• Internal resistance: > 200 kΩ (U_ref), > 1 MΩ (U_D)
• Isolation: 500 V system/field
• Measurement error: U_D: ±30 µV; U_ref: ±10 mV
• Number of analog inputs: 1
• Resolution [bit]: 16bits
• Sensor supply: 5 VDC
• Signal type: Resistor bridge (strain gauge)
• Signal voltage U_D: −15 … +15 mV
• Signal voltage U_ref: 2 … 6 V
• Supply voltage (system): 5 VDC; via data contacts
• Total number of channels (module): 1
