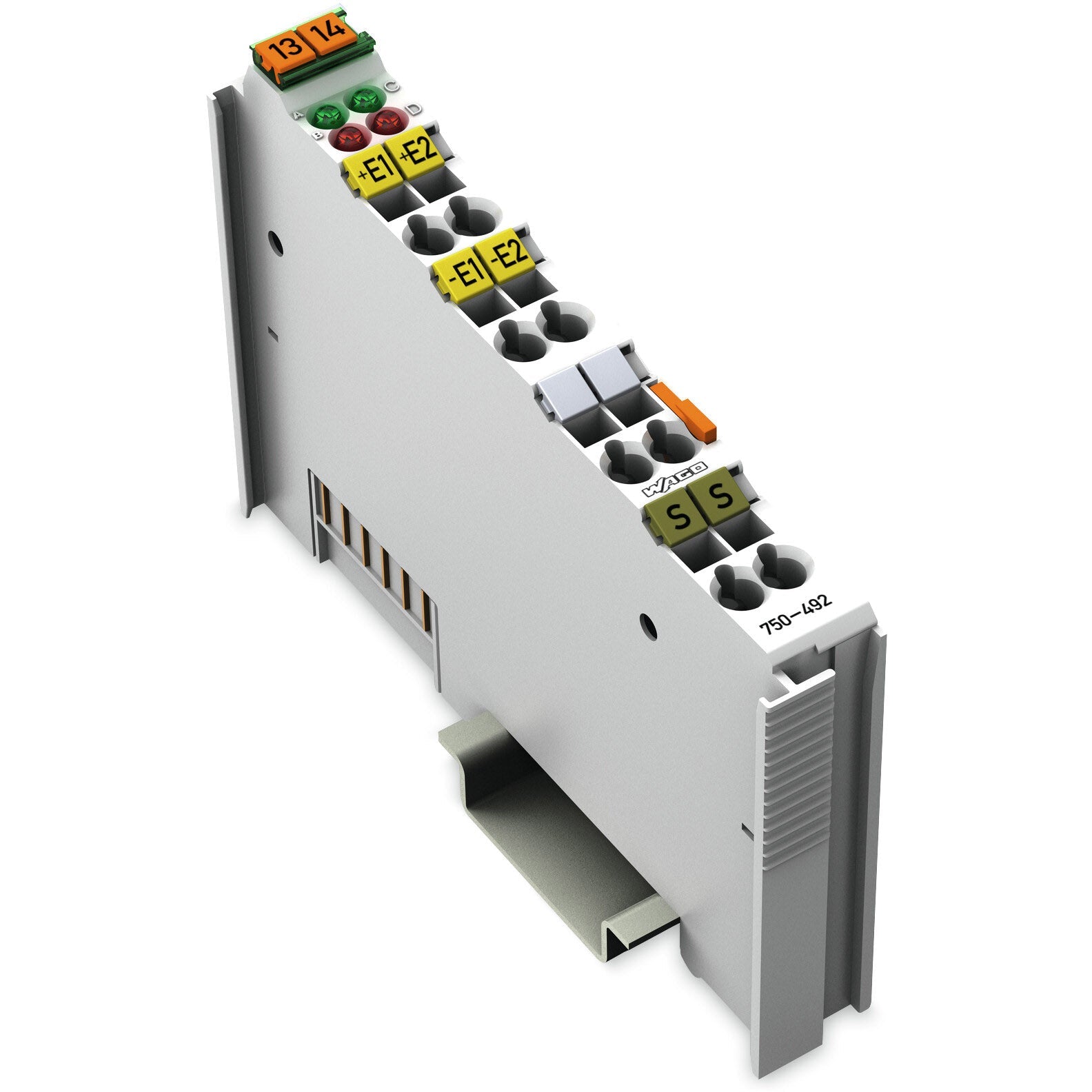

Wago - 750-492

Standard analog input slice unit module with time-synchronized measured value acquisition - WAGO (750 series) - 2AI; 4-20mA; Diff - 2I/O [2AI (2 x analog inputs (4-20mA; Differential; 13-bits / 1ms conversion; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750492

Specifications

• Primary brand: WAGO
• Functions: Standard analog input slice unit module
• Design: time-synchronized measured value acquisition
• Supply voltage (DC): 5Vdc (supplied by system)
• Display: LED (A/C) green -- Function AI 1 / AI 2|LED (B/D) red -- Error AI 1 / AI 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 2 x analog inputs (4-20mA; Differential; 13-bits / 1ms conversion; 2-wire)
• Measurement accuracy: +-0.05% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 80mA (5Vdc; system supply)
• Customs Tariff Number: 85389099990
• GTIN code: 4045454470296
• eClass code: 27-24-26-01
• ETIM code: EC001596
• Order code / Manufacturer SKU: 750-492
• Manufacturer product status: Commercialized
• Equivalent to: 750492
• EAN code: 4045454470296
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454470296
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 6 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 4a03cea2-891e-427a-8d5f-adb5c5c46d28
• SCIP notification number (Belgium): 7a23a592-bcaa-47a6-8207-9c3b74f88eb0
• SCIP notification number (Bulgaria): b3adbd6b-05a9-4994-80c6-6e5d36709d81
• SCIP notification number (Czech Republic): b1c26e98-fed6-4f46-a6bc-c7c04d583fd5
• SCIP notification number (Denmark): 07827259-9cbe-4ff4-880f-2d319481edfc
• SCIP notification number (Finland): 35b67ef2-2926-41fb-b6f9-e977a5479c04
• SCIP notification number (France): 665143e7-b7e0-4b33-a706-b30c1e3fcbd6
• SCIP notification number (Germany): 27b66c0f-fd5a-4f9c-9cab-9e845adee436
• SCIP notification number (Hungary): 3be21210-6a4e-4edb-b97f-bb52e0ef7577
• SCIP notification number (Italy): 2d6118dc-397d-48b6-886a-012f74dcb257
• SCIP notification number (Netherlands): e0ff15c3-b1bd-402c-8c1c-a35ac274d371
• SCIP notification number (Poland): f78bc6e7-dcd4-41d5-b47d-b17b433fb480
• SCIP notification number (Romania): 96455f8d-0c68-45c6-98ad-53091038460d
• SCIP notification number (Sweden): 2b2142e1-e6c2-4b18-8cb2-a937b9f7c5f6

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.034MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 51g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Admissible continuous overload: 30V
• Conversion method: SAR (Successive Approximation Register)
• Crosstalk attenuation: 80dB
• Current consumption (5 V system supply): 80mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
• Input filter: Low pass (1st order), f_G = 5 kHz
• Input resistance (max.): 270Ω
• Isolation: 500 V system/field or channel/channel
• Measured value acquisition: Time synchronous within the module
• Measurement error (reference temperature): 25°C
• Measurement error over entire temperature range: ≤ 0.4 %
• Measurement error, deviation (max.) from the upper-range value: 0.05%
• Measurement range overflow/underflow: Status byte and LED
• Monotonicity without error code: yes
• Number of analog inputs: 2
• Operating mode: Continuously sampling (default)
• Protective device: Non-linear limiting
• Resolution [bit]: 13bits
• Sampling delay (channel/channel): 1µs
• Sampling delay (module): 1ms
• Sampling duration: 5µs
• Sampling repetition time: 1ms
• Sensor connection: 2 x (2-wire)
• Signal characteristics: Differential
• Signal type: Current
• Signal type (current): 4 … 20 mADC
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value: 0.01%/K
• Total number of channels (module): 2
• Value of the least significant bit (LSB): 2.4 µA
