Wago - 750-363

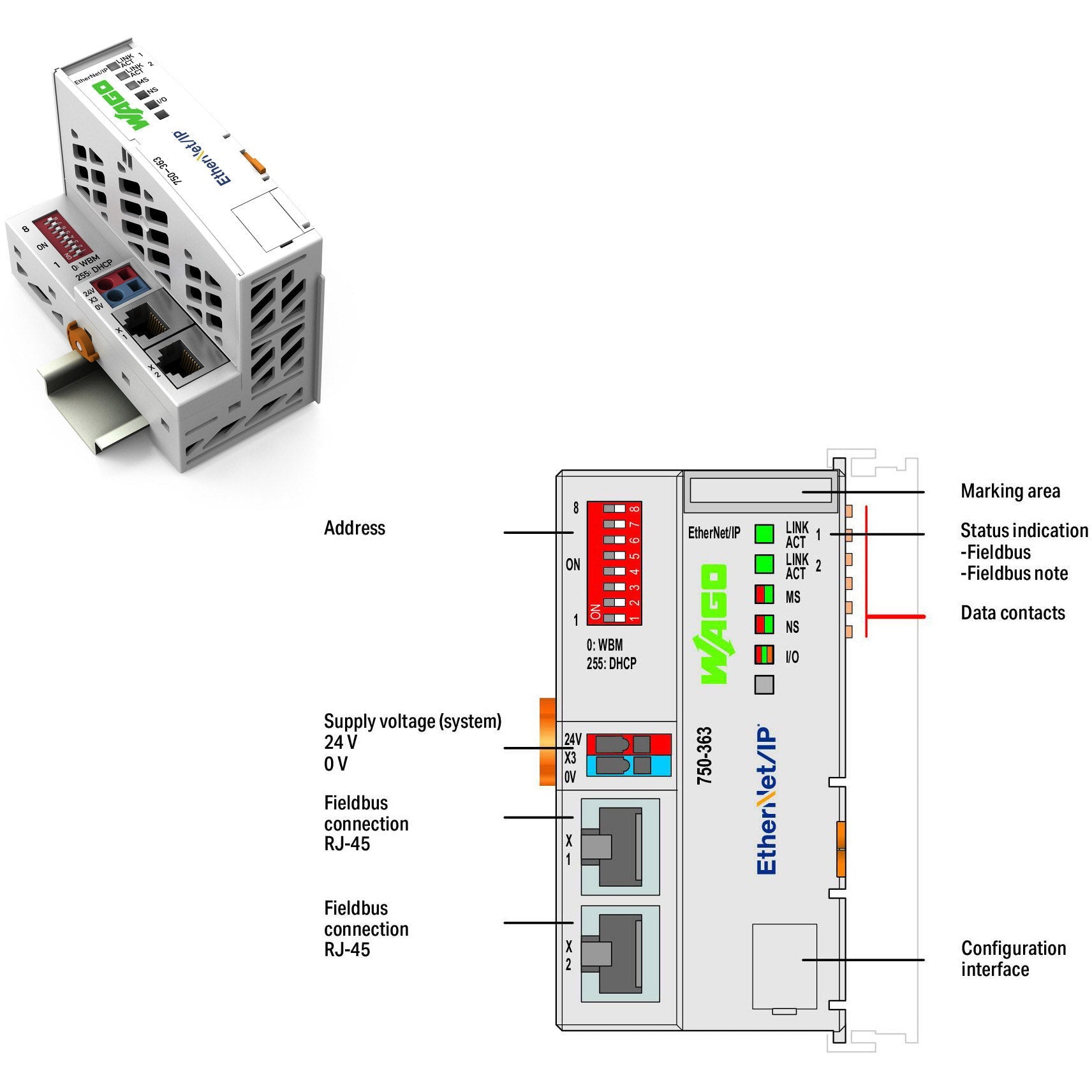

Fieldbus coupler / head (remote I/O (RIO) controller unit) - Eco version - WAGO (750 series) - FC EtherNet/IP - 250 x connections per node + 64 x field devices connection capability - with Ethernet/IP communication capability - supply voltage 24Vdc via wiring (system) - with 2 x RJ45 connectors (fieldbus) - DIN-35 rail mounting (49.5mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750363

Specifications

• Primary brand: WAGO
• Functions: Fieldbus coupler / head (remote I/O (RIO) controller unit)|HTTP|BootP|DHCP|DNS|SNTP|FTP|SNMP|Configuration options|- WAGO-I/O-CHECK|- Web-Based Management
• Design: Eco version
• Supply voltage (DC): 24Vdc via wiring (system)
• Display: LED (LINK/ACT) green -- Network connection via ports 1 ... 2|LED (MS; NS) red/green -- Status of node / network|LED (I/O) red/green/orange -- Status of local data bus
• Connection capacity: 250 x connections per node|64 x field devices
• Connection type: 2 x RJ45 connectors (fieldbus)|spring CAGE CLAMP (pwr. suppl. connections)|4-pin male connector (device configuration)
• Mounting mode: DIN-35 rail
• Speed: 10Mbit/s / 100Mbit/s
• Dimensions: H96.8mm x W49.5mm x D71.9mm
• Net Width (mm): 49.5mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 280mA (24Vdc; at nominal load)|350mA (5Vdc; system supply)|700mA (system supply)
• ETIM code: EC001603
• Customs Tariff Number: 85371091990
• Order code / Manufacturer SKU: 750-363
• Manufacturer product status: Commercialized
• Equivalent to: 750363
• EAN code: 4055143889827
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-FBC750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 66711/A0|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Fieldbus coupler / head (remote I/O (RIO) controller unit) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371091990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001603
• ETIM 9.0: EC001603
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: communication/fieldbus: EtherNet/^IPTM: 2 x RJ-45
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection technology: system supply: 2 x CAGE CLAMP^®
• Connection type 1: System supply
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 59c453fd-70c4-4e47-b49d-8defb2a7ccef
• SCIP notification number (Belgium): 1c66d48e-1702-40e1-bf5e-b8bdec11ddee
• SCIP notification number (Bulgaria): bd8609cf-ee48-45ea-a0d7-47b44ed2126c
• SCIP notification number (Czech Republic): 5ad1b193-b252-428e-86d7-3fa4f6062798
• SCIP notification number (Denmark): 5812fd50-e573-449e-a93a-b4f504284823
• SCIP notification number (Finland): 56990278-77b2-4a0b-b0b3-cf4a928add02
• SCIP notification number (France): 521957da-c3a3-4dad-8385-702e91ec72a5
• SCIP notification number (Germany): 92d75989-0819-4a59-b0d8-3e2cc5b6d2a2
• SCIP notification number (Hungary): fef60e02-fb4c-4dc4-8d09-04cd04fa138a
• SCIP notification number (Italy): 62a7f694-5ac0-4536-9f00-40fdf0f55727
• SCIP notification number (Netherlands): 53257eb2-f811-40ba-95c6-04f52ec82152
• SCIP notification number (Poland): 6d189cf5-f37e-41ab-97c0-d9b46d1f5fb8
• SCIP notification number (Romania): 2b719490-5c85-48ea-b7d0-8dd3a043cd90
• SCIP notification number (Sweden): fe1f1e91-711a-4335-a2e9-81f099e87b6b

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Conformity marking: CE
• Fire load: 1.439MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 104.1g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 71.9 mm / 2.831 inches
• Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
• Height: 96.8 mm / 3.811 inches
• Width: 49.5 mm / 1.949 inches

Technical data

• Communications: EtherNet/^IPTM
• Configuration options: WAGO-I/O-CHECK|Web-Based Management
• Current consumption (5 V system supply): 350mA
• ETHERNET protocols: HTTP(S)|BootP|DHCP|DNS|SNTP|FTP(S)|SNMP
• Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O) red/green/orange: Status of local data bus
• Input and output process image (fieldbus) max.: 1020 words/1020 words
• Input current (typ.) at nominal load (24 V): 280mA
• Isolation: 500 V system/field
• Number of modules per node (max.): 250
• Number of modules without a bus extension (max.): 64
• Power supply efficiency (typ.) at nominal load (24 V): 90%
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
• Total current (system supply): 700mA
• Transmission medium (communication/fieldbus): Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Transmission performance: Class D per EN 50173
• Transmission rate: 10/100 Mbit/s
