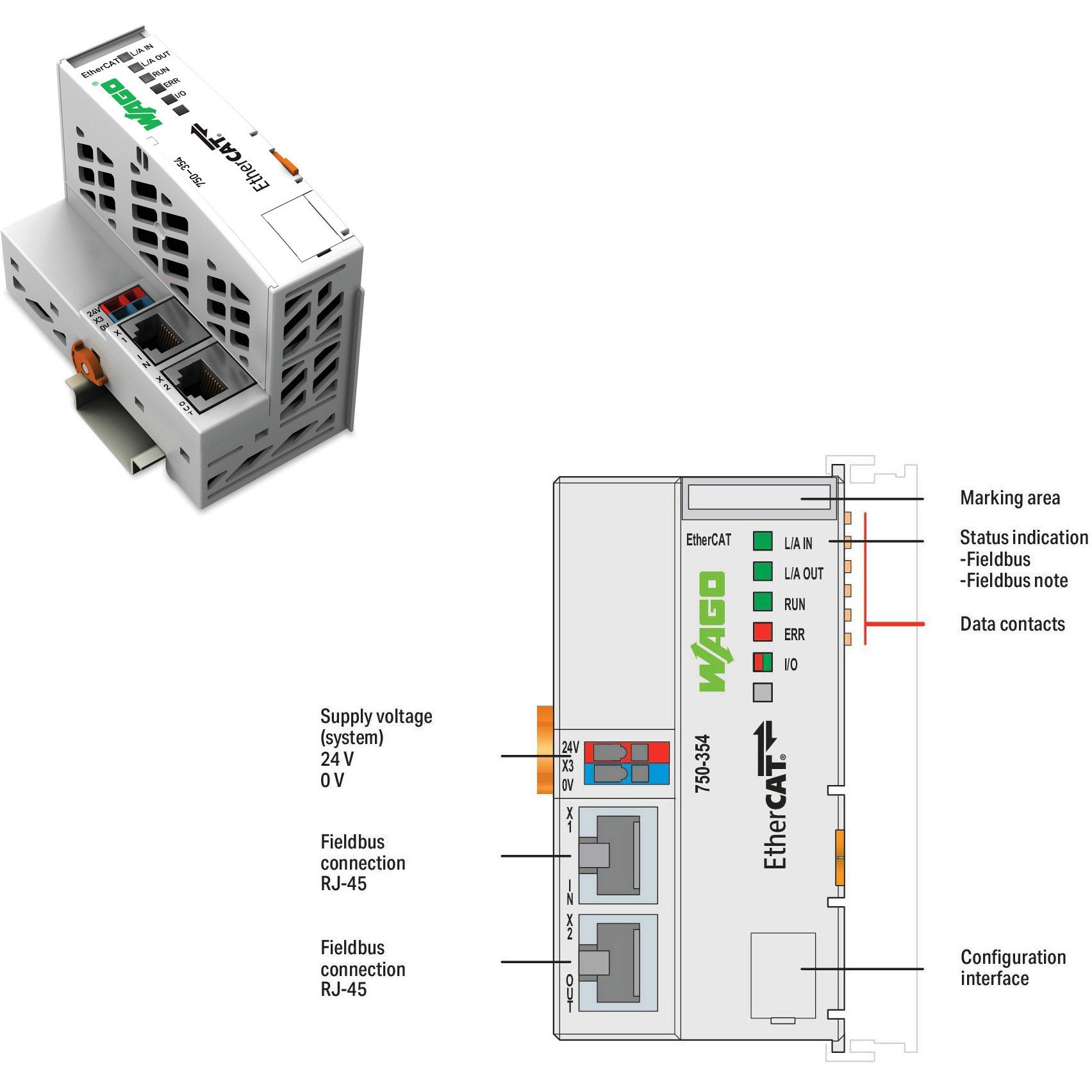

Fieldbus coupler / head (remote I/O (RIO) controller unit) - WAGO (750 series) - FC EtherCAT - 64 x connections per node connection capability - with EtherCAT communication capability - supply voltage 24Vdc via wiring (system) - with 2 x RJ45 connectors (fieldbus) - DIN-35 rail mounting (49.5mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750354

Specifications

• Primary brand: WAGO
• Functions: Fieldbus coupler / head (remote I/O (RIO) controller unit)
• Supply voltage (DC): 24Vdc via wiring (system)
• Connection capacity: 64 x connections per node
• Connection type: 2 x RJ45 connectors (fieldbus)|spring CAGE CLAMP (pwr. suppl. connections)|4-pin male connector (device configuration)
• Mounting mode: DIN-35 rail
• Speed: 100Mbit/s
• Dimensions: H96.8mm x W49.5mm x D71.9mm
• Net Width (mm): 49.5mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 250mA (24Vdc; at nominal load)|300mA (5Vdc; system supply)|700mA (system supply)
• ETIM code: EC001603
• eClass code: 27-24-26-07
• Customs Tariff Number: 85176200000
• Order code / Manufacturer SKU: 750-354
• Manufacturer product status: Commercialized
• Equivalent to: 750354
• EAN code: 4050821086819
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-3|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-FBC750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Fieldbus coupler / head (remote I/O (RIO) controller unit) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85176200000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-07
• eCl@ss 9.0: 27-24-26-07
• ETIM 8.0: EC001603
• ETIM 9.0: EC001603
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: communication/fieldbus: EtherCAT: 2 x RJ-45
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection technology: system supply: 2 x CAGE CLAMP^®
• Connection type 1: System supply
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Note (conductor cross-section): 14 AWG: THHN, THWN
• Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 12060-00-3|1303-86-2|1317-36-8|693-98-1|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|2-methylimidazole|Diboron trioxide|Lead|Lead monoxide|Lead titanium oxide (PbTiO3)
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 22ee26a1-447b-4ba7-8267-13d51677fa36
• SCIP notification number (Belgium): a2998941-30e6-435b-8f5f-8c622403232d
• SCIP notification number (Bulgaria): 281439ff-f828-471c-8190-72f315c3b32e
• SCIP notification number (Czech Republic): f657f45e-c15d-4aa0-9160-58b33462aa92
• SCIP notification number (Denmark): c03dcb87-ce23-400c-b85e-50967f7de35c
• SCIP notification number (Finland): 350bbcad-00c1-4a58-8b05-492f05b21aaa
• SCIP notification number (France): 1680cfaf-befc-446a-8aba-82a922f19e53
• SCIP notification number (Germany): 7b63a9d3-5033-45ae-a90d-9cca18c18e0c
• SCIP notification number (Hungary): ed271240-453b-4ae4-8bb5-9a8ea79d2aed
• SCIP notification number (Italy): 5b94ec8a-79ab-4a0e-b4a6-a8e1f3db54f6
• SCIP notification number (Netherlands): 5ffd0694-80a9-4004-aa62-7ec550154156
• SCIP notification number (Poland): 44709505-2226-4b16-b5ab-ca6fe1299a9e
• SCIP notification number (Romania): 11a73ef4-aac5-4571-b8d8-dc2166ec3bd0
• SCIP notification number (Sweden): 85bb0c6c-ea7e-4706-b6b7-fb2748af0e31

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-3
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.453MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 102.9g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 71.9 mm / 2.831 inches
• Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
• Height: 96.8 mm / 3.811 inches
• Width: 49.5 mm / 1.949 inches

Technical data

• Communications: EtherCAT^®
• Current consumption (5 V system supply): 300mA
• Input and output process image (fieldbus) max.: 1024 bytes/1024 bytes
• Input current (typ.) at nominal load (24 V): 250mA
• Isolation: 500 V system/field
• Number of modules per node (max.): 64
• Number of modules without a bus extension (max.): 64
• Power supply efficiency (typ.) at nominal load (24 V): 85%
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
• Total current (system supply): 700mA
• Transmission medium (communication/fieldbus): Shielded twisted pair S/FTP, F/FTP or SF/FTP; 100 Ω; Cat. 6
• Transmission performance: Class D per EN 50173
• Transmission rate: 100 Mbit/s
