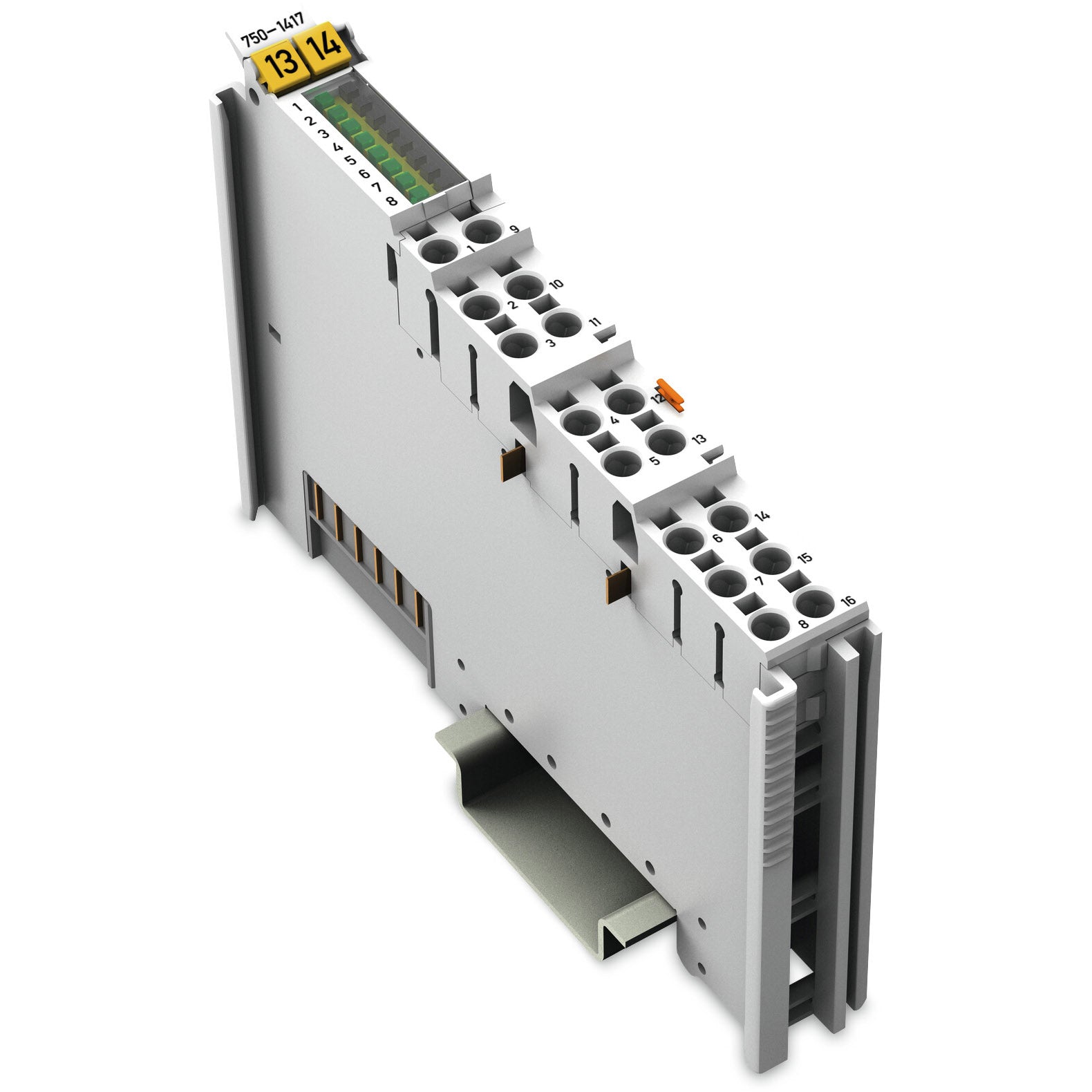

Wago - 750-1417

Standard DC digital input slice unit module - WAGO (750 series) - 8DI; 24Vdc; 3ms; LSS; 2-wire - 8I/O [8DI (8 x digital inputs (24Vdc transistor; low-side switching; 2-wire; 3ms filter))] - supply voltage 5Vdc (supplied by system) - with Push-in spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 7501417

Specifications

• Primary brand: WAGO
• Functions: Standard DC digital input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (1-8) green -- Status DI 1...DI 8
• Connection type: Push-in spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Digital inputs: 8 x digital inputs (24Vdc transistor; low-side switching; 2-wire; 3ms filter)|Digital inputs voltage ranges 19-24Vdc (OFF) / -3...+10Vdc (ON)
• Dimensions: H100mm x W12mm x D69mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 12mA (5Vdc; system supply)
• Customs Tariff Number: 85389099990
• ETIM code: EC001599
• eClass code: 27-24-26-04
• Order code / Manufacturer SKU: 750-1417
• Manufacturer product status: Commercialized
• Equivalent to: 7501417
• EAN code: 4050821085645
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 30389/C0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- KTL - Korea Testing Laboratory - KOSHA Article 34 / IEC60079-0 - certificate 20-KA4BO-0098X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (7(c)-I)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard DC digital input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP^® (inputs)
• Connection type 1: Input
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(c)-I
• SCIP notification number (Austria): 5e119bd5-a2a0-4483-b91b-49bb2a9de600
• SCIP notification number (Belgium): 36d2ee62-6a32-4c49-8355-6f52d0f2d3ca
• SCIP notification number (Bulgaria): c5a02294-f945-4705-883a-3a88edba55cf
• SCIP notification number (Czech Republic): 43c5eb82-0465-4dee-9632-7f17c9710af7
• SCIP notification number (Denmark): a5acbc22-8691-49b5-9cd7-bac8ffaeb5ed
• SCIP notification number (Finland): 952305c1-e505-43d6-9322-df5fc839fdfd
• SCIP notification number (France): 072fe63d-7bc9-456b-90df-3a562f2ad0de
• SCIP notification number (Germany): f3cf1d6c-0532-4b28-ae63-d77920819360
• SCIP notification number (Hungary): d8c4c16a-1c65-4140-b588-728cb273dcca
• SCIP notification number (Italy): 16b87c2f-0fbf-421e-9392-451b64ec3f36
• SCIP notification number (Netherlands): f0a84c10-2282-4fa3-a77e-7a19f4df6aab
• SCIP notification number (Poland): 654f4e63-9b7c-4f2a-9815-3ee4bc600d26
• SCIP notification number (Romania): 2346f5db-5761-45f0-b573-66969024ec21
• SCIP notification number (Sweden): 686536dd-c299-474f-938c-5d8096f49c2c

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Conformity marking: CE
• Fire load: 0.837MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 46.5g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: fixed

Physical data

• Depth: 69 mm / 2.717 inches
• Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 12mA
• Indicators: LED (1-8) green: Status DI 1 … DI 8
• Input characteristic: low-side switching
• Input current per channel for signal (0) max.: -2.7mA
• Input current per channel for signal (0) min.: -2.1mA
• Input current per channel for signal (0) typ.: 2.4mA
• Input current per channel for signal (1) typ.: -0.6mA
• Input data width (internal) max.: 8bits
• Input filter (digital): 3ms
• Isolation: 500 V system/field
• Number of digital inputs: 8
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Sensor connection: 8 x (2-wire)
• Sensor supply: 24 VDC
• Signal type: Digital
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Total number of channels (module): 8
• Voltage range for signal (0): (U_V - 5 V) … U_V DC
• Voltage range for signal (1): −3 VDC … (U_V - 15 V)
