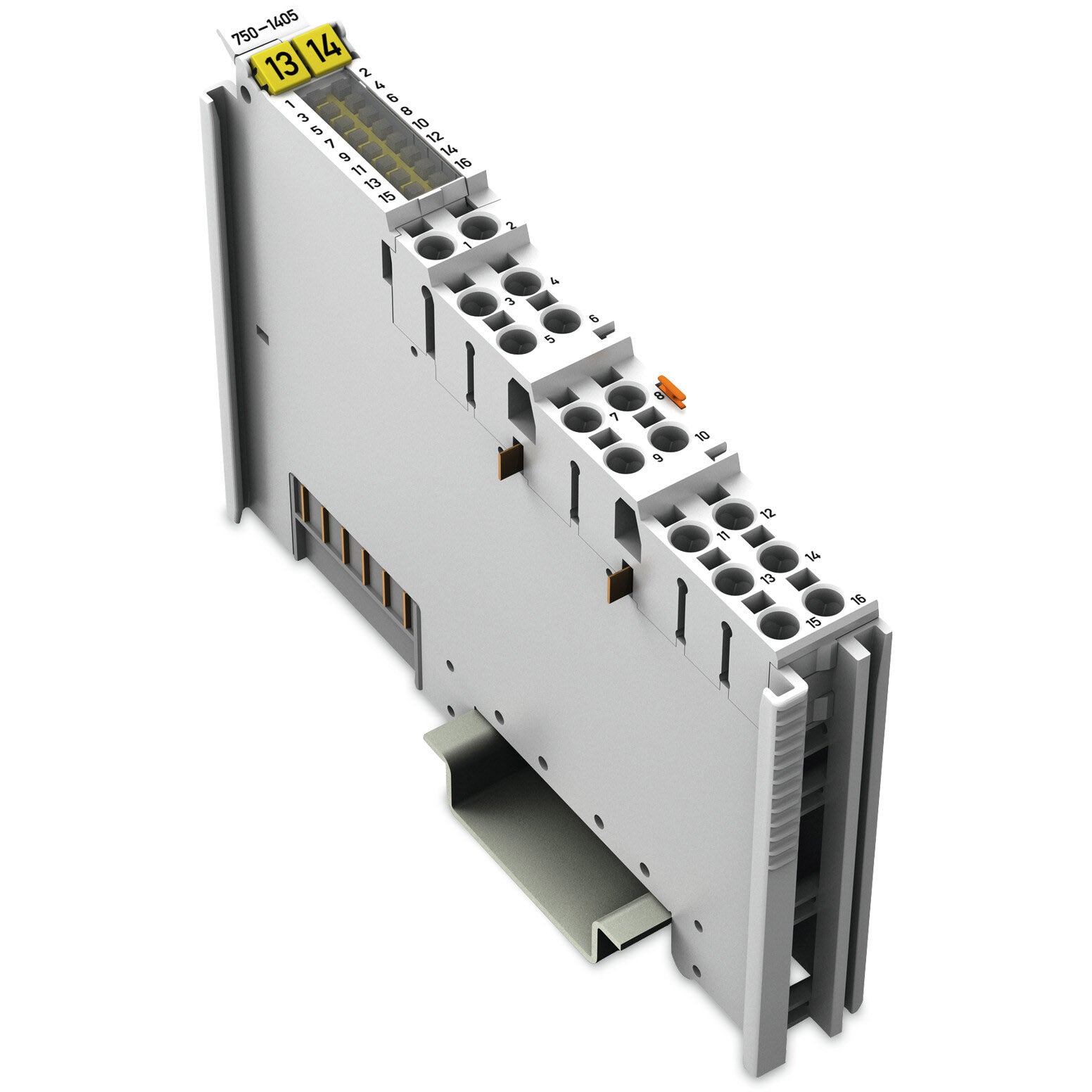

Wago - 750-1405

Standard DC digital input slice unit module - WAGO (750 series) - 16DI; 24Vdc; 3ms - 16I/O [16DI (16 x digital inputs (24Vdc transistor; high-side switching; 1-wire; 3ms filter))] - supply voltage 5Vdc (supplied by system) - with Push-in spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 7501405

Specifications

• Primary brand: WAGO
• Functions: Standard DC digital input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (1-16) green -- Status DI 1...DI 16
• Connection type: Push-in spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Digital inputs: 16 x digital inputs (24Vdc transistor; high-side switching; 1-wire; 3ms filter)|Digital inputs voltage ranges -3...+5Vdc (OFF) / 15-30Vdc (ON)
• Dimensions: H100mm x W12mm x D69mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 25mA (5Vdc; system supply)
• Customs Tariff Number: 85389099990
• ETIM code: EC001599
• eClass code: 27-24-26-04
• Order code / Manufacturer SKU: 750-1405
• Manufacturer product status: Commercialized
• Equivalent to: 7501405
• EAN code: 4045454905590
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 30389/C0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (7(c)-I)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard DC digital input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP^® (inputs)
• Connection type 1: Input
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(c)-I
• SCIP notification number (Austria): cbc4da15-2855-456e-b126-b3d1e41ded73
• SCIP notification number (Belgium): b2e6621d-45cb-4401-b769-cfd72228dc31
• SCIP notification number (Bulgaria): d6afedc8-cae1-44bb-becc-6c004301484f
• SCIP notification number (Czech Republic): 7413ebf8-0a57-4ca7-b25f-da17e4d96a81
• SCIP notification number (Denmark): 19f586a4-99ac-4888-a156-cc5324888c5f
• SCIP notification number (Finland): dccc2889-4b9e-4c99-9377-f629ac8cd83d
• SCIP notification number (France): e1b40844-f275-4dbd-a7d2-66e3bf0bee14
• SCIP notification number (Germany): cfaad3cd-7b39-4ba9-8975-b5e126d00a38
• SCIP notification number (Hungary): 1b458e07-dd90-4bc3-8d4f-80b8cc35f3cc
• SCIP notification number (Italy): fafda69e-2119-41a0-a0d1-1e72dd7b9694
• SCIP notification number (Netherlands): fb251372-8d08-459e-be3f-6f221cdde730
• SCIP notification number (Poland): 7a5ee9a2-4e27-466e-a8ac-4a095c75f0f9
• SCIP notification number (Romania): f214c9e6-517a-4acc-8aae-acd6010dddc1
• SCIP notification number (Sweden): 4e0950eb-efed-403d-aa8b-3df8f07043a2

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.014MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 47g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: fixed

Physical data

• Depth: 69 mm / 2.717 inches
• Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 25mA
• Indicators: LED (1-16) green: Status DI 1 … DI 16
• Input characteristic: high-side switching
• Input current per channel for signal (0) typ.: 0.6mA
• Input current per channel for signal (1) max.: 2.4mA
• Input current per channel for signal (1) min.: 2.1mA
• Input current per channel for signal (1) typ.: 2.3mA
• Input data width (internal) max.: 16bits
• Input filter (digital): 3ms
• Isolation: 500 V system/field
• Number of digital inputs: 16
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Sensor connection: 16 x (1-wire)
• Signal type: Digital
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Total number of channels (module): 16
• Voltage range for signal (0): −3 … +5 VDC
• Voltage range for signal (1): 15 … 30 VDC
