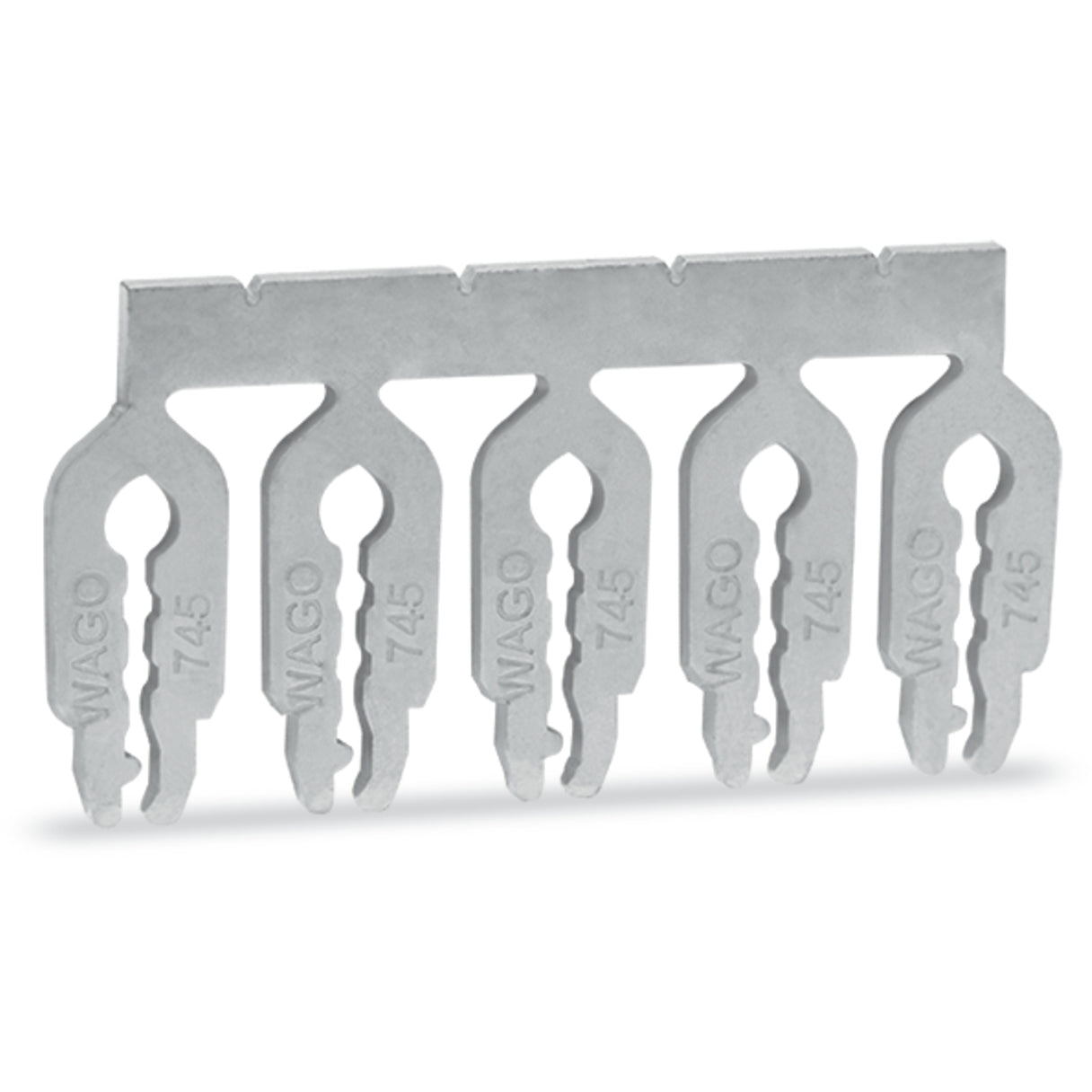

Wago - 745-684

WAGO component - equivalent to 745684

Specifications

• Primary brand: WAGO
• GTIN code: 4044918303552
• Order code / Manufacturer SKU: 745-684
• Manufacturer product status: Commercialized
• Equivalent to: 745684
• EAN code: 4044918303552
• Manufacturer description: Jumper; 4-way; unplated; Silver-colored
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Rated current -- 76A|Physical data - Pin spacing -- 20mm / 0.787"|Physical data - Jumper assignment -- 1-2-3-4|Mechanical data - Suitable -- for 745 Series (16mm2) and 2716 Series|Material data - Color -- Silver-colored|Material data - Contact material -- Copper alloy|Material data - Contact plating -- Tin|Material data - Weight -- 9.7g|Commercial data - Product Group -- 4 (Printed Circuit Connectors)|Commercial data - eClass 10.0 -- 27-14-11-40|Commercial data - eClass 9.0 -- 27-44-04-92|Commercial data - ETIM 9.0 -- EC000489|Commercial data - ETIM 8.0 -- EC000489|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 200 (50) pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- CH|Commercial data - GTIN -- 4044918303552|Commercial data - Customs tariff number -- 85366990990|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Switzerland
• Level 1 category: Electrical components

Commercial data

• Country of origin: CH
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-44-04-92
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4044918303552
• Packaging type: box
• Product Group: 4 (Printed Circuit Connectors)
• PU (SPU): 200 (50) pcs

Electrical data

• Ratings per IEC/EN - Rated current: 76A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: silver-colored
• Contact material: Copper alloy
• Contact plating: Tin
• Note (material data):
  Information on material specifications can be found here

• Weight: 9.7g

Mechanical data

• Suitable: for 745 Series (16 mm²) and 2716 Series

Physical data

• Jumper assignment: 1-2-3-4
• Pin spacing: 20 mm / 0.787 inches
