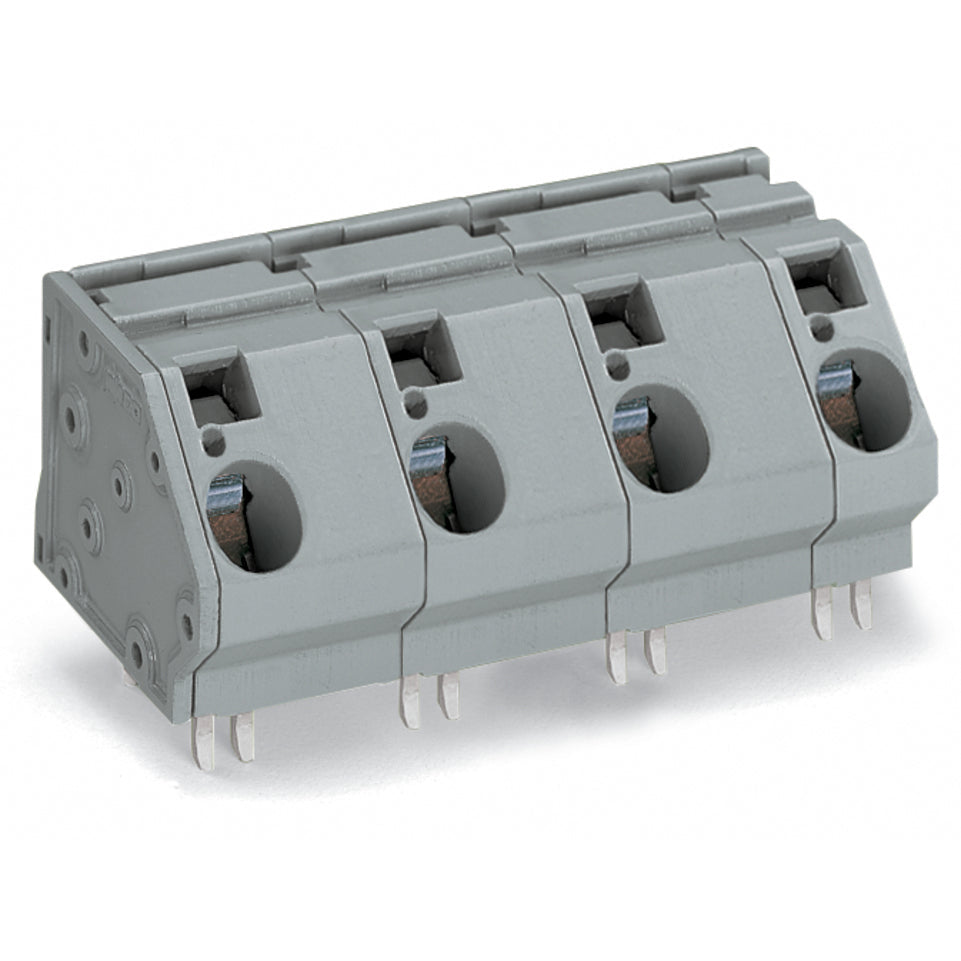

Wago - 745-655/006-000

WAGO component - equivalent to 745655006000

Specifications

• Primary brand: WAGO
• GTIN code: 4044918303095
• Order code / Manufacturer SKU: 745-655/006-000
• Manufacturer product status: Commercialized
• Equivalent to: 745655006000
• EAN code: 4044918303095
• Manufacturer description: PCB terminal block; 16mm2; Pin spacing 20mm; 5-pole; CAGE CLAMP; commoning option; 16mm2; gray
• Location of origin: Poland
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 12kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 12kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 12kV|Electrical data - Ratings per IEC/EN - Rated current -- 76A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 65A|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 65A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 65A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group C) -- 65A|Connection data - Clamping units -- 5|Connection data - Total number of potentials -- 5|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Number of jumper slots -- 1|Connection data - Connection 1 - Connection technology -- CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Solid conductor -- 0.2...16mm2 / 24...6 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.2...16mm2 / 24...6 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...10mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...10mm2|Connection data - Connection 1 - Strip length -- 12...13mm / 0.47...0.51"|Connection data - Connection 1 - Conductor connection direction to PCB -- 45°|Connection data - Connection 1 - Pole number -- 5|Physical data - Pin spacing -- 20mm / 0.787"|Physical data - Width -- 91.7mm / 3.61"|Physical data - Height -- 33.5mm / 1.319"|Physical data - Height from the surface -- 27mm / 1.063"|Physical data - Depth -- 33.4mm / 1.315"|Physical data - Solder pin length -- 6.5mm|Physical data - Solder pin dimensions -- 1.2 x 1.6mm|Physical data - Drilled hole diameter with tolerance -- 2.2 ^(+0.1)mm|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- over the entire terminal strip (in-line)|PCB contact - Number of solder pins per potential -- 4|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 1.103MJ|Material data - Weight -- 60.5g|Environmental requirements - Limit temperature range -- -60...+105°C|Commercial data - Product Group -- 4 (Printed Circuit Connectors)|Commercial data - eClass 10.0 -- 27-44-04-01|Commercial data - eClass 9.0 -- 27-44-04-01|Commercial data - ETIM 9.0 -- EC002643|Commercial data - ETIM 8.0 -- EC002643|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 8 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4044918303095|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Electrical components

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-04-01
• eCl@ss 9.0: 27-44-04-01
• ETIM 8.0: EC002643
• ETIM 9.0: EC002643
• GTIN: 4044918303095
• Packaging type: box
• Product Group: 4 (Printed Circuit Connectors)
• PU (SPU): 8 pcs

Connection data

• Clamping units: 5
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Conductor connection direction to PCB: 45°
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 10 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 10 mm²
• Connection 1 - Pole number: 5
• Connection 1 - Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Number of connection types: 1
• Number of jumper slots: 1
• Number of levels: 1
• Total number of potentials: 5

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 65A
• Ratings per CSA - Rated current CSA (Use Group C): 65A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 76A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 12kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 12kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 12kV
• Ratings per IEC/EN - Rated voltage (III/2): 1000V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 65A
• Ratings per UL - Rated current UL (Use Group C): 65A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +105 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 1.103MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 60.5g

Notes

• Variants:: Other pole numbers|Versions for Ex e II and Ex i|Other colors|Mixed-color PCB connector strips|Versions with mounting flanges|Direct marking|Solder pin length: 5 mm|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

• Number of solder pins per potential: 4
• PCB contact: THT
• Solder pin arrangement: over the entire terminal strip (in-line)

Physical data

• Depth: 33.4 mm / 1.315 inches
• Drilled hole diameter with tolerance: 2.2 ^(+0.1) mm
• Height: 33.5 mm / 1.319 inches
• Height from the surface: 27 mm / 1.063 inches
• Pin spacing: 20 mm / 0.787 inches
• Solder pin dimensions: 1.2 x 1.6 mm
• Solder pin length: 6.5mm
• Width: 91.7 mm / 3.61 inches
