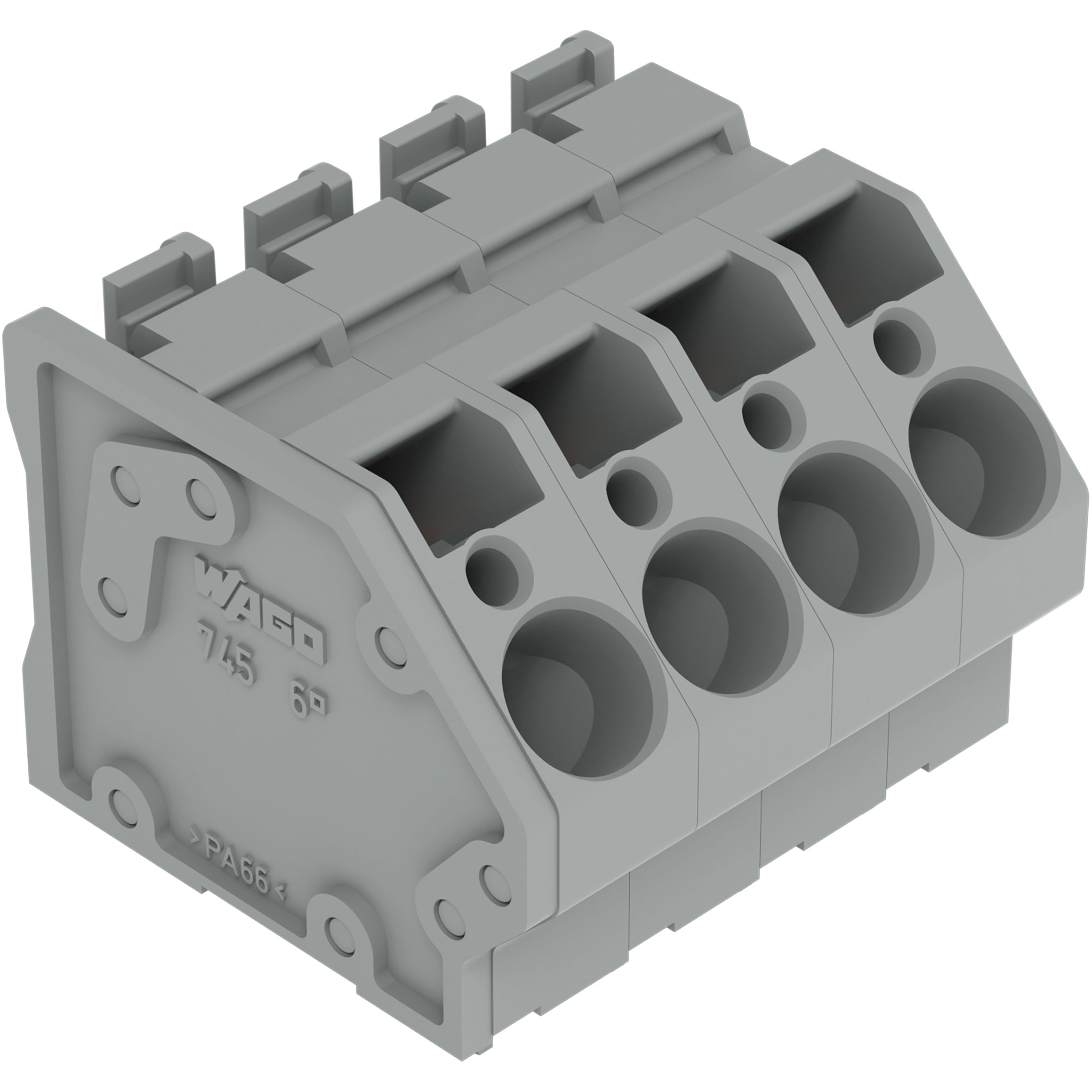

Wago - 745-304

WAGO component - equivalent to 745304

Specifications

• Primary brand: WAGO
• GTIN code: 4044918302135
• Order code / Manufacturer SKU: 745-304
• Manufacturer product status: Commercialized
• Equivalent to: 745304
• EAN code: 4044918302135
• Manufacturer description: PCB terminal block; 6mm2; Pin spacing 7.5mm; 4-pole; CAGE CLAMP; commoning option; gray
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 500V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 6kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 6kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 6kV|Electrical data - Ratings per IEC/EN - Rated current -- 41A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 30A|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 150V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 30A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 10A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 30A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C) -- 150V|Electrical data - Ratings per CSA - Rated current CSA (Use Group C) -- 30A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 10A|Connection data - Clamping units -- 4|Connection data - Total number of potentials -- 4|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Number of jumper slots -- 1|Connection data - Connection 1 - Connection technology -- CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Solid conductor -- 0.2...6mm2 / 24...10 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.2...6mm2 / 24...10 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...4mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...4mm2|Connection data - Connection 1 - Strip length -- 11...12mm / 0.43...0.47"|Connection data - Connection 1 - Conductor connection direction to PCB -- 45°|Connection data - Connection 1 - Pole number -- 4|Physical data - Pin spacing -- 7.5mm / 0.295"|Physical data - Width -- 31.6mm / 1.244"|Physical data - Height -- 27.5mm / 1.083"|Physical data - Height from the surface -- 23mm / 0.906"|Physical data - Depth -- 29.1mm / 1.146"|Physical data - Solder pin length -- 4.5mm|Physical data - Solder pin dimensions -- 1 x 1.4mm|Physical data - Drilled hole diameter with tolerance -- 1.8 ^(+0.1)mm|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- over the entire terminal strip (in-line)|PCB contact - Number of solder pins per potential -- 2|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.313MJ|Material data - Weight -- 19.7g|Environmental requirements - Limit temperature range -- -60...+105°C|Commercial data - Product Group -- 4 (Printed Circuit Connectors)|Commercial data - eClass 10.0 -- 27-44-04-01|Commercial data - eClass 9.0 -- 27-44-04-01|Commercial data - ETIM 9.0 -- EC002643|Commercial data - ETIM 8.0 -- EC002643|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 64 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4044918302135|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Poland
• Level 1 category: Electrical components

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-04-01
• eCl@ss 9.0: 27-44-04-01
• ETIM 8.0: EC002643
• ETIM 9.0: EC002643
• GTIN: 4044918302135
• Packaging type: Box
• Product Group: 4 (Printed Circuit Connectors)
• PU (SPU): 64 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Conductor connection direction to PCB: 45°
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 4 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 4 mm²
• Connection 1 - Pole number: 4
• Connection 1 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Strip length: 11 … 12 mm / 0.43 … 0.47 inches
• Number of connection types: 1
• Number of jumper slots: 1
• Number of levels: 1
• Total number of potentials: 4

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 30A
• Ratings per CSA - Rated current CSA (Use Group C): 30A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group C): 150V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 41A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 6kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 6kV
• Ratings per IEC/EN - Rated voltage (III/2): 630V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 30A
• Ratings per UL - Rated current UL (Use Group C): 30A
• Ratings per UL - Rated current UL (Use Group D): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 150V
• Ratings per UL - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +105 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.313MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 19.7g

Notes

• Variants:: Other pole numbers|Versions for Ex e II and Ex i|Other colors|Mixed-color PCB connector strips|Versions with mounting flanges|Direct marking|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

• Number of solder pins per potential: 2
• PCB contact: THT
• Solder pin arrangement: over the entire terminal strip (in-line)

Physical data

• Depth: 29.1 mm / 1.146 inches
• Drilled hole diameter with tolerance: 1.8 ^(+0.1) mm
• Height: 27.5 mm / 1.083 inches
• Height from the surface: 23 mm / 0.906 inches
• Pin spacing: 7.5 mm / 0.295 inches
• Solder pin dimensions: 1 x 1.4 mm
• Solder pin length: 4.5mm
• Width: 31.6 mm / 1.244 inches
