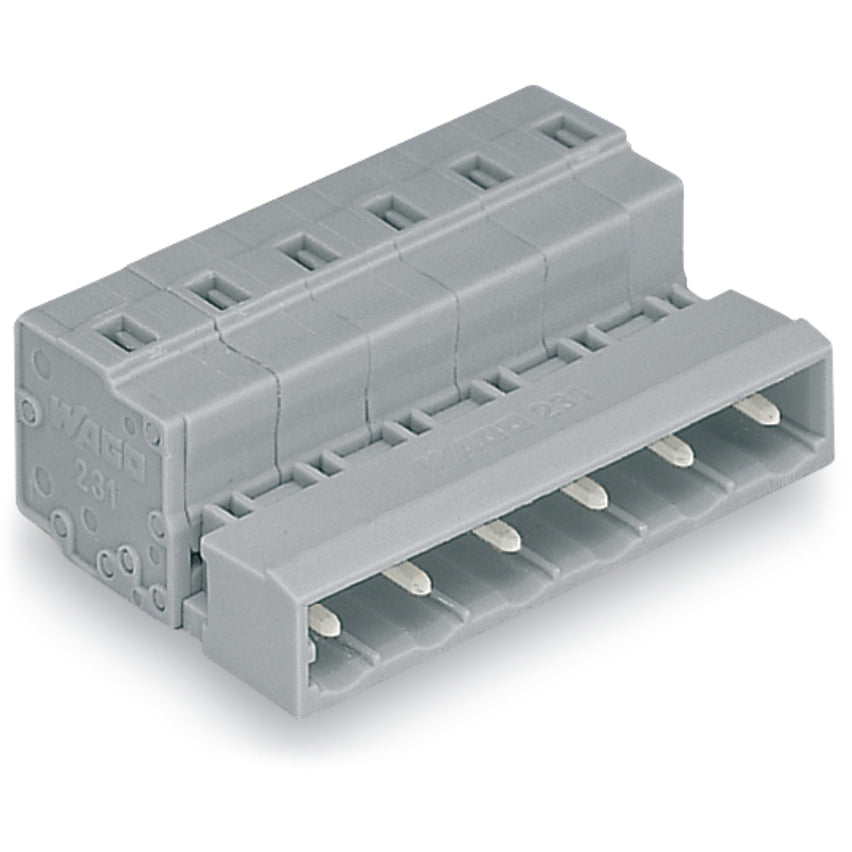

Wago - 731-613

WAGO component - equivalent to 731613

Specifications

• Primary brand: WAGO
• GTIN code: 4017332748032
• Order code / Manufacturer SKU: 731-613
• Manufacturer product status: Commercialized
• Equivalent to: 731613
• EAN code: 4017332748032
• Manufacturer description: 1-conductor male connector; CAGE CLAMP; 2.5mm2; Pin spacing 7.5mm; 13-pole; 2.5mm2; gray
• Manufacturer product specifications: Notes - Safety Information -- The MCS - MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended; these connectors must not be connected/disconnected when live or under load.When used as intended; these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins; which can be touched; are not live when unmated.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 500V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 6kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 6kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 6kV|Electrical data - Ratings per IEC/EN - Rated current -- 12A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 15A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 10A|Electrical data - Ratings per UL 1977 - Rated voltage (UL 1977) -- 600V|Electrical data - Ratings per UL 1977 - Rated current UL 1977 -- 15A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 15A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 10A|Connection data - Clamping units -- 13|Connection data - Total number of potentials -- 13|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Actuation direction 1 -- Operation parallel to conductor entry|Connection data - Connection 1 - Actuation direction 2 -- Operation perpendicular to conductor entry|Connection data - Connection 1 - Solid conductor -- 0.08...2.5mm2 / 28...12 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.08...2.5mm2 / 28...12 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...1.5mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...2.5mm2|Connection data - Connection 1 - Strip length -- 8...9mm / 0.31...0.35"|Connection data - Connection 1 - Pole number -- 13|Connection data - Connection 1 - Conductor entry direction to mating direction -- 0°|Physical data - Pin spacing -- 7.5mm / 0.295"|Physical data - Width -- 98.2mm / 3.866"|Physical data - Height -- 14.3mm / 0.563"|Physical data - Depth -- 27.5mm / 1.083"|Mechanical data - Variable coding -- Yes|Mechanical data - Anti-rotation protection -- Yes|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for conductor|Plug-in connection - Mismating protection -- No|Plug-in connection - Plugging without loss of pin spacing -- No|Plug-in connection - Locking of plug-in connection -- none|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.69MJ|Material data - Weight -- 23.8g|Environmental requirements - Limit temperature range -- -60...+100°C|Environmental requirements - Processing temperature -- -35...+60°C|Commercial data - Product Group -- 3 (Multi Conn. System)|Commercial data - eClass 10.0 -- 27-44-03-09|Commercial data - eClass 9.0 -- 27-44-03-09|Commercial data - ETIM 9.0 -- EC002638|Commercial data - ETIM 8.0 -- EC002638|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 10 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4017332748032|Commercial data - Customs tariff number -- 85366930000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: DE
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-03-09
• eCl@ss 9.0: 27-44-03-09
• ETIM 8.0: EC002638
• ETIM 9.0: EC002638
• GTIN: 4017332748032
• Packaging type: box
• Product Group: 3 (Multi Conn. System)
• PU (SPU): 10 pcs

Connection data

• Clamping units: 13
• Connection 1 - Actuation direction 1: Operation parallel to conductor entry
• Connection 1 - Actuation direction 2: Operation perpendicular to conductor entry
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Conductor entry direction to mating direction: 0°
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Connection 1 - Pole number: 13
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 13

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 15A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 12A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 6kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 6kV
• Ratings per IEC/EN - Rated voltage (III/2): 630V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 15A
• Ratings per UL - Rated current UL (Use Group D): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 300V
• Ratings per UL 1977 - Rated current UL 1977: 15A
• Ratings per UL 1977 - Rated voltage (UL 1977): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +100 °C
• Processing temperature: -35 … +60 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.69MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 23.8g

Mechanical data

• Anti-rotation protection: Yes
• Variable coding: Yes

Notes

• Safety Information: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers|Gold-plated or partially gold-plated contact surfaces|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Physical data

• Depth: 27.5 mm / 1.083 inches
• Height: 14.3 mm / 0.563 inches
• Pin spacing: 7.5 mm / 0.295 inches
• Width: 98.2 mm / 3.866 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Male connector/plug
• Locking of plug-in connection: none
• Mismating protection: No
• Plugging without loss of pin spacing: No
