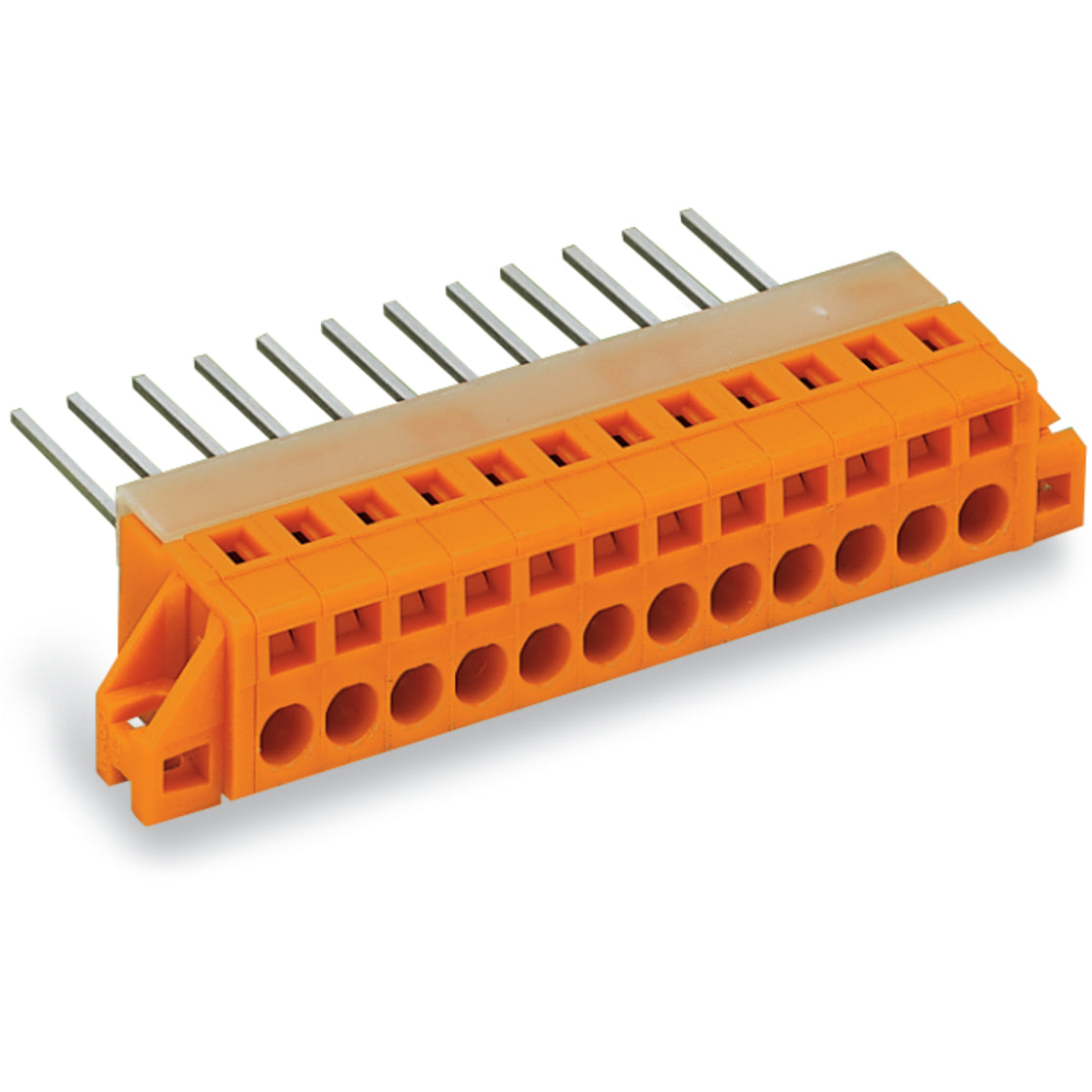

WAGO component - equivalent to 731167048000

Specifications

  • Primary brand: WAGO
  • GTIN code: 4044918270113
  • Order code / Manufacturer SKU: 731-167/048-000
  • Manufacturer product status: Commercialized
  • Equivalent to: 731167048000
  • EAN code: 4044918270113
  • Manufacturer description: Feedthrough terminal block; Conductor/wire-wrap connection; Plate thickness 1.5mm; 2.5mm2; Pin spacing 5.08mm; 7-pole; CAGE CLAMP; 2.5mm2; orange
  • Location of origin: Germany
  • Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 4kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 4kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 5A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 5A|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 150V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 5A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 5A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 5A|Connection data - Clamping units -- 7|Connection data - Total number of potentials -- 7|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Solid conductor -- 0.08...2.5mm2 / 28...14 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.08...2.5mm2 / 28...14 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...1.5mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...2.5mm2|Connection data - Connection 1 - Strip length -- 8...9mm / 0.31...0.35"|Connection data - Connection 1 - Pole number -- 7|Connection data - Connection 2 - Connection technology -- Wire-wrap pin|Physical data - Pin spacing -- 5.08mm / 0.2"|Physical data - Width -- 50.76mm / 1.998"|Physical data - Height -- 14.3mm / 0.563"|Physical data - Depth -- 15.5mm / 0.61"|Mechanical data - Housing sheet thickness -- 1.5...1.5mm / 0.059...0.059"|Mechanical data - Mounting type -- Mounting flange / Feed-through mounting / Panel mounting|Material data - Color -- orange|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (ECu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.185MJ|Material data - Weight -- 11.4g|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Processing temperature -- -35...+60°C|Commercial data - Product Group -- 3 (Multi Conn. System)|Commercial data - eClass 10.0 -- 27-14-11-06|Commercial data - eClass 9.0 -- 27-14-11-06|Commercial data - ETIM 9.0 -- EC001284|Commercial data - ETIM 8.0 -- EC001284|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 25 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4044918270113|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
  • Level 1 category: Electrical components

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85369010000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-06
  • eCl@ss 9.0: 27-14-11-06
  • ETIM 8.0: EC001284
  • ETIM 9.0: EC001284
  • GTIN: 4044918270113
  • Packaging type: box
  • Product Group: 3 (Multi Conn. System)
  • PU (SPU): 25 pcs

Connection data

  • Clamping units: 7
  • Connection 1 - Actuation type: Operating tool
  • Connection 1 - Connection technology: CAGE CLAMP®
  • Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Connection 1 - Pole number: 7
  • Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
  • Connection 2 - Connection technology: Wire-wrap pin
  • Number of connection types: 1
  • Number of levels: 1
  • Total number of potentials: 7

Electrical data

  • Ratings per CSA - Approvals per: CSA
  • Ratings per CSA - Rated current CSA (Use Group B): 5A
  • Ratings per CSA - Rated voltage CSA (Use Group B): 300V
  • Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
  • Ratings per IEC/EN - Nominal voltage (II/2): 630V
  • Ratings per IEC/EN - Nominal voltage (III/3): 320V
  • Ratings per IEC/EN - Rated current: 5A
  • Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
  • Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
  • Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
  • Ratings per IEC/EN - Rated voltage (III/2): 320V
  • Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
  • Ratings per UL - Approvals per: UL 1059
  • Ratings per UL - Rated current UL (Use Group B): 5A
  • Ratings per UL - Rated current UL (Use Group C): 5A
  • Ratings per UL - Rated current UL (Use Group D): 5A
  • Ratings per UL - Rated voltage UL (Use Group B): 300V
  • Ratings per UL - Rated voltage UL (Use Group C): 150V
  • Ratings per UL - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

  • Limit temperature range: -60 … +105 °C
  • Processing temperature: -35 … +60 °C

Material data

  • Clamping spring material: Chrome-nickel spring steel (CrNi)
  • Color: orange
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin
  • Fire load: 0.185MJ
  • Flammability class per UL94: V0
  • Insulation material (main housing): Polyamide (PA66)
  • Material group: I
  • Note (material data):
    Information on material specifications can be found here
  • Weight: 11.4g

Mechanical data

  • Housing sheet thickness: 1.5 … 1.5 mm / 0.059 … 0.059 inches
  • Mounting type: Mounting flange|Feed-through mounting|Panel mounting

Notes

  • Variants:: Other pole numbers|Other colors|Direct marking|Versions without mounting flanges|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Physical data

  • Depth: 15.5 mm / 0.61 inches
  • Height: 14.3 mm / 0.563 inches
  • Pin spacing: 5.08 mm / 0.2 inches
  • Width: 50.76 mm / 1.998 inches
