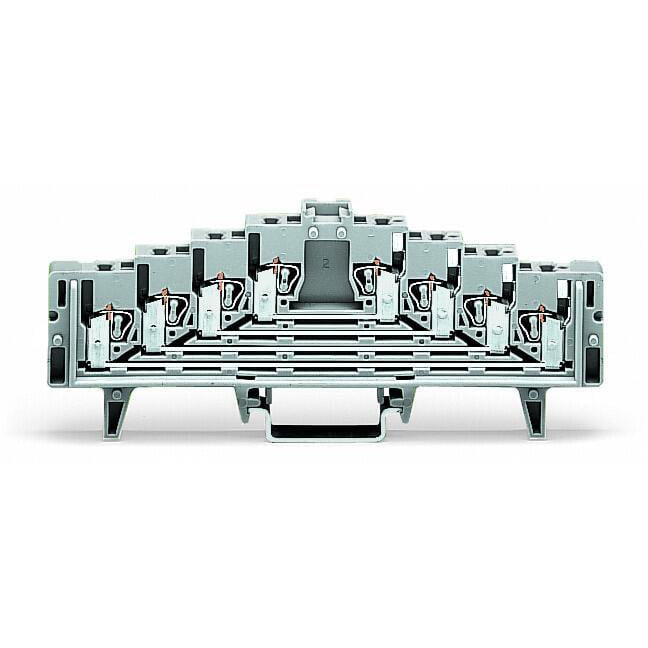

Wago - 727-230

Feed-through/thru terminal block for matrix patching with 4-decks/levels (quadruple-deck) + center marking slot - WAGO (727 series) - Gray - 4 feed-through poles (4P) / 16-wires (8 clamps + 8 clamps) (8+8) - for 0.08mm2...1.5mm2 / for #28AWG...#16AWG - Rated current 12A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15) mounting (7.62mm width) - equivalent to 727230

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block for matrix patching
• Design: 4-decks/levels (quadruple-deck)|center marking slot
• Poles: 4 feed-through poles (4P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 12A
• Color: Gray
• Connection capacity: 16-wires (8 clamps + 8 clamps) (8+8)
• Rated operating voltage (Ue): (IEC) 250V
• Rated impulse voltage (Uimp): (IEC) 4kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...1.5mm2 fine stranded or solid conductors|for #28AWG...#16AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H126mm x W7.62mm x D44.5mm
• Net Width (mm): 7.62mm
• Material: Polyamide (PA) 66
• ETIM code: EC000897
• Customs Tariff Number: 85369010000
• GTIN code: 4045454189433
• eClass code: 27-14-11-20
• Order code / Manufacturer SKU: 727-230
• Manufacturer product status: Commercialized
• Equivalent to: 727230
• EAN code: 4045454189433
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7485|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 70048845|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2192101.01|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block for matrix patching - 4-decks/levels (quadruple-deck) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4045454189433
• Packaging type: box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 16
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Strip length: 8 … 10 mm / 0.31 … 0.39 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 4
• Total number of potentials: 4

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 12A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.568MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 33.1g

Mechanical data

• Design: horizontal type
• Marking: plain
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 44.5 mm / 1.752 inches
• Height: 126 mm / 4.961 inches
• Width: 7.62 mm / 0.3 inches
