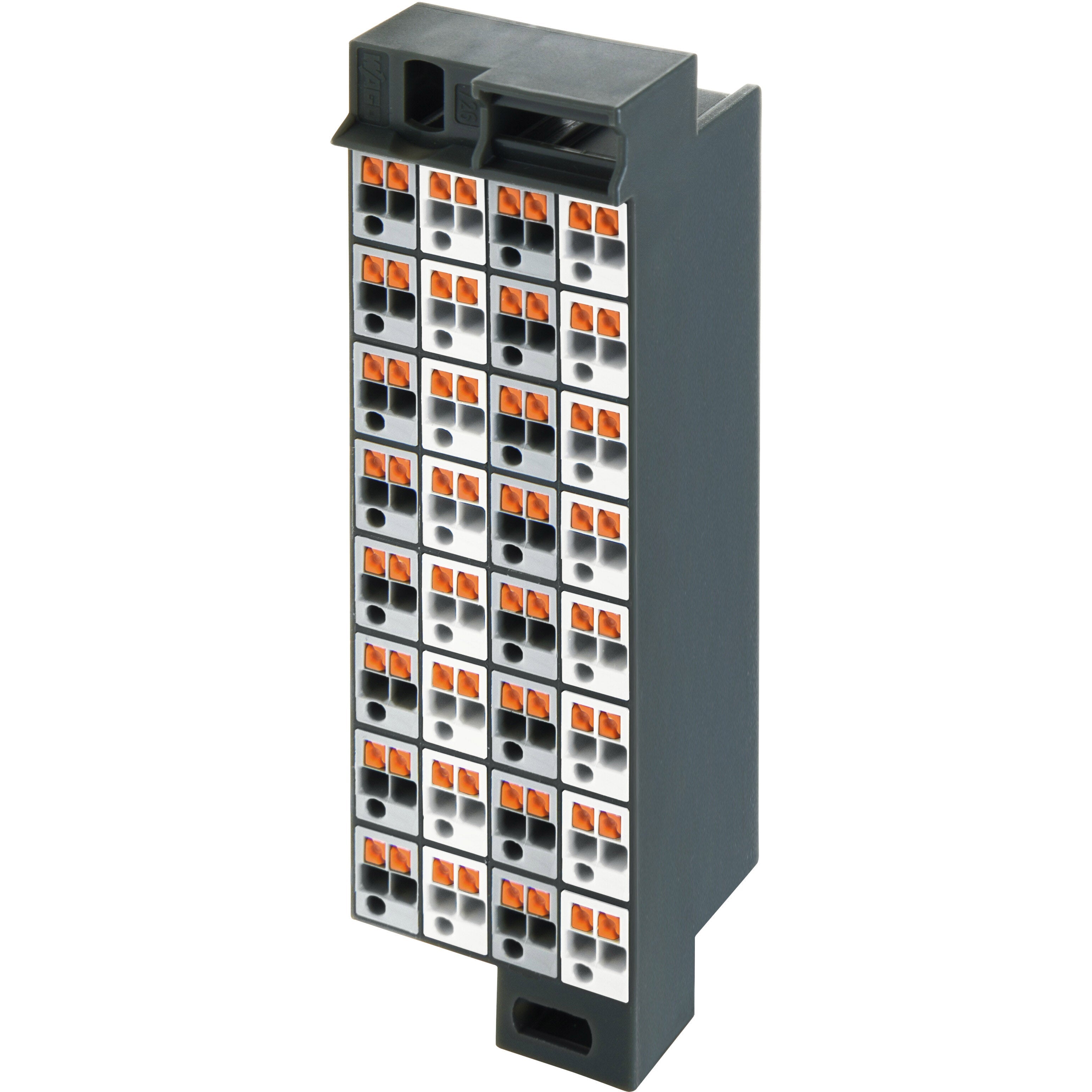

Plain matrix patchboard with 1-deck/level + btn. - WAGO (726 series) - Gray / White module - 32 feed-through poles (32P) (4 columns x 8 points x 2 wires each) / 64-wires (push-in) - for 0.08mm2...1.5mm2 / for #28AWG...#16AWG - Rated current 10A - with Push-in CAGE CLAMP spring connections - Surface mounting - equivalent to 726770

Specifications

• Primary brand: WAGO
• Functions: Plain matrix patchboard
• Design: 1-deck/level|btn.
• Poles: 32 feed-through poles (32P) (4 columns x 8 points x 2 wires each)
• Rated current: (IEC) 10A
• Color: Gray / White module
• Connection capacity: 64-wires (push-in)
• Rated operating voltage (Ue): (IEC) 800V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...1.5mm2 fine stranded conductors|for 0.2mm2...1.5mm2 solid conductors|for 0.25mm2...1mm2 fine stranded conductors with insulated ferrule|for #28AWG...#16AWG fine stranded conductors|for #24AWG...#16AWG solid conductors|for #22AWG...#18AWG fine stranded conductors with insulated ferrule
• Mounting mode: Surface
• Dimensions: H131.9mm x W34.6mm x D33.4mm
• Material: Polyamide (PA) 66
• eClass code: 27-24-26-08
• Customs Tariff Number: 85369010000
• ETIM code: EC001604
• GTIN code: 4055143293082
• Order code / Manufacturer SKU: 726-770
• Manufacturer product status: Commercialized
• Equivalent to: 726770
• EAN code: 4055143293082
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7986|- CSA - CSA Group - C22.2 - certificate 1101143|- KEMA/KEUR - DEKRA Certification B.V. - EN 60998 - certificate 71-127356|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Plain matrix patchboard - 1-deck/level - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-08
• eCl@ss 9.0: 27-24-26-08
• ETIM 8.0: EC001604
• ETIM 9.0: EC001604
• GTIN: 4055143293082
• Packaging type: box
• PU (SPU): 30 pcs

Connection data

• Connection 1 - Actuation type: Push-button
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Connection type 1: Page 1
• Connection 1 - Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm² / 22 … 18 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
• Connection 1 - Number of connection points: 2
• Connection 1 - Pole number: 32
• Connection 1 - Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Connection 1 - Strip length: 10 mm / 0.39 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Connection 2 - Connection type: Side 2
• Connection 2 - Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Connection 2 - Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm² / 22 … 18 AWG
• Connection 2 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
• Connection 2 - Number of connection points: 2
• Connection 2 - Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 10A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: dark gray
• Fire load: 1.472MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Module color: white/gray
• Note (material data):
  Information on material specifications can be found here

• Weight: 108.8g

Mechanical data

• Design: slimline
• Marking: plain

Physical data

• Depth: 33.4 mm / 1.315 inches
• Height: 131.9 mm / 5.193 inches
• Width: 34.6 mm / 1.362 inches
