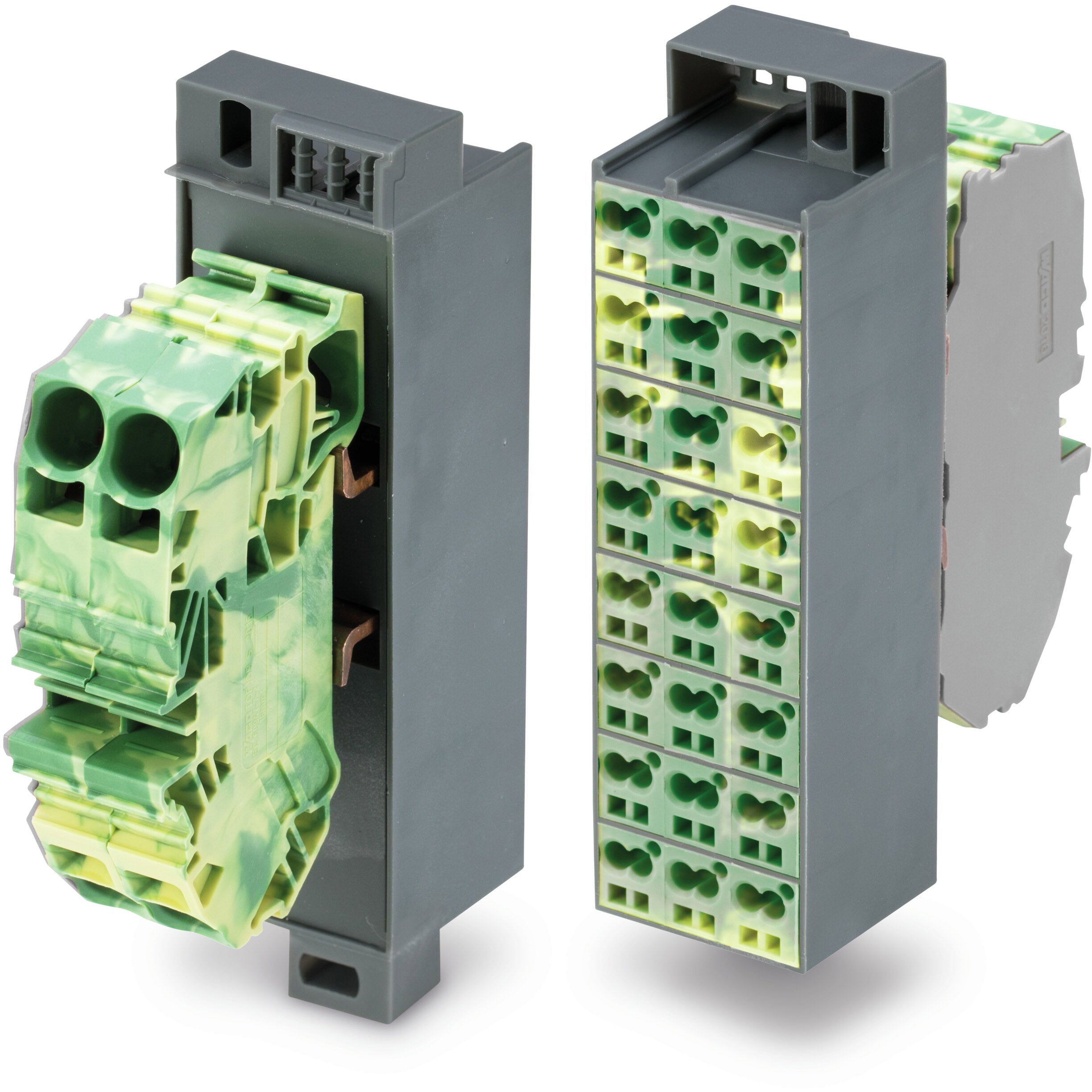

Wago - 726-672

Common potential matrix patchboard with 2 x input module + 1-deck/level + built-in end plate (terminal is closed on both sides) - with "1-24" marking - WAGO (726 series) - Green-Yellow module - 1 feed-through pole (1P) (3 columns x 8 points x 2 wires each) / 48-wires - for 0.2mm2...16mm2 / for #24AWG...#6AWG - with Push-in CAGE CLAMP spring connections + CAGE CLAMP spring connections - Surface mounting - equivalent to 726672

Specifications

• Primary brand: WAGO
• Functions: Common potential matrix patchboard
• Design: 2 x input module|1-deck/level|built-in end plate (terminal is closed on both sides)
• Poles: 1 feed-through pole (1P) (3 columns x 8 points x 2 wires each)
• Color: Green-Yellow module
• Connection capacity: 48-wires
• Connection type: Push-in CAGE CLAMP spring connections|CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...16mm2 fine stranded or solid conductors|for #24AWG...#6AWG fine stranded or solid conductors
• Mounting mode: Surface
• Dimensions: H132mm x W34.6mm x D80.7mm
• Material: Polyamide (PA) 66
• eClass code: 27-24-26-08
• GTIN code: 4055143623520
• ETIM code: EC001604
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 726-672
• Manufacturer product status: Commercialized
• Equivalent to: 726672
• EAN code: 4055143623520
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7986|- CSA - CSA Group - C22.2 No. 158 - certificate 1101143|- KEMA/KEUR - DEKRA Certification B.V. - EN 60998 - certificate 71-127356|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Marking: "1-24"
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Common potential matrix patchboard - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-08
• eCl@ss 9.0: 27-24-26-08
• ETIM 8.0: EC001604
• ETIM 9.0: EC001604
• GTIN: 4055143623520
• Packaging type: box
• PU (SPU): 10 (1) pcs

Connection data

• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Connection type 1: Page 1
• Connection 1 - Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Connection 1 - Number of connection points: 2
• Connection 1 - Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Connection 1 - Strip length: 16 … 17 mm / 0.63 … 0.67 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Side 2
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 2 - Number of connection points: 2
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 2 - Strip length: 8 … 10 mm / 0.31 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): b05bdaaa-65c2-4208-9db9-fa91653da9b6
• SCIP notification number (Belgium): 0f66997e-3bd2-475c-8827-c83d82545f38
• SCIP notification number (Bulgaria): e80a30f6-865a-4d75-8391-f00fe1da4f1a
• SCIP notification number (Czech Republic): 09274ebe-13df-4bd2-9435-25c11cc395b6
• SCIP notification number (Denmark): 287e75b2-fab2-4110-ac9b-a79507f3df3c
• SCIP notification number (Finland): 88b18a11-75c8-4fd0-b3e5-a3c5e913a972
• SCIP notification number (France): 07ff4e02-f75d-4969-8a4e-8e95f8125161
• SCIP notification number (Germany): bd00a3cb-adde-46e0-a3ae-34d52dcc2f73
• SCIP notification number (Hungary): 99c8cb8d-a012-4c04-b0a2-d98cb0e81002
• SCIP notification number (Italy): 1c7f2fdf-16a9-460c-82a0-8f6efc56cf43
• SCIP notification number (Netherlands): f63b1e4d-870c-4acf-b762-ee25b2465147
• SCIP notification number (Poland): 69cdc5db-4624-4d1b-9d81-24d28e526c86
• SCIP notification number (Romania): 19ff3947-7ae8-419d-add9-ad260bb853c8
• SCIP notification number (Sweden): 326c6268-46ff-4367-b421-7d0a16bcf516

Material data

• Color: dark gray
• Fire load: 1.225MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Module color: green-yellow
• Note (material data):
  Information on material specifications can be found here

• Weight: 264.5g

Mechanical data

• Design: slimline
• Marking: 1 … 24

Physical data

• Depth: 80.7 mm / 3.177 inches
• Height: 132 mm / 5.197 inches
• Width: 34.6 mm / 1.362 inches
