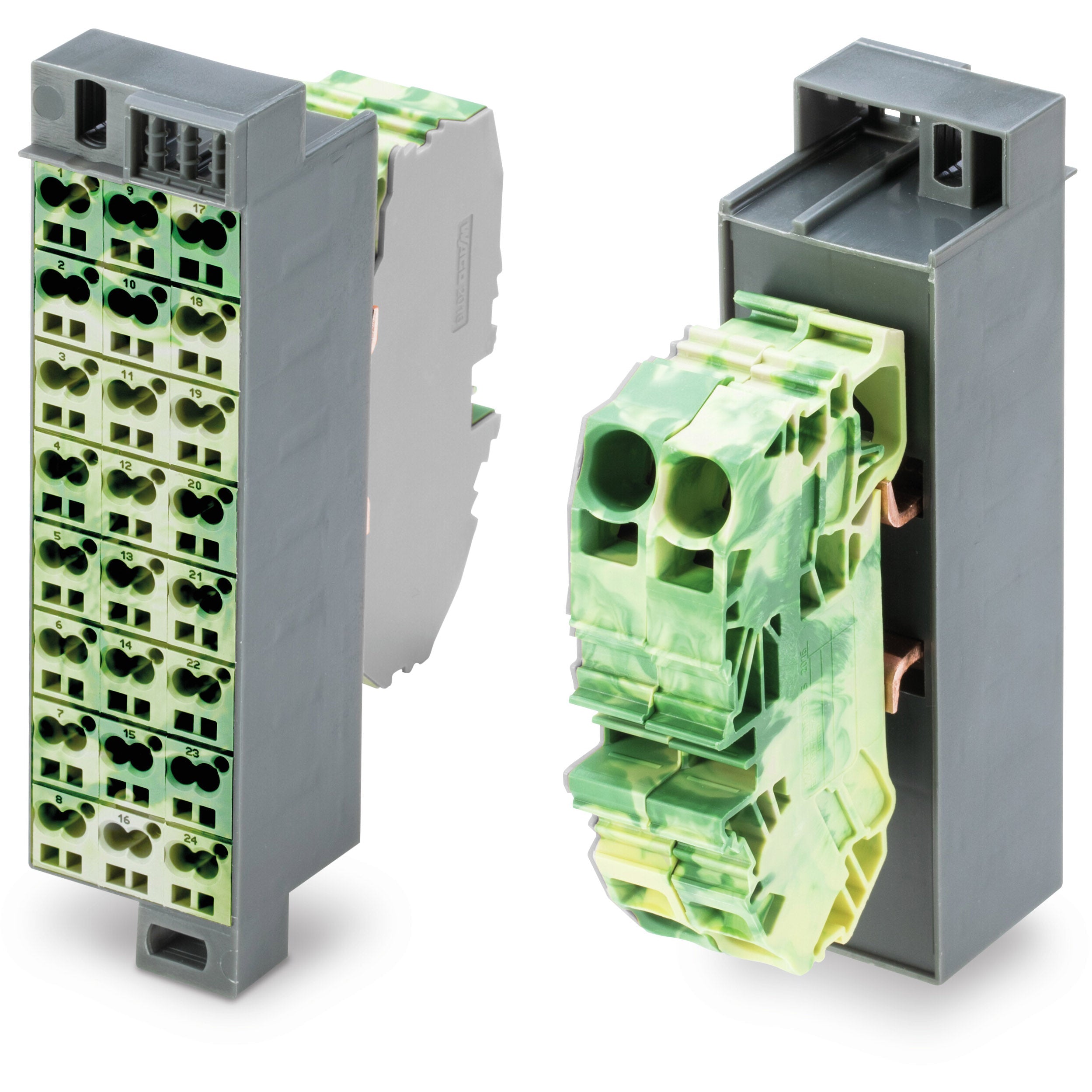

Wago - 726-622

Common potential matrix patchboard with 2 x input module + 1-deck/level + built-in end plate (terminal is closed on both sides) - with "1-24" marking - WAGO (726 series) - Green-Yellow module - 1 feed-through pole (1P) (3 columns x 8 points x 2 wires each) / 48-wires - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - with CAGE CLAMP spring connections + Push-in CAGE CLAMP spring connections - Surface mounting - equivalent to 726622

Specifications

• Primary brand: WAGO
• Functions: Common potential matrix patchboard
• Design: 2 x input module|1-deck/level|built-in end plate (terminal is closed on both sides)
• Poles: 1 feed-through pole (1P) (3 columns x 8 points x 2 wires each)
• Color: Green-Yellow module
• Connection capacity: 48-wires
• Connection type: CAGE CLAMP spring connections|Push-in CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#14AWG fine stranded or solid conductors
• Mounting mode: Surface
• Dimensions: H132mm x W34.6mm x D84.2mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• eClass code: 27-24-26-08
• GTIN code: 4055143623506
• ETIM code: EC001604
• Order code / Manufacturer SKU: 726-622
• Manufacturer product status: Commercialized
• Equivalent to: 726622
• EAN code: 4055143623506
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7986|- CSA - CSA Group - C22.2 No. 158 - certificate 1101143|- KEMA/KEUR - DEKRA Certification B.V. - EN 60998 - certificate 71-127356|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Marking: "1-24"
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Common potential matrix patchboard - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-08
• eCl@ss 9.0: 27-24-26-08
• ETIM 8.0: EC001604
• ETIM 9.0: EC001604
• GTIN: 4055143623506
• Packaging type: box
• PU (SPU): 10 (1) pcs

Connection data

• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Connection type 1: Page 1
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 1 - Number of connection points: 2
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 1 - Strip length: 8 … 10 mm / 0.31 … 0.39 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Connection 2 - Connection technology: Push-in CAGE CLAMP^®
• Connection 2 - Connection type: Side 2
• Connection 2 - Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Connection 2 - Number of connection points: 2
• Connection 2 - Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Connection 2 - Strip length: 16 … 17 mm / 0.63 … 0.67 inches

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 3a4498be-0882-4c5e-afaa-644673e4eb74
• SCIP notification number (Belgium): 513e64fc-458b-427b-aa24-c631a0251900
• SCIP notification number (Bulgaria): 8c3a823a-3e70-41ac-b1a2-6f2897811e64
• SCIP notification number (Czech Republic): 285efb2d-86a1-4cbb-b433-f68bdf7b104e
• SCIP notification number (Denmark): 2dd0fc81-4a64-4803-9d12-b99509fd240e
• SCIP notification number (Finland): d01d176f-93d8-4b3e-95c9-ab366e099c60
• SCIP notification number (France): 84e610de-17e1-4ea9-8e2f-c88c892fbc0e
• SCIP notification number (Germany): 76392a51-8242-4f36-9241-94acd998f93f
• SCIP notification number (Hungary): afc31401-436c-4d33-8158-7f335f4fae19
• SCIP notification number (Italy): b504566c-c3c9-4daf-9d68-0abe342685f0
• SCIP notification number (Netherlands): 475ec084-0f54-472b-bd3d-751f7e853dcd
• SCIP notification number (Poland): 2cdebd58-574d-4221-b027-a8a42aa33340
• SCIP notification number (Romania): 05277781-5ce1-4d0b-8204-019ddc5b072f
• SCIP notification number (Sweden): 14a22f6b-2b21-49d5-acd0-dc81fa060209

Material data

• Color: dark gray
• Fire load: 1.225MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Module color: green-yellow
• Note (material data):
  Information on material specifications can be found here

• Weight: 250.7g

Mechanical data

• Design: slimline
• Marking: 1 … 24

Physical data

• Depth: 84.2 mm / 3.315 inches
• Height: 132 mm / 5.197 inches
• Width: 34.6 mm / 1.362 inches
