Wago - 714-166

WAGO component - equivalent to 714166

Specifications

• Primary brand: WAGO
• GTIN code: 4045454859190
• Order code / Manufacturer SKU: 714-166
• Manufacturer product status: Commercialized
• Equivalent to: 714166
• EAN code: 4045454859190

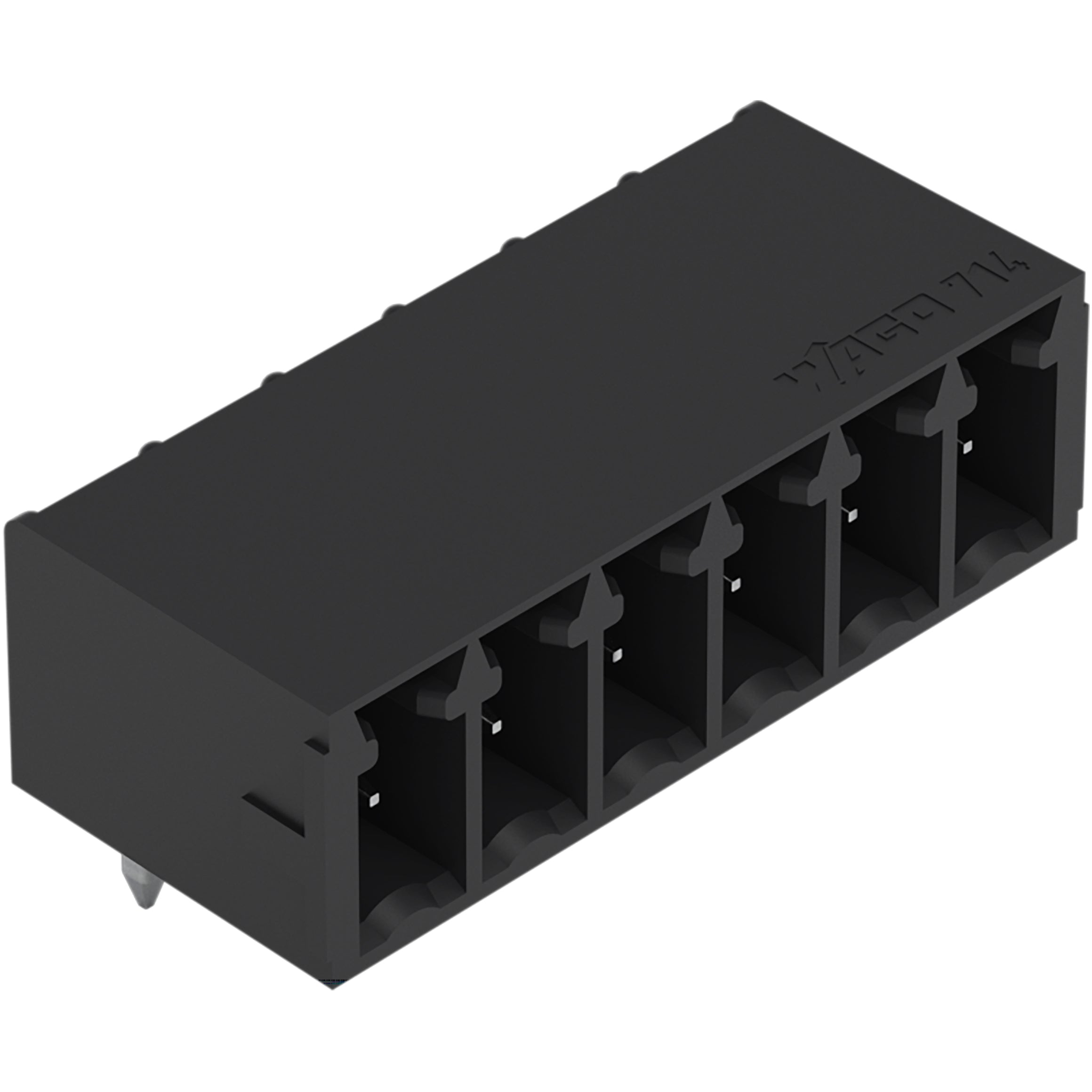

• Manufacturer description: THT male header; 0.8 x 0.8mm solder pin; angled; Pin spacing 3.5mm; 6-pole; black
• Manufacturer product specifications: Notes - Safety Information -- The MCS - MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended; these connectors must not be connected/disconnected when live or under load.When used as intended; these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins; which can be touched; are not live when unmated.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 160V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 2.5kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 160V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 2.5kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 2.5kV|Electrical data - Ratings per IEC/EN - Rated current -- 8A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 150V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 8A|Connection data - Total number of potentials -- 6|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Pole number -- 6|Physical data - Pin spacing -- 3.5mm / 0.138"|Physical data - Width -- 22.4mm / 0.882"|Physical data - Height -- 10.3mm / 0.406"|Physical data - Height from the surface -- 6.9mm / 0.272"|Physical data - Depth -- 9.7mm / 0.382"|Physical data - Solder pin length -- 3.4mm|Physical data - Solder pin dimensions -- 0.8 x 0.8mm|Physical data - Drilled hole diameter with tolerance -- 1.2 ^(+0.1)mm|Mechanical data - Variable coding -- Yes|Mechanical data - Anti-rotation protection -- Yes|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for PCB|Plug-in connection - Mismating protection -- No|Plug-in connection - Plugging without loss of pin spacing -- No|Plug-in connection - Mating direction to the PCB -- 0°|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- over the entire male connector (in-line)|PCB contact - Number of solder pins per potential -- 1|Material data - Color -- black|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyphthalamide (PPA GF)|Material data - Flammability class per UL94 -- V0|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.026MJ|Material data - Weight -- 1.3g|Environmental requirements - Limit temperature range -- -60...+100°C|Environmental requirements - Processing temperature -- -35...+60°C|Commercial data - Product Group -- 3 (Multi Conn. System)|Commercial data - eClass 10.0 -- 27-44-04-02|Commercial data - eClass 9.0 -- 27-44-04-01|Commercial data - ETIM 9.0 -- EC002637|Commercial data - ETIM 8.0 -- EC002637|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 200 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4045454859190|Commercial data - Customs tariff number -- 85366930000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Germany
• Level 1 category: Electrical components

Commercial data

• Country of origin: DE
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-04-02
• eCl@ss 9.0: 27-44-04-01
• ETIM 8.0: EC002637
• ETIM 9.0: EC002637
• GTIN: 4045454859190
• Packaging type: box
• Product Group: 3 (Multi Conn. System)
• PU (SPU): 200 pcs

Connection data

• Connection 1 - Pole number: 6
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 6

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 320V
• Ratings per IEC/EN - Nominal voltage (III/3): 160V
• Ratings per IEC/EN - Rated current: 8A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 2.5kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 2.5kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 2.5kV
• Ratings per IEC/EN - Rated voltage (III/2): 160V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 8A
• Ratings per UL - Rated voltage UL (Use Group B): 150V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +100 °C
• Processing temperature: -35 … +60 °C

Material data

• Color: black
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.026MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyphthalamide (PPA GF)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.3g

Mechanical data

• Anti-rotation protection: Yes
• Variable coding: Yes

Notes

• Safety Information: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

• Number of solder pins per potential: 1
• PCB contact: THT
• Solder pin arrangement: over the entire male connector (in-line)

Physical data

• Depth: 9.7 mm / 0.382 inches
• Drilled hole diameter with tolerance: 1.2 ^(+0.1) mm
• Height: 10.3 mm / 0.406 inches
• Height from the surface: 6.9 mm / 0.272 inches
• Pin spacing: 3.5 mm / 0.138 inches
• Solder pin dimensions: 0.8 x 0.8 mm
• Solder pin length: 3.4mm
• Width: 22.4 mm / 0.882 inches

Plug-in connection

• Connector (connection type): for PCB
• Contact type (pluggable connector): Male connector/plug
• Mating direction to the PCB: 0°
• Mismating protection: No
• Plugging without loss of pin spacing: No
