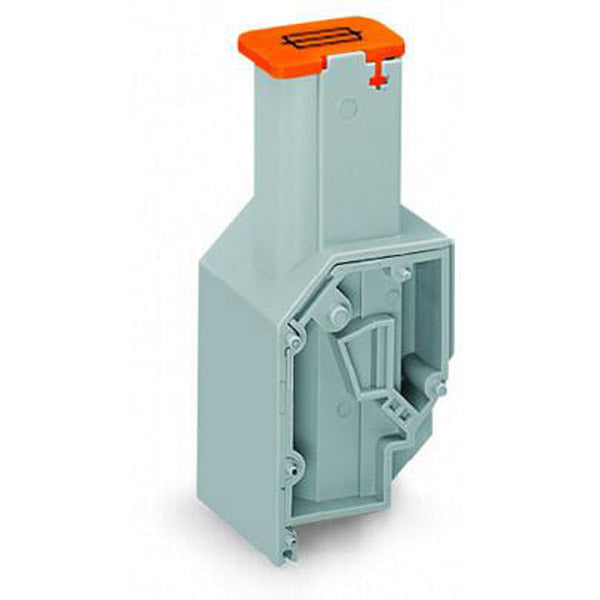

Wago - 711-403

Xfmr. fus. term. blck. connector - WAGO (711 series) - Orange - 1-pole (1P) - 4mm2 nominal cross-section - Rated current 10A - with CAGE CLAMP spring connections - Plug-in mounting - equivalent to 711403

Specifications

• Primary brand: WAGO
• Functions: Xfmr. fus. term. blck. connector
• Poles: 1-pole (1P)
• Rated current: (IEC) 10A
• Color: Orange
• Rated operating voltage (Ue): (IEC) 800V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: 4mm2 nominal cross-section
• Mounting mode: Plug-in
• Dimensions: H57.1mm x W22.5mm x D23.5mm
• Material: Polyamide (PA) 66
• ETIM code: EC000398
• eClass code: 27-14-11-10
• GTIN code: 4044918684576
• Customs Tariff Number: 85369095000
• Order code / Manufacturer SKU: 711-403
• Manufacturer product status: Commercialized
• Equivalent to: 711403
• EAN code: 4044918684576
• Compliant with standard(s): General approvals|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1101145|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Xfmr. fus. term. blck. connector - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369095000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-10
• eCl@ss 9.0: 27-14-11-10
• ETIM 8.0: EC000398
• ETIM 9.0: EC000398
• GTIN: 4044918684576
• Packaging type: box
• PU (SPU): 100 pcs

Connection data

• Clamping units: 1
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• Number of connection types: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Rated current: 10A
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 8kV
• Ratings per IEC/EN - Rated voltage (III/2): 800V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: orange
• Fire load: 0.24MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 13.3g

Physical data

• Depth: 23.5 mm / 0.925 inches
• Height: 57.1 mm / 2.248 inches
• Width: 22.5 mm / 0.886 inches
