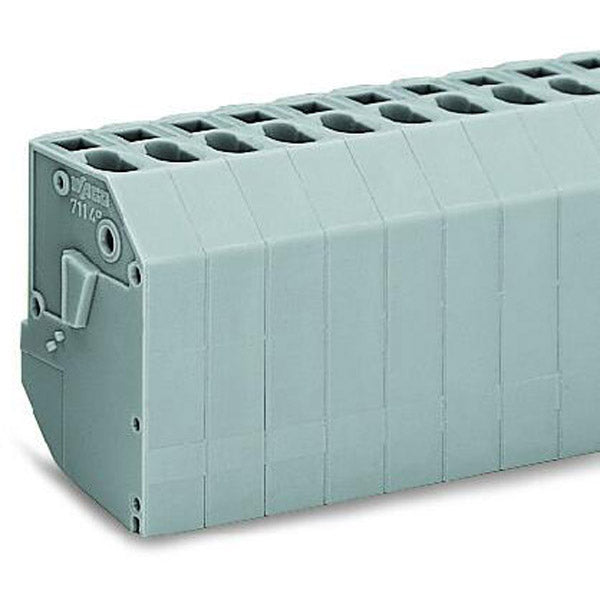

Wago - 711-155

Xfmr. term. blck. connector with 1-deck/level - WAGO (711 series) - Gray - 5-poles (5P) - 4mm2 nominal cross-section - Rated current 25A - with CAGE CLAMP spring connections - Plug-in mounting - equivalent to 711155

Specifications

• Primary brand: WAGO
• Functions: Xfmr. term. blck. connector
• Design: 1-deck/level
• Poles: 5-poles (5P)
• Rated current: (IEC) 25A
• Color: Gray
• Rated operating voltage (Ue): (IEC) 800V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: 4mm2 nominal cross-section
• Mounting mode: Plug-in
• Dimensions: H35mm x W37.5mm x D23.5mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-10
• ETIM code: EC000398
• Customs Tariff Number: 85369010000
• GTIN code: 4044918819589
• Order code / Manufacturer SKU: 711-155
• Manufacturer product status: Commercialized
• Equivalent to: 711155
• EAN code: 4044918819589
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate 2160584.54|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7194|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1101145|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Xfmr. term. blck. connector - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-10
• eCl@ss 9.0: 27-14-11-10
• ETIM 8.0: EC000398
• ETIM 9.0: EC000398
• GTIN: 4044918819589
• Packaging type: box
• PU (SPU): 30 pcs

Connection data

• Clamping units: 5
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Pole number: 5
• Connection 1 - Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• Number of connection types: 1
• Total number of potentials: 5

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Rated current: 25A
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 8kV
• Ratings per IEC/EN - Rated voltage (III/2): 800V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.356MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 17.2g

Physical data

• Depth: 23.5 mm / 0.925 inches
• Height: 35 mm / 1.378 inches
• Width: 37.5 mm / 1.476 inches
