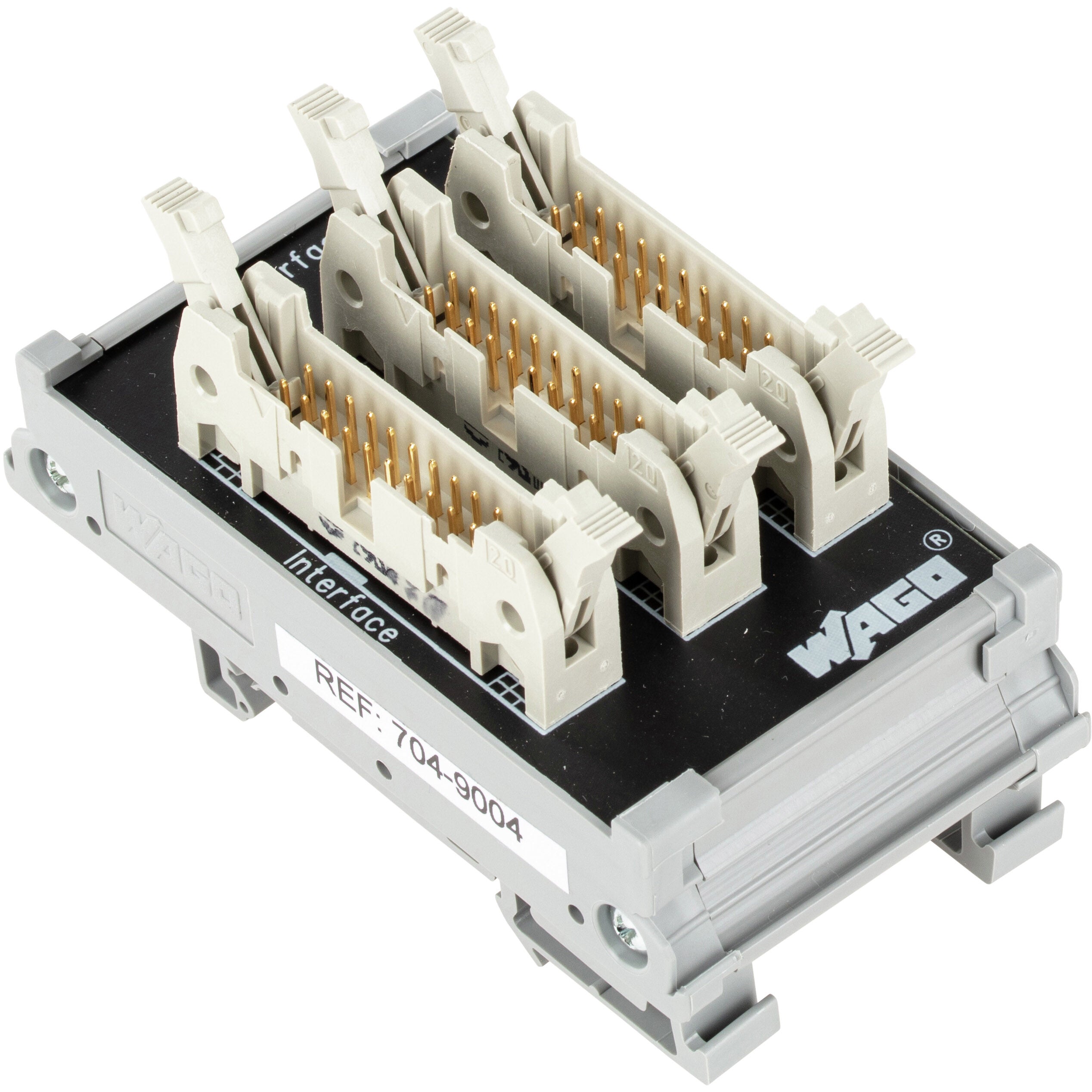

Wago - 704-9004

Digital inputs interface module - in mounting carrier - WAGO (704 series) - 20-poles (20P) - with DIN 41651 20-pin male connector (system) - DIN-35 rail mounting (45mm width) - rated for -20°C...+50°C ambient - equivalent to 7049004

Specifications

• Primary brand: WAGO
• Functions: Digital inputs interface module
• Design: in mounting carrier
• Poles: 20-poles (20P)
• Connection type: DIN 41651 20-pin male connector (system)
• Mounting mode: DIN-35 rail
• Digital inputs: 16 x digital inputs
• Dimensions: H85mm x W45mm x D45mm
• Net Width (mm): 45mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85369010000
• GTIN code: 4055143982658
• ETIM code: EC002780
• Order code / Manufacturer SKU: 704-9004
• Manufacturer product status: Commercialized
• Equivalent to: 7049004
• EAN code: 4055143982658
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Digital inputs interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4055143982658
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Pluggable connector: DIN 41651 connector; male connector
• Connection 1 - Pole number 1: 20
• Connection 2 - Pole number 2: 20
• Connection 3 - Pole number 3: 20

Electrical data

• Inputs/outputs: 16-channel digital input
• Limiting continuous current: 1 A
• Nominal operating voltage: 24 VDC

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Fire load: 0.999MJ
• Weight: 53.5g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 45 mm / 1.771 inches
• Height: 85 mm / 3.345 inches
• Width: 45 mm / 1.771 inches

Safety and protection

• Pollution degree: 2
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 50V
