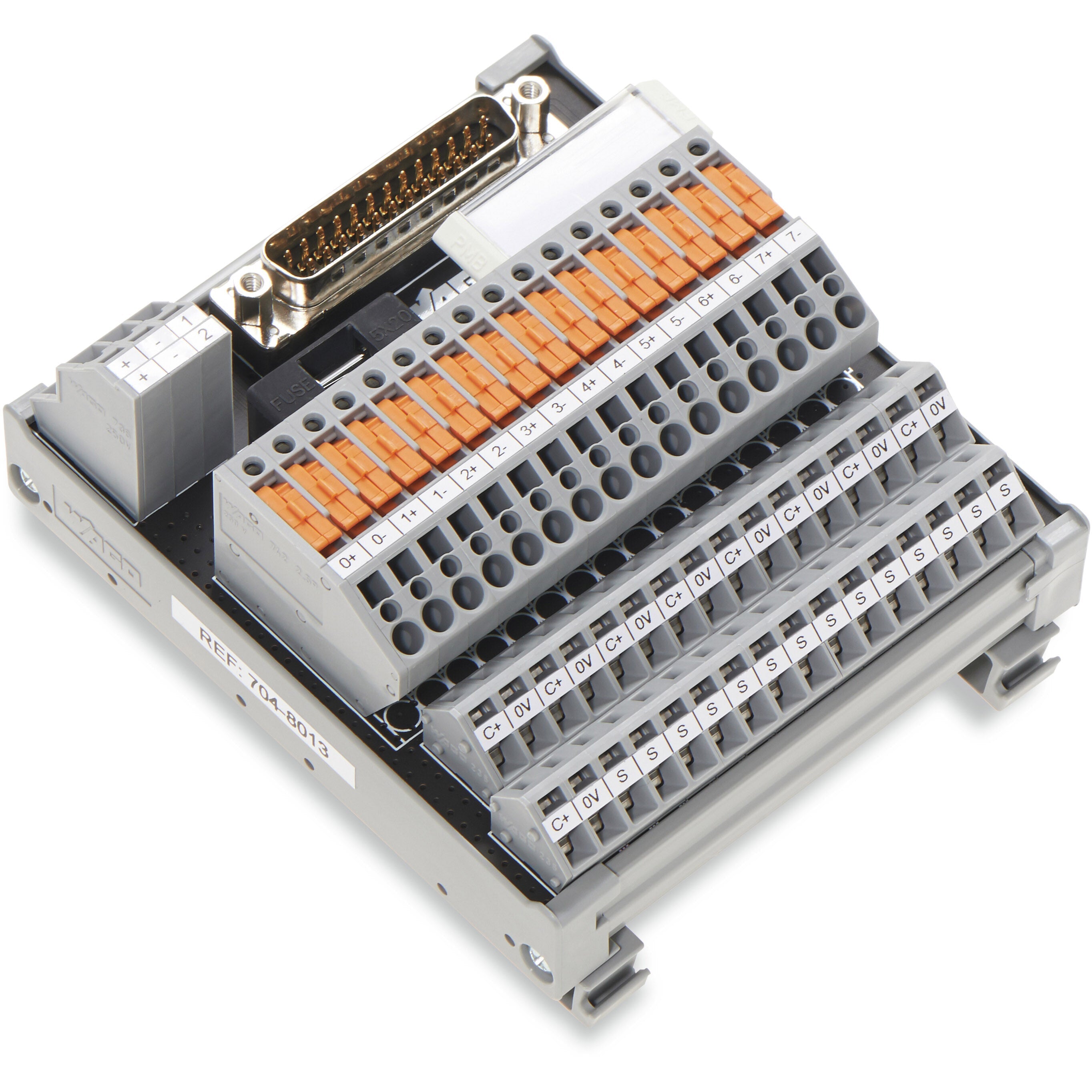

Wago - 704-8013

Interface module - in mounting carrier - WAGO (704 series) - 25-poles (25P) - with 8 x analog inputs + 8 x analog outputs - with 25-pin D-sub male connector (system; vertical connection) + spring CAGE CLAMP 16-pin for 0.08...2.5mm2 cables (field) + 2-row spring CAGE CLAMP 32-pin for 0.08...2.5mm2 cables (field) - DIN-35 rail mounting (92mm width) - rated for -20°C...+50°C ambient - equivalent to 7048013

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: in mounting carrier
• Poles: 25-poles (25P)
• Rated Voltage (DC): 48Vdc
• Connection type: 25-pin D-sub male connector (system; vertical connection)|spring CAGE CLAMP 16-pin for 0.08...2.5mm2 cables (field)|2-row spring CAGE CLAMP 32-pin for 0.08...2.5mm2 cables (field)|double-deck spring CAGE CLAMP 6-pin for 0.08...2.5mm2 cables (supply)
• Mounting mode: DIN-35 rail
• Analog inputs: 8 x analog inputs
• Analog outputs: 8 x analog outputs
• Dimensions: H105mm x W92mm x D50mm
• Net Width (mm): 92mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• ETIM code: EC002780
• GTIN code: 4050821115564
• eClass code: 27-14-11-52
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 704-8013
• Manufacturer product status: Commercialized
• Equivalent to: 7048013
• EAN code: 4050821115564
• Compliant with standard(s): RoHS compliant
• Location of origin: France
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: FR
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4050821115564
• Packaging type: box
• Product Group: 30 (WAGO France)
• PU (SPU): 1 pcs

Compatibility

• GE Fanuc - GE Fanuc 9030: IC693 ALG222|IC693 ALG223|IC693 ALG392
• GE Fanuc - GE Fanuc RX3i: IC694 ALG223|IC694 ALG392
• Rockwell - Rockwell Compact Logix: 1769 - IF16C|1769 - IF4XOF2 (F)|1769 - IR6|1769 - OF8C|1769 - OF8V
• Rockwell - Rockwell Control Logix: 1756 - IF6CIS|1756 - IF6I|1756 - IF8|1756 - IF8H|1756 - IF16|1756 - IR6I|1756 - OF6CI|1756 - OF6VI|1756 - OF8|1756 - OF8H
• Schneider - Schneider Modicon M340: BMX ART 0414|BMX ART 0814|BMX AMI 0800|BMX AMI 0810|BMX AMM 0600|BMX AMO 0802
• Schneider - Schneider Modicon Quantum: 140 ACI 030 00|140 ACI 040 00|140 ACO 130 00|140 ARI 030 10|140 AVI 030 00
• Schneider - Schneider Modicon TM3: TM3 AI8(G)|TM3 AM6(G)|TM3 TI8T(G)
• Schneider - Schneider TSX: TSX AEY 414|TSX AEZ 801|TSX AEZ 802
• Siemens - Siemens S7-1500: 6ES7 531-7KF00-0AB0|6ES7 531-7MH00-0AB0|6ES7 531-7NF00-0AB0|6ES7 531-7NF10-0AB0|6ES7 531-7PF00-0AB0|6ES7 531-7QF00-0AB0|6ES7 532-5HF00-0AB0|6ES7 534-7QE00-0AB0
• Siemens - Siemens S7-300: 6ES7 331-1KF02-0AB0|6ES7 331-7HF01-0AB0|6ES7 331-7KF02-0AB0|6ES7 331-7NF00-0AB0|6ES7 331-7NF10-0AB0|6ES7 331-7PF01-0AB0|6ES7 331-7SF00-0AB0|6ES7 331-7TF00-0AB0|6ES7 332-5HF00-0AB0|6ES7 332-8TF01-0AB0|6ES7 334-0CE01-0AA0|6ES7 336-4GE01-0AB0
• Siemens - Siemens S7-400: 6ES7 431-1KF00-0AB0|6ES7 431-1KF10-0AB0|6ES7 431-1KF20-0AB0|6ES7 431-7KF00-0AB0|6ES7 432-1HF00-0AB0
• WAGO - WAGO I/O System 753: 753-453 (x2)|753-455 (x2)|753-457 (x2)|753-459 (x2)|753-553 (x2)|753-555 (x2)|753-557 (x2)|753-559 (x2)

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: D-subminiature male connector
• Connection 1 - Pole number 1: 25
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 16
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 2 - WAGO connector 2: WAGO 742 Series
• Connection 3 - Connection type: Field
• Connection 3 - Design 3: PCB terminal blocks (double-row)
• Connection 3 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 3 - Pole number 3: 32
• Connection 3 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 3 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 3 - WAGO connector 3: WAGO 236 Series
• Connection 4 - Connection technology: CAGE CLAMP^®
• Connection 4 - Connection type: Power supply
• Connection 4 - Design (4): PCB terminal blocks (double-deck)
• Connection 4 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 4 - Pole number 4: 6
• Connection 4 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 4 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 4 - WAGO connector 4: WAGO 736 Series

Electrical data

• Circuit type: 2-wire connection|4-wire connection
• Inputs/outputs: 8-channel analog input or output
• Internal fuse: Supply: 2 A
• Limiting continuous current: 1 A
• Operating voltage: ≤ 48 VDC
• Specialty functions: With disconnect/test terminal blocks|with disconnect/test terminal blocks

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Fire load: 2.496MJ
• Weight: 190g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 50 mm / 1.969 inches
• Height: 105 mm / 4.134 inches
• Width: 92 mm / 3.62 inches

Safety and protection

• Pollution degree: 2
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 50V
