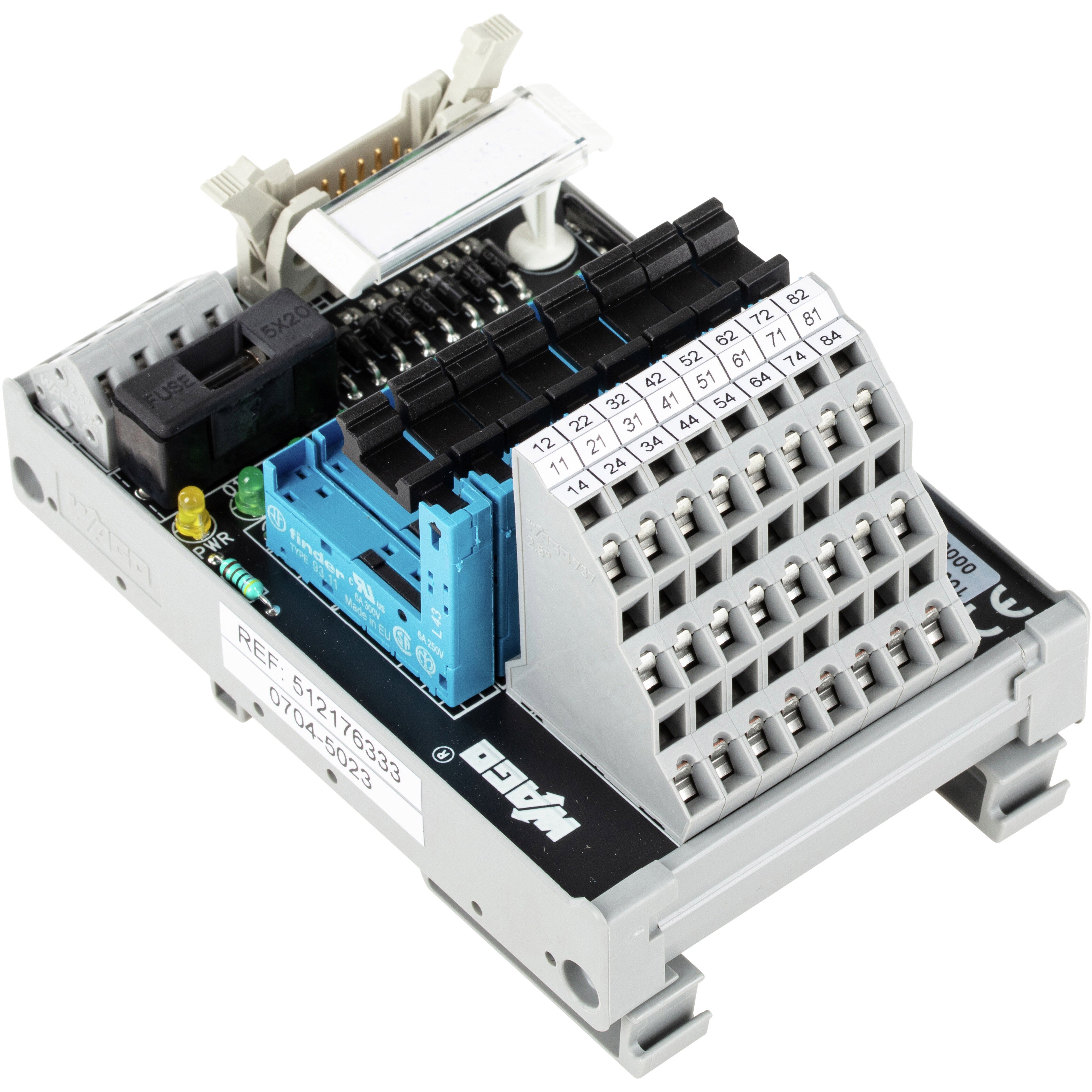

Wago - 704-5023

Rly. outputs interface module - in mounting carrier - without rly. - WAGO (704 series) - 10-poles (10P) - supply voltage 21.6-26.4Vdc (24Vdc nom.) - with DIN 41651 10-pin male connector (system; vertical connection) + triple-deck spring CAGE CLAMP 24-pin for 0.08...2.5mm2 cables (field) - DIN-35 rail mounting (70mm width) - rated for -25°C...+40°C ambient - equivalent to 7045023

Specifications

• Primary brand: WAGO
• Functions: Rly. outputs interface module
• Design: in mounting carrier|without rly.
• Poles: 10-poles (10P)
• Supply voltage (DC): 21.6-26.4Vdc (24Vdc nom.)
• Connection type: DIN 41651 10-pin male connector (system; vertical connection)|triple-deck spring CAGE CLAMP 24-pin for 0.08...2.5mm2 cables (field)|spring CAGE CLAMP 4-pin for 0.08...2.5mm2 cables (supply)
• Mounting mode: DIN-35 rail
• Digital outputs: 8 x digital outputs (C/O / SPDT (Single Pole Double Throw) rly. contact type; 250Vac / 48Vdc)
• Dimensions: H105mm x W70mm x D65mm
• Net Width (mm): 70mm
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• GTIN code: 4055144025279
• Customs Tariff Number: 85389091890
• ETIM code: EC002780
• Order code / Manufacturer SKU: 704-5023
• Manufacturer product status: Commercialized
• Equivalent to: 7045023
• EAN code: 4055144025279
• Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (7(a))
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Rly. outputs interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389091890
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4055144025279
• Packaging type: box
• PU (SPU): 1 pcs

Compatibility

• GE Fanuc - GE Fanuc 9030: IC693 MDL730|IC693 MDL732
• Omron - Omron CJ1W: CJ1W-OD204
• Rockwell - Rockwell Compact Logix: 1769 - OB8
• Schneider - Schneider Modicon M340: BMX DDM 16022
• Schneider - Schneider Modicon Quantum: 140 DDM 390 00
• Schneider - Schneider Modicon TM3: TM3 DQ8T(G)
• Schneider - Schneider TSX: TSX DSY 08T2
• Siemens - Siemens ET200SP: 6ES7 132-6BF00-0CA0|6ES7 132-6BF01-0AA0|6ES7 132-6BF01-0BA0
• Siemens - Siemens S7-1500: 6ES7 522-1BF00-0AB0
• Siemens - Siemens S7-300: 6ES7 322-1BF01-0AA0|6ES7 322-8BF00-0AB0|6ES7 323-1BH01-0AA0|6ES7 327-1BH00-0AB0|6ES7 326-2BF01-0AB0|6ES7 326-2BF10-0AB0
• WAGO - WAGO I/O System 750: 750-1502
• WAGO - WAGO I/O System 753: 753-530 (x1)

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Pluggable connector: DIN 41651 connector; male connector
• Connection 1 - Pole number 1: 10
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (triple-deck)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 24
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 737 Series
• Connection 3 - Connection type: Power supply
• Connection 3 - Design 3: PCB terminal blocks
• Connection 3 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 3 - Pole number 3: 4
• Connection 3 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 3 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 3 - WAGO connector 3: WAGO 236 Series

Electrical data

• Inputs/outputs: 8-channel relay output
• Internal fuse: Supply: 1 A; Relay output: -
• Limiting continuous current: 5 A
• Nominal operating voltage: 24 VDC
• Number of changeover/switchover contacts: 1
• Operating voltage range: ±10 %
• Specialty functions: Without basic relay
• Status indicator: Green LED (channel)|Yellow LED (power supply)
• Switching power (resistive) max.: AC 1250 VA; DC 50 W
• Switching Voltage, Max.: 250 VAC; 48 VDC
• Total current: 12A
• WAGO Basic Relay: 857-152

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)
• SCIP notification number (Austria): 766a09c7-e3d6-4e98-a384-36268bb2a701
• SCIP notification number (Belgium): d5e005b9-d91a-493a-9a49-2f8e498f68ad
• SCIP notification number (Bulgaria): 91744d39-3cf7-4b75-89f8-4abf13820dd8
• SCIP notification number (Czech Republic): 74f8d49a-738c-47ee-af0e-f2a88e7dca9f
• SCIP notification number (Denmark): e0cfd8f6-be4e-48a0-ab6a-42ad5adb4c50
• SCIP notification number (Finland): f4a4420c-d8c1-481d-a8b2-827d2ff0399b
• SCIP notification number (France): c9aed415-e86a-41cc-9c3c-2b339472f815
• SCIP notification number (Germany): 3a1e2d73-2a34-43f3-8c8a-00d6891ba9d5
• SCIP notification number (Hungary): ff8e5303-327a-4a09-855e-d4b7a82a1744
• SCIP notification number (Italy): 273df7f6-e5c2-4069-947e-77101ec3eb1c
• SCIP notification number (Netherlands): 768598f9-7b9e-4bf2-9280-84c45d6703fd
• SCIP notification number (Poland): a10502c5-bbb9-4c01-8740-74ebba77e6b4
• SCIP notification number (Romania): 4a85d38e-de79-480d-8147-d7b5e19d2d7a
• SCIP notification number (Sweden): 6c0c30d9-ea2f-4bd8-b22d-d18d88ff378c

Environmental requirements

• Ambient temperature (operation): -25 … +40 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Fire load: 1.304MJ
• Weight: 130.9g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 65 mm / 2.559 inches
• Height: 105 mm / 4.134 inches
• Width: 70 mm / 2.756 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 4 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min): 1 kVrms
• Pollution degree: 2
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 50V
