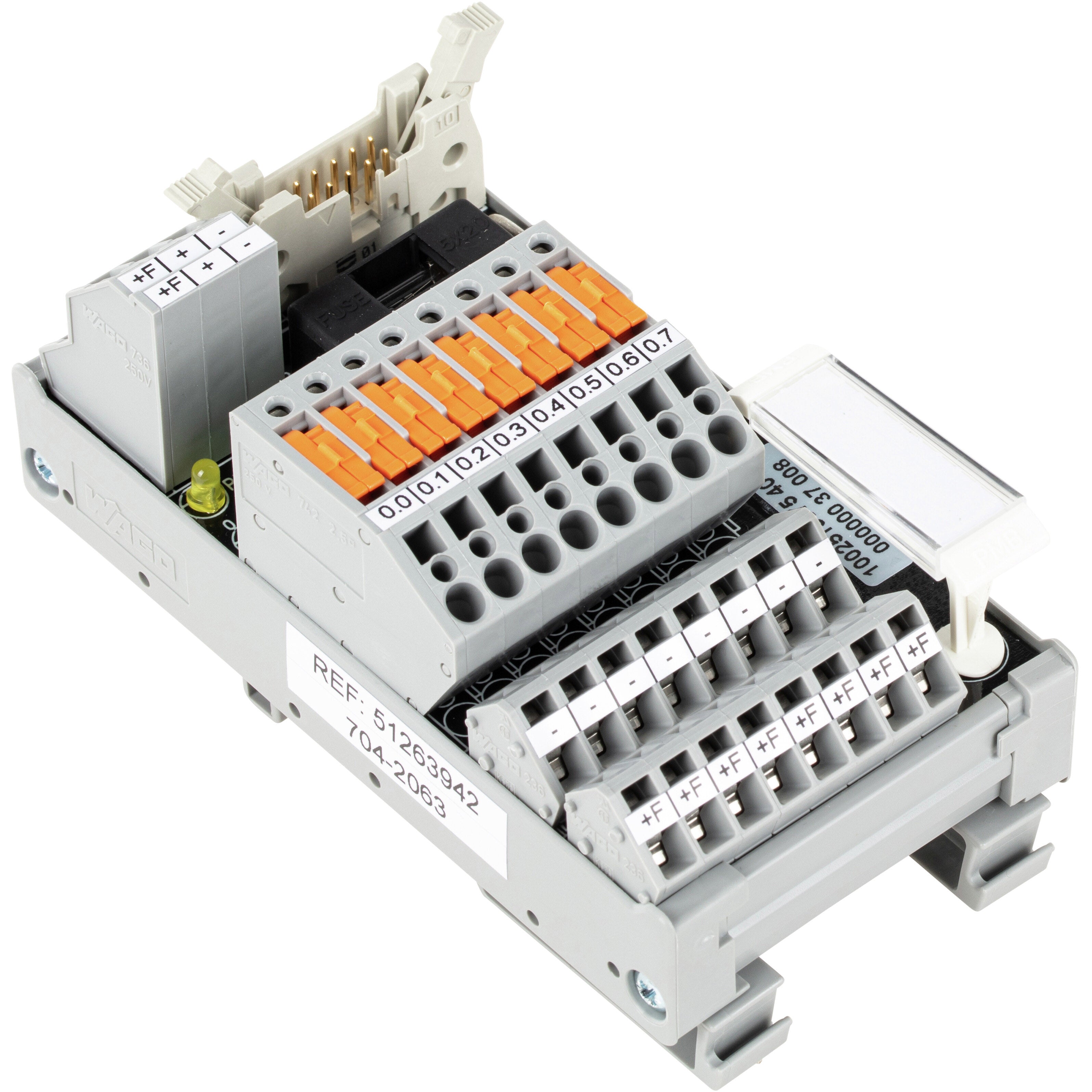

Wago - 704-2063
$387.50
Sale price
$387.50
Regular price
Digital inputs or outputs interface module - in mounting carrier - WAGO (704 series) - 10-poles (10P) - supply voltage 21.6-26.4Vdc (24Vdc nom.) - with DIN 41651 10-pin male connector (system; vertical connection) + spring CAGE CLAMP 8-pin for 0.08...1.5mm2 cables (system) + spring CAGE CLAMP 16-pin for 0.08...1.5mm2 cables (system) - DIN-35 rail mounting (56mm width) - rated for -20°C...+50°C ambient - equivalent to 7042063
Specifications
- Primary brand: WAGO
- Functions: Digital inputs or outputs interface module
- Design: in mounting carrier
- Poles: 10-poles (10P)
- Supply voltage (DC): 21.6-26.4Vdc (24Vdc nom.)
- Connection type: DIN 41651 10-pin male connector (system; vertical connection)|spring CAGE CLAMP 8-pin for 0.08...1.5mm2 cables (system)|spring CAGE CLAMP 16-pin for 0.08...1.5mm2 cables (system)
- Mounting mode: DIN-35 rail
- Digital inputs: 8 x digital inputs (3-wire)
- Digital outputs: 8 x digital outputs
- Dimensions: H105mm x W56mm x D63mm
- Net Width (mm): 56mm
- Ambient air temperature for operation: -20°C...+50°C
- Ambient air temperature for storage: -40°C...+70°C
- Humidity: ≤85% relative humidity (RH; non-condensing)
- Current consumption: 5mA (status indicator)
- GTIN code: 4055143982672
- ETIM code: EC002780
- Customs Tariff Number: 85369010000
- Order code / Manufacturer SKU: 704-2063
- Manufacturer product status: Commercialized
- Equivalent to: 7042063
- EAN code: 4055143982672
- Compliant with standard(s): RoHS compliant with exemption (7(a))
- Location of origin: Germany
- Degree of pollution: 2
- Level 1 category: Automation components
- Product title: Digital inputs or outputs interface module - WAGO
Commercial data
- Country of origin: DE
- Customs tariff number: 85369010000
- ECCN: NO US CLASSIFICATION
- ETIM 8.0: EC002780
- ETIM 9.0: EC002780
- GTIN: 4055143982672
- Packaging type: box
- PU (SPU): 1 pcs
Compatibility
- GE Fanuc - GE Fanuc 9030: IC693 MDL634|IC693 MDL730|IC693 MDL732
- Omron - Omron CJ1W: CJ1W-ID201|CJ1W-OD204
- Rockwell - Rockwell Compact Logix: 1769 - OB8
- Schneider - Schneider Modicon M340: BMX DDM 16022|BMX DDM 16025
- Schneider - Schneider Modicon Quantum: 140 DDM 390 00
- Schneider - Schneider Modicon TM3: TM3 DI8(G)|TM3 DQ8T(G)
- Schneider - Schneider TSX: TSX DEY 08D2|TSX DSY 08T2|TSX DSZ 04T22|TSX DSZ 08T2|TSX DSZ 08T2K|TSX DMZ 16DTK
- Siemens - Siemens ET200SP: 6ES7 131-6BF00-0CA0|6ES7 131-6BF00-0DA0|6ES7 131-6BF00-2CA0|6ES7 131-6BF01-0AA0|6ES7 131-6BF01-0BA0|6ES7 131-6BF01-2AA0|6ES7 131-6BF01-2BA0|6ES7 131-6BF61-0AA0|6ES7 132-6BF00-0CA0|6ES7 132-6BF01-0AA0|6ES7 132-6BF01-0BA0
- Siemens - Siemens S7-1500: 6ES7 522-1BF00-0AB0
- Siemens - Siemens S7-300: 6ES7 313-5BE01-0AB0|6ES7 313-5BG04-0AB0|6ES7 314-6BF01-0AB0|6ES7 314-6BG03-0AB0|6ES7 314-6CF01-0AB0|6ES7 314-6CG03-0AB0|6ES7 322-1BF01-0AA0|6ES7 322-8BF00-0AB0|6ES7 323-1BH01-0AA0|6ES7 326-2BF01-0AB0|6ES7 326-2BF10-0AB0|6ES7 327-1BH00-0AB0
- WAGO - WAGO I/O System 750: 750-1502
- WAGO - WAGO I/O System 753: 753-430 (x1)|753-431 (x1)|753-530 (x1)
Connection data
- Connection 1 - Connection type 1: System
- Connection 1 - Mating direction: vertical
- Connection 1 - Pluggable connector: DIN 41651 connector; male connector
- Connection 1 - Pole number 1: 10
- Connection 2 - Connection type: Field
- Connection 2 - Design 2: PCB terminal blocks
- Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 2 - Pole number 2: 8
- Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 2 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
- Connection 2 - WAGO connector 2: WAGO 742 Series
- Connection 3 - Connection type: Field
- Connection 3 - Design 3: PCB terminal blocks
- Connection 3 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 3 - Pole number 3: 16
- Connection 3 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 3 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
- Connection 3 - WAGO connector 3: WAGO 236 Series
- Connection 4 - Connection type: Power supply
- Connection 4 - Design (4): PCB terminal blocks (double-deck)
- Connection 4 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 4 - Pole number 4: 24
- Connection 4 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 4 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
- Connection 4 - WAGO connector 4: WAGO 736 Series
Electrical data
- Circuit type: 3-wire connection
- Current consumption (status indication): 5mA
- Inputs/outputs: 8-channel digital input or output
- Internal fuse: 2 A
- Limiting continuous current: 1 A
- Nominal operating voltage: 24 VDC
- Operating voltage range: ±10 %
- Specialty functions: With disconnect/test terminal blocks
- Status indicator: Green LED (channel)|Yellow LED (power supply)
- Total current: 2A
Environmental Product Compliance
- CAS-No.: 7439-92-1|79-94-7
- REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
- RoHS Compliance Status: Compliant,With Exemption
- RoHS Exemption: 7(a)
- SCIP notification number (Austria): ea9a20da-8b1a-439a-a833-8ee3e9359dd1
- SCIP notification number (Belgium): ebd72325-2c63-4714-85c6-8118c200cafa
- SCIP notification number (Bulgaria): 94557d82-b313-4285-b4dc-e2d313075247
- SCIP notification number (Czech Republic): 20b8f1bb-502b-408d-a8a0-5b764f12e475
- SCIP notification number (Denmark): be02303e-6e1c-45eb-be4e-ae6dd975f3c3
- SCIP notification number (Finland): 89390587-075a-4386-8ec2-6938d7751ce7
- SCIP notification number (France): 0c7750b7-c4d4-4470-8222-8dd456d677a0
- SCIP notification number (Germany): dbcb5603-5a25-4486-b62d-ee23ff8c96b7
- SCIP notification number (Hungary): 36e1c04d-f474-47a9-9485-4a0d6eea10c6
- SCIP notification number (Italy): 7efab2cc-10b0-4773-b9ee-34a30d9b29d1
- SCIP notification number (Netherlands): 54ee55f1-13bd-49b4-8a3e-dfdd19aa10e2
- SCIP notification number (Poland): f1db8e2c-42a8-418e-8616-511c338c81fb
- SCIP notification number (Romania): 19e89bee-8d45-450e-b5df-8384d92f6342
- SCIP notification number (Sweden): d041b71a-6f2c-4e44-a762-aba4fceeb88f
Environmental requirements
- Ambient temperature (operation): -20 … +50 °C
- Ambient temperature (storage): -40 … +70 °C
- Relative humidity: ≤ 85 % (non-condensing)
Material data
- Fire load: 1.704MJ
- Weight: 114.4g
Mechanical data
- Mounting type: DIN-35 rail
Physical data
- Depth from upper-edge of DIN-rail: 63 mm / 2.48 inches
- Height: 105 mm / 4.133 inches
- Width: 56 mm / 2.205 inches
Safety and protection
- Pollution degree: 2
- Rated impulse withstand voltage: 0.8kV
- Rated voltage: 50V
