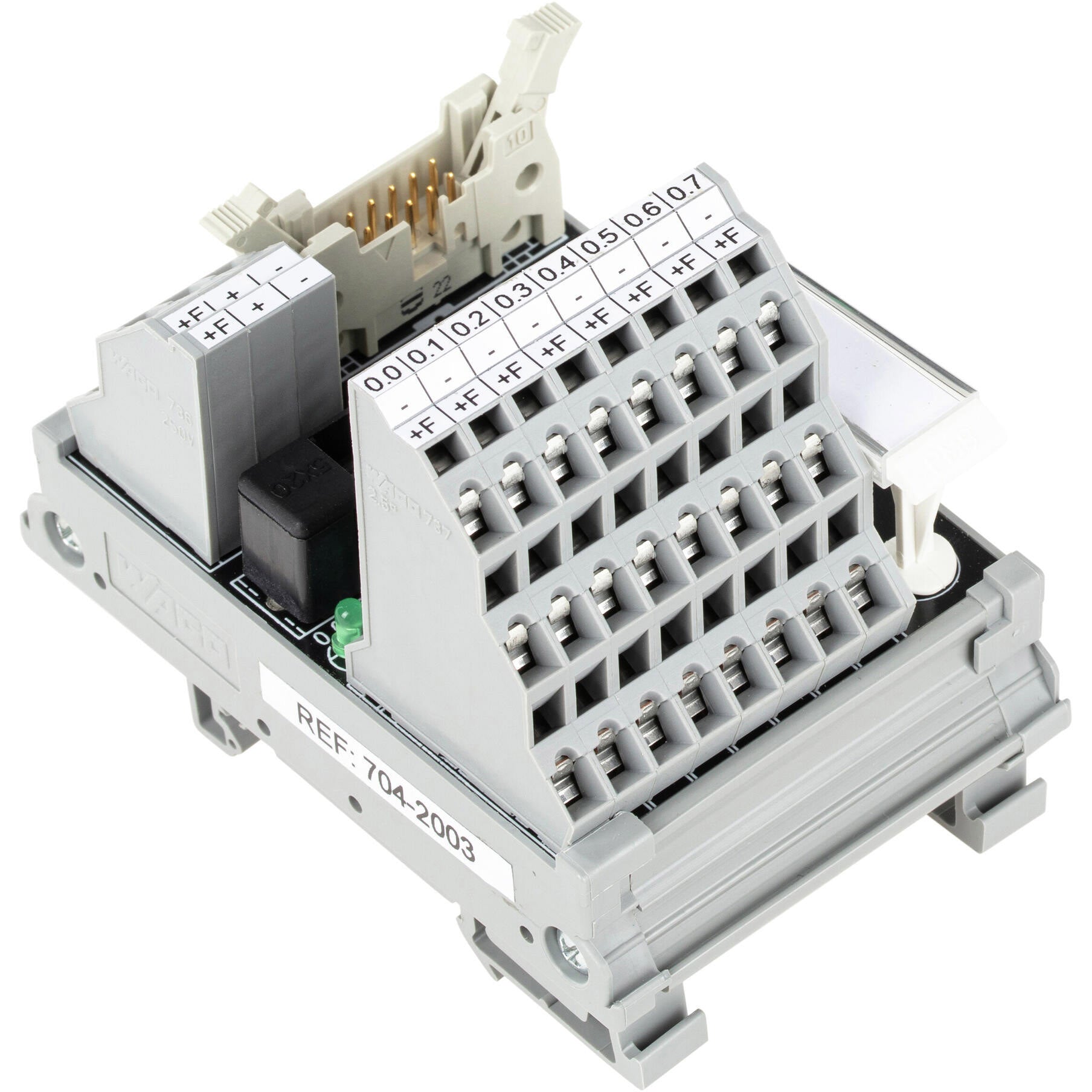

Wago - 704-2003

Digital inputs or outputs interface module - in mounting carrier - WAGO (704 series) - 10-poles (10P) - supply voltage 21.6-26.4Vdc (24Vdc nom.) - with DIN 41651 10-pin male connector (system; vertical connection) + triple-deck spring CAGE CLAMP 24-pin for 0.08...2.5mm2 cables (field) - DIN-35 rail mounting (56mm width) - rated for -20°C...+50°C ambient - equivalent to 7042003

Specifications

• Primary brand: WAGO
• Functions: Digital inputs or outputs interface module
• Design: in mounting carrier
• Poles: 10-poles (10P)
• Supply voltage (DC): 21.6-26.4Vdc (24Vdc nom.)
• Connection type: DIN 41651 10-pin male connector (system; vertical connection)|triple-deck spring CAGE CLAMP 24-pin for 0.08...2.5mm2 cables (field)|double-deck spring CAGE CLAMP 6-pin for 0.08...1.5mm2 cables (supply)
• Mounting mode: DIN-35 rail
• Digital inputs: 8 x digital inputs (3-wire)
• Digital outputs: 8 x digital outputs
• Dimensions: H85mm x W56mm x D63mm
• Net Width (mm): 56mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• Current consumption: 5mA (status indicator)
• GTIN code: 4050821161981
• ETIM code: EC002780
• eClass code: 27-14-11-52
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 704-2003
• Manufacturer product status: Commercialized
• Equivalent to: 7042003
• EAN code: 4050821161981
• Compliant with standard(s): RoHS compliant
• Location of origin: France
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Digital inputs or outputs interface module - WAGO

Commercial data

• Country of origin: FR
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4050821161981
• Packaging type: box
• Product Group: 30 (WAGO France)
• PU (SPU): 1 pcs

Compatibility

• GE Fanuc - GE Fanuc 9030: IC693 MDL634|IC693 MDL730|IC693 MDL732
• Omron - Omron CJ1W: CJ1W-ID201|CJ1W-OD204
• Rockwell - Rockwell Compact Logix: 1769 - OB8
• Schneider - Schneider Modicon M340: BMX DDM 16022|BMX DDM 16025
• Schneider - Schneider Modicon Quantum: 140 DDM 390 00
• Schneider - Schneider Modicon TM3: TM3 DI8(G)|TM3 DQ8T(G)
• Schneider - Schneider TSX: TSX DEY 08D2|TSX DSY 08T2|TSX DSZ 04T22|TSX DSZ 08T2|TSX DSZ 08T2K|TSX DMZ 16DTK
• Siemens - Siemens ET200SP: 6ES7 131-6BF00-0CA0|6ES7 131-6BF00-0DA0|6ES7 131-6BF00-2CA0|6ES7 131-6BF01-0AA0|6ES7 131-6BF01-0BA0|6ES7 131-6BF01-2AA0|6ES7 131-6BF01-2BA0|6ES7 131-6BF61-0AA0|6ES7 132-6BF00-0CA0|6ES7 132-6BF01-0AA0|6ES7 132-6BF01-0BA0
• Siemens - Siemens S7-1500: 6ES7 522-1BF00-0AB0
• Siemens - Siemens S7-300: 6ES7 313-5BE01-0AB0|6ES7 313-5BG04-0AB0|6ES7 314-6BF01-0AB0|6ES7 314-6BG03-0AB0|6ES7 314-6CF01-0AB0|6ES7 314-6CG03-0AB0|6ES7 322-1BF01-0AA0|6ES7 322-8BF00-0AB0|6ES7 323-1BH01-0AA0|6ES7 326-2BF01-0AB0|6ES7 326-2BF10-0AB0|6ES7 327-1BH00-0AB0
• WAGO - WAGO I/O System 750: 750-1502
• WAGO - WAGO I/O System 753: 753-430 (x1)|753-431 (x1)|753-530 (x1)

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: DIN 41651 connector; male connector
• Connection 1 - Pole number 1: 10
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (triple-deck)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 24
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 737 Series
• Connection 3 - Connection type: Power supply
• Connection 3 - Design 3: PCB terminal blocks (double-deck)
• Connection 3 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 3 - Pole number 3: 6
• Connection 3 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 3 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 3 - WAGO connector 3: WAGO 736 Series

Electrical data

• Circuit type: 3-wire connection
• Current consumption (status indication): 5mA
• Inputs/outputs: 8-channel digital input or output
• Internal fuse: 2 A
• Limiting continuous current: 1 A
• Nominal operating voltage: 24 VDC
• Operating voltage range: ±10 %
• Status indicator: Green LED (channel)|Yellow LED (power supply)
• Total current: 2A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Fire load: 1.694MJ
• Weight: 92g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 63 mm / 2.48 inches
• Height: 85 mm / 3.346 inches
• Width: 56 mm / 2.205 inches

Safety and protection

• Pollution degree: 2
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 50V
