Wago - 704-2004
$273.20
Sale price
$273.20
Regular price

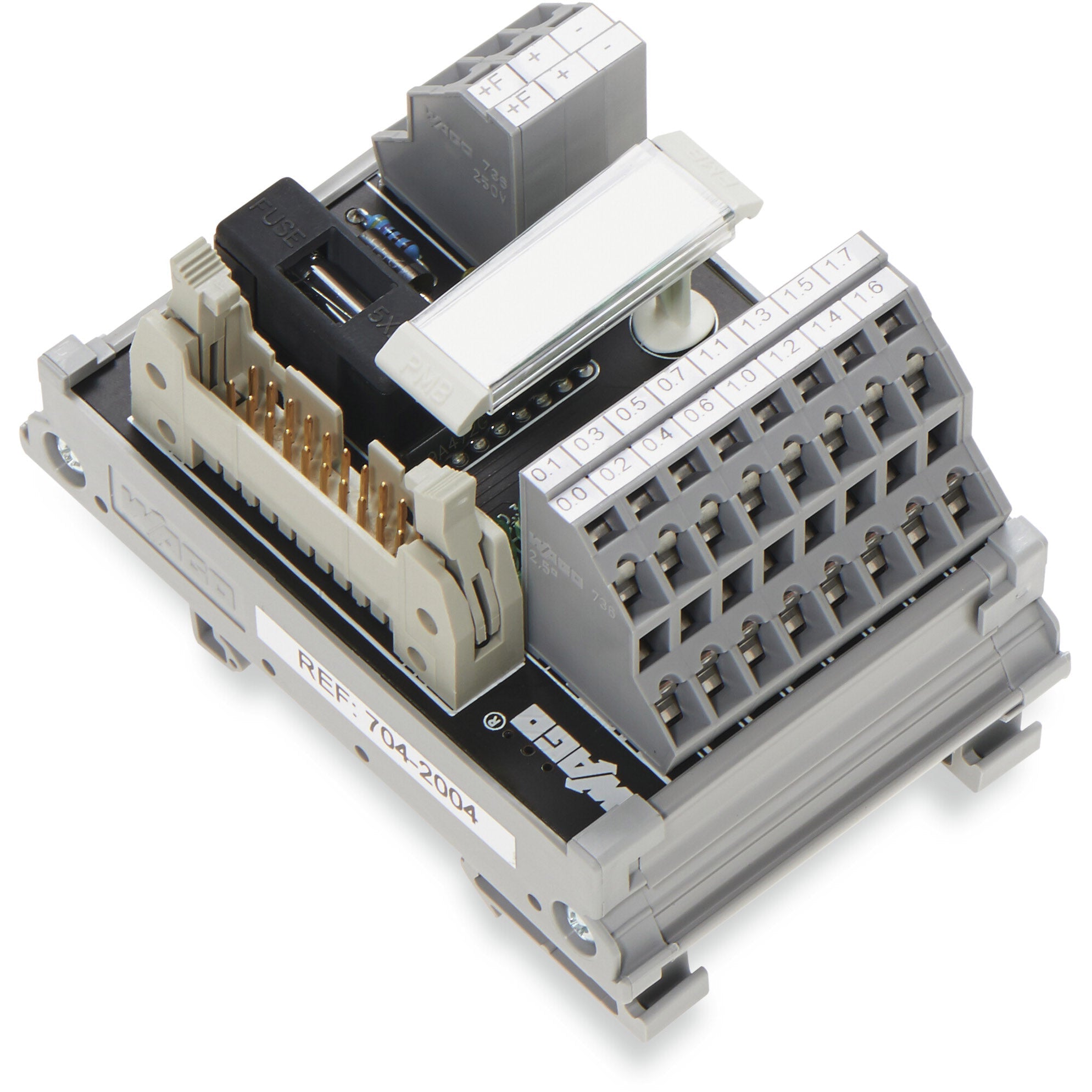

Digital inputs or outputs interface module - in mounting carrier - WAGO (704 series) - 20-poles (20P) - supply voltage 21.6-26.4Vdc (24Vdc nom.) - with DIN 41651 20-pin male connector (system; vertical connection) + double-deck spring CAGE CLAMP 16-pin for 0.08...2.5mm2 cables (field) - DIN-35 rail mounting (55mm width) - rated for -20°C...+50°C ambient - equivalent to 7042004
Specifications
- Primary brand: WAGO
- Functions: Digital inputs or outputs interface module
- Design: in mounting carrier
- Poles: 20-poles (20P)
- Supply voltage (DC): 21.6-26.4Vdc (24Vdc nom.)
- Connection type: DIN 41651 20-pin male connector (system; vertical connection)|double-deck spring CAGE CLAMP 16-pin for 0.08...2.5mm2 cables (field)|double-deck spring CAGE CLAMP 6-pin for 0.08...1.5mm2 cables (supply)
- Mounting mode: DIN-35 rail
- Digital inputs: 16 x digital inputs (1-wire)
- Digital outputs: 16 x digital outputs
- Dimensions: H85mm x W55mm x D50mm
- Net Width (mm): 55mm
- Ambient air temperature for operation: -20°C...+50°C
- Ambient air temperature for storage: -40°C...+70°C
- Humidity: ≤85% relative humidity (RH; non-condensing)
- Current consumption: 5mA (status indicator)
- GTIN code: 4050821161998
- Customs Tariff Number: 85366990990
- eClass code: 27-14-11-52
- ETIM code: EC002780
- Order code / Manufacturer SKU: 704-2004
- Manufacturer product status: Commercialized
- Equivalent to: 7042004
- EAN code: 4050821161998
- Compliant with standard(s): RoHS compliant
- Location of origin: France
- Degree of pollution: 2
- Level 1 category: Automation components
- Product title: Digital inputs or outputs interface module - WAGO
Commercial data
- Country of origin: FR
- Customs tariff number: 85366990990
- ECCN: NO US CLASSIFICATION
- eCl@ss 10.0: 27-14-11-52
- eCl@ss 9.0: 27-14-11-52
- ETIM 8.0: EC002780
- ETIM 9.0: EC002780
- GTIN: 4050821161998
- Packaging type: box
- Product Group: 30 (WAGO France)
- PU (SPU): 1 pcs
Compatibility
- GE Fanuc - GE Fanuc 9030: IC693 MDL241|IC693 MDL640|IC693 MDL643|IC693 MDL645|IC693 MDL646|IC693 MDL655|IC693 MDL740|IC693 MDL742|IC693 MDL753
- GE Fanuc - GE Fanuc RX3i: IC694 MDL655|IC694 MDL753
- Omron - Omron CJ1W: CJ1W-ID211|CJ1W-ID231|CJ1W-ID232|CJ1W-ID261|CJ1W-ID262|CJ1W-IDP01|CJ1W-INT01|CJ1W-MD232|CJ1W-OD212|CJ1W-OD232|CJ1W-OD262
- Rockwell - Rockwell Compact Logix: 1769 - IQ16|1769 - IQ16F|1769 - IQ32|1769 - IQ32T|1769 - OB16|1769 - OB16P|1769 - OB32|1769 - OB32T
- Rockwell - Rockwell Control Logix: 1756 - IB16I|1756 - IB16ISOE|1756 - IB32|1756 - OB16E|1756 - OB16I|1756 - OB16IS|1756 - OB32
- Schneider - Schneider Modicon M340: BMX DDI 1602|BMX DDI 3202K|BMX DDI 6402K|BMX DDO 1602|BMX DDO 3202K|BMX DDO 6402K|BMX DDM 3202K
- Schneider - Schneider Modicon Quantum: 140 DDI 353 00|140 DDI 364 00|140 DDO 353 00|140 DDO 353 01|140 DDO 364 00|140 DDM 390 00|140 DSI 353 00|140 DVO 853 00
- Schneider - Schneider Modicon TM3: TM3 DI16(G)|TM3 DI16K|TM3 DI32K|TM3 DQ16T(G)|TM3 DQ16TK|TM3 DQ32TK
- Schneider - Schneider TSX: TSX DEY 16D2|TSX DEY 16FK|TSX DEY 32D2K|TSX DEY 64D2K|TSX DMY 28FK|TSX DMY 28RFK|TSX DSY 16T2|TSX DSY 32T2K|TSX DSY 64T2K|TSX DMZ 28DT|TSX DMZ 28DTK|TSX DMZ 64DTK|TSX DSZ 32T2|TSX DEZ 12D2K|TSX DEZ 32D2
- Schneider - Schneider Twido: TM2 DDI 16DK|TM2 DDI 32DK|TM2 DDO 16TK|TM2 DDO 32TK
- Siemens - Siemens ET200SP: 6ES7 131-6BH01-0BA0|6ES7 131-6BH01-2BA0|6ES7 132-6BH00-0AA0|6ES7 132-6BH00-2AA0|6ES7 132-6BH01-0BA0|6ES7 132-6BH01-2BA0
- Siemens - Siemens S7-1500: 6ES7 511-1CK00-0AB0|6ES7 512-1CK00-0AB0|6ES7 521-1BH00-0AA0|6ES7 521-1BH10-0AA0|6ES7 521-1BL00-0AB0|6ES7 521-1BL10-0AA0|6ES7 521-1BP00-0AA0|6ES7 522-1BH00-0AB0|6ES7 522-1BH01-0AB0|6ES7 522-1BH10-0AA0|6ES7 522-1BL00-0AB0|6ES7 522-1BL01-0AB0|6ES7 522-1BL10-0AA0|6ES7 522-1BP00-0AA0|6ES7 523-1BL00-0AA0|6ES7 526-1BH00-0AB0
- Siemens - Siemens S7-300: 6ES7 313-5BE01-0AB0|6ES7 313-5BG04-0AB0|6ES7 313-6BE01-0AB0|6ES7 313-6BF03-0AB0|6ES7 313-6CE01-0AB0|6ES7 313-6CF03-0AB0|6ES7 314-6BF01-0AB0|6ES7 314-6BG03-0AB0|6ES7 314-6CF01-0AB0|6ES7 314-6CG03-0AB0|6ES7 321-1BH02-0AA0|6ES7 321-1BH10-0AA0|6ES7 321-1BH80-0AA0|6ES7 321-1BL00-0AA0|6ES7 321-1BL80-0AA0|6ES7 321-1BP00-0AA0|6ES7 321-7BH01-0AB0|6ES7 321-7BH80-0AA0|6ES7 322-1BH01-0AA0|6ES7 322-1BH10-0AA0|6ES7 322-1BH80-0AA0|6ES7 322-1BL00-0AA0|6ES7 322-1BP00-0AA0|6ES7 322-1EH01-0AA0|6ES7 322-8BH01/8BH10-0AB0|6ES7 323-1BL00-0AA0|6ES7 326-1BK01-0AB0|6ES7 326-1RF00-0AB0
- Siemens - Siemens S7-400: 6ES7 421-1BL01-0AA0|6ES7 421-7BH01-0AB0|6ES7 422-1BL00-0AA0|6ES7 422-7BL00-0AB0
- WAGO - WAGO I/O System 750: 750-1400|750-1500|750-1502
- WAGO - WAGO I/O System 753: 753-430 (x2)|753-431 (x2)|753-530 (x2)
Connection data
- Connection 1 - Connection type 1: System
- Connection 1 - Mating direction: vertical
- Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
- Connection 1 - Pluggable connector: DIN 41651 connector; male connector
- Connection 1 - Pole number 1: 20
- Connection 2 - Connection type: Field
- Connection 2 - Design 2: PCB terminal blocks (double-deck)
- Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 2 - Pole number 2: 16
- Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
- Connection 2 - WAGO connector 2: WAGO 736 Series
- Connection 3 - Connection type: Power supply
- Connection 3 - Design 3: PCB terminal blocks (double-deck)
- Connection 3 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 3 - Pole number 3: 6
- Connection 3 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 3 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
- Connection 3 - WAGO connector 3: WAGO 736 Series
Electrical data
- Circuit type: 1-wire connection|1-cond. connection
- Current consumption (status indication): 5mA
- Inputs/outputs: 16-channel digital input or output
- Internal fuse: 2 A
- Limiting continuous current: 1 A
- Nominal operating voltage: 24 VDC
- Operating voltage range: ±10 %
- Status indicator: Green LED (channel)|Yellow LED (power supply)
- Total current: 2A
Environmental Product Compliance
- RoHS Compliance Status: Compliant,No Exemption
Environmental requirements
- Ambient temperature (operation): -20 … +50 °C
- Ambient temperature (storage): -40 … +70 °C
- Relative humidity: ≤ 85 % (non-condensing)
Material data
- Fire load: 1.474MJ
- Weight: 80g
Mechanical data
- Mounting type: DIN-35 rail
Physical data
- Depth from upper-edge of DIN-rail: 50 mm / 1.969 inches
- Height: 85 mm / 3.346 inches
- Width: 55 mm / 2.165 inches
Safety and protection
- Pollution degree: 2
- Rated impulse withstand voltage: 0.8kV
- Rated voltage: 50V
