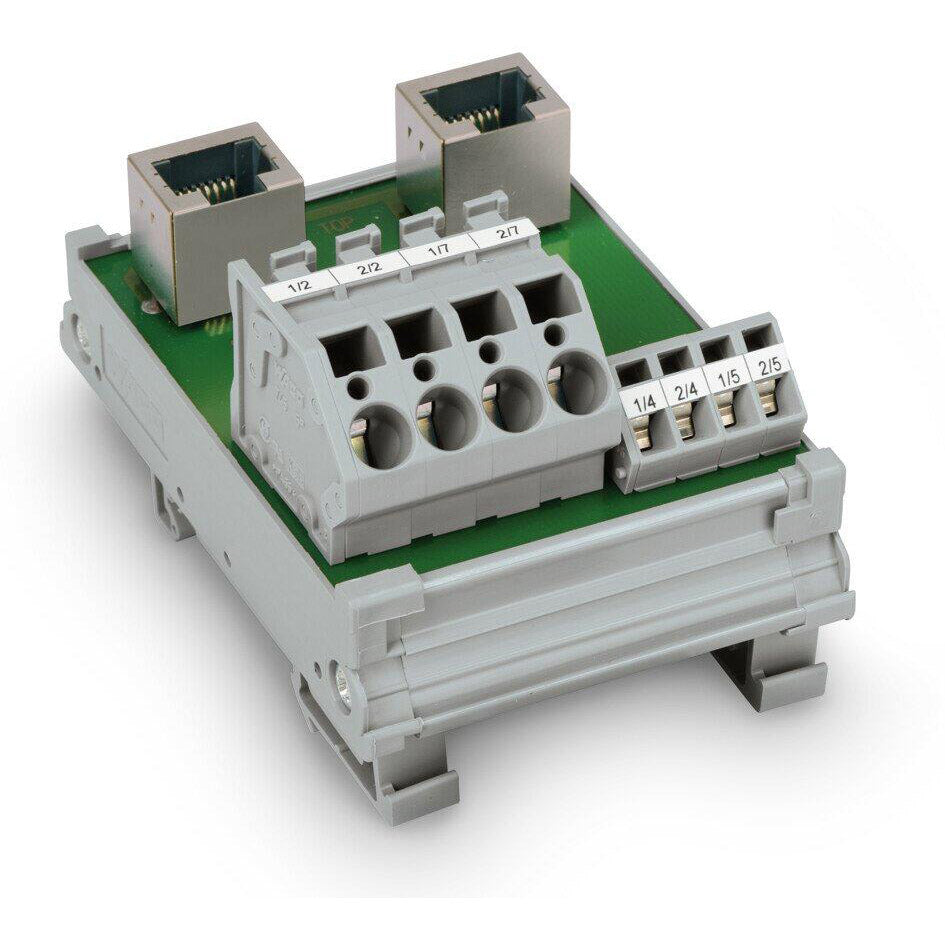

Interface module for current sensr. with shielded connection - in mounting carrier - WAGO (289 series) - 8-poles (8P) - with RJ45 8-pin connector (system) x 2 + spring CAGE CLAMP 8-pin for 0.08...2.5mm2 cables + spring CAGE CLAMP 4-pin for 0.2...6mm2 cables - Rated current 1.5A - DIN-35 rail mounting (69mm width) - rated for -20°C...+85°C ambient - equivalent to 289966

Specifications

• Primary brand: WAGO
• Functions: Interface module for current sensr.
• Design: shielded connection|in mounting carrier|500 mating cycles
• Poles: 8-poles (8P)
• Rated current: 1.5A
• Connection type: RJ45 8-pin connector (system) x 2|spring CAGE CLAMP 8-pin for 0.08...2.5mm2 cables|spring CAGE CLAMP 4-pin for 0.2...6mm2 cables
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W69mm x D40mm
• Net Width (mm): 69mm
• Ambient air temperature for operation: -20°C...+85°C
• eClass code: 27-44-03-02
• GTIN code: 4050821001218
• ETIM code: EC001132
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 289-966
• Manufacturer product status: Commercialized
• Equivalent to: 289966
• EAN code: 4050821001218
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Interface module for current sensr. - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-03-02
• eCl@ss 9.0: 27-44-03-02
• ETIM 8.0: EC001132
• ETIM 9.0: EC001132
• GTIN: 4050821001218
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 5 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: 2 x RJ-45 (shielded)
• Connection 1 - Pole number 1: 8
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Clamping units 2, 7
• Connection 2 - Design 2: PCB terminal blocks
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 8
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 236 Series
• Connection 3 - Connection technology: CAGE CLAMP^®
• Connection 3 - Connection type: Clamping units 4, 5
• Connection 3 - Design 3: PCB terminal blocks
• Connection 3 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 3 - Pole number 3: 4
• Connection 3 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 3 - Strip length: 11 … 12 mm / 0.43 … 0.47 inches
• Connection 3 - WAGO connector 3: WAGO 745 Series
• Connection cable: Shielded RJ-45 cable assembly (recommended: UTP, STP)
• Mating cycles: 500
• WAGO shield clamping saddle: 27 mm wide; cable diameter up to 24 mm

Electrical data

• Insulation resistance: ≥ 500 MΩ
• Nominal current: 1.5A
• Specialty functions: with shield connection|With shield clamping saddle

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +85 °C

Material data

• Fire load: 1.129MJ
• Weight: 106.9g

Mechanical data

• Housing design: Mounting carrier
• Mating cycles: 500
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 40 mm / 1.575 inches
• Height: 85 mm / 3.346 inches
• Width: 69 mm / 2.717 inches

Safety and protection

• Dielectric strength (contact/contact) (AC, 1 min): 0.5kV_rms
