Wago - 289-713

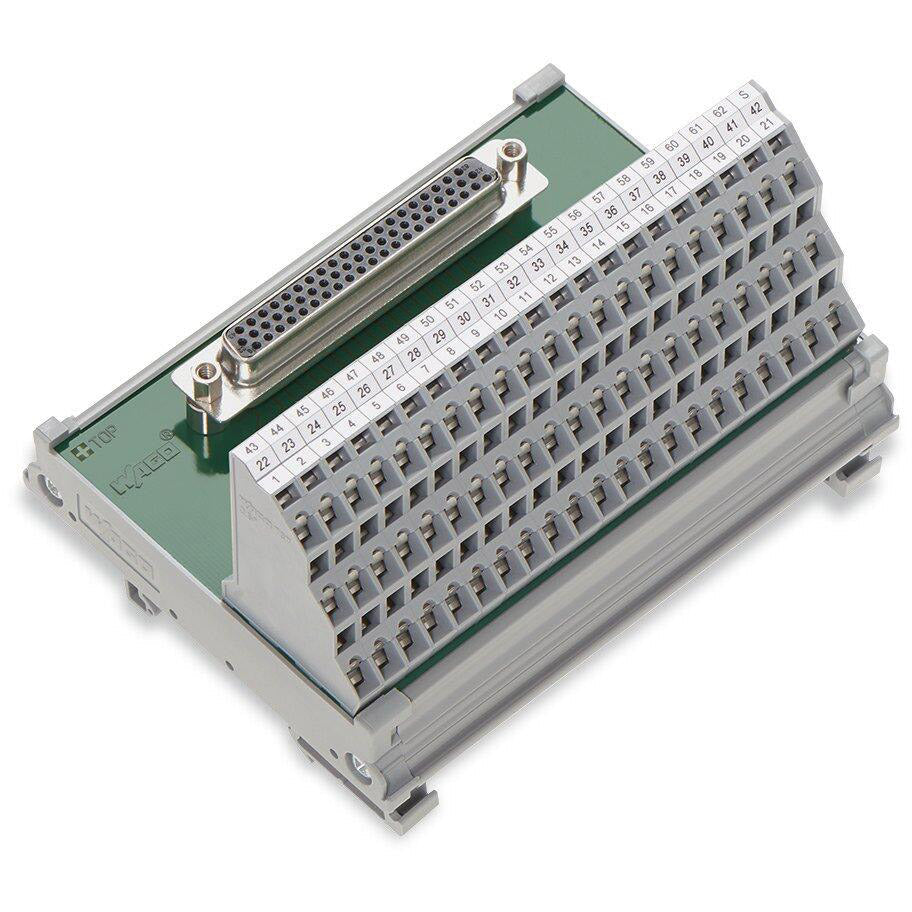

Interface module with shielded connection - in mounting carrier - WAGO (289 series) - 15-poles (15P) - with 15-pin D-sub female connector (system; vertical connection) + triple-deck spring CAGE CLAMP 15-pin for 0.08...2.5mm2 cables (field) - Rated current 1A - DIN-35 rail mounting (35mm width) - IP20 - rated for -20°C...+55°C ambient - equivalent to 289713

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: shielded connection|in mounting carrier
• Poles: 15-poles (15P)
• Rated current: 1A
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 125Vac
• Connection type: 15-pin D-sub female connector (system; vertical connection)|triple-deck spring CAGE CLAMP 15-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W35mm x D62mm
• Net Width (mm): 35mm
• Ambient air temperature for operation: -20°C...+55°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• GTIN code: 4050821087144
• eClass code: 27-14-11-52
• ETIM code: EC002780
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 289-713
• Manufacturer product status: Commercialized
• Equivalent to: 289713
• EAN code: 4050821087144
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4050821087144
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 8 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: HD D-sub female connector
• Connection 1 - Pole number 1: 15
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (triple-deck)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 15
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 737 Series
• Performance level: 3 / 50 mating cycles
• Strain relief: UNC 4-40 stud bolt

Electrical data

• Contact resistance (max.): 15 mΩ
• Nominal current: 1A
• Operating voltage: ≤ 125 VAC/VDC
• Specialty functions: With shield connection

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): c95a6f35-b2f0-47c4-a664-b3658bc08d13
• SCIP notification number (Belgium): 2a9229a8-3889-46a7-87b1-e3ba0d6ac5f6
• SCIP notification number (Bulgaria): d08853aa-4229-4edf-8280-af07da99eceb
• SCIP notification number (Czech Republic): b17f1923-3358-4c55-840e-a48d229ac76c
• SCIP notification number (Denmark): 28c155d8-2797-4a3a-ac6b-2a5986aed160
• SCIP notification number (Finland): dadd0681-3673-4584-8799-753fa0555da8
• SCIP notification number (France): 6175f76e-40b9-4a7c-bff2-898bede16ef2
• SCIP notification number (Germany): ef908b12-8079-498d-9541-2814979bdaef
• SCIP notification number (Hungary): 71ee567f-fb3e-4fd9-891b-01ea7c459ff1
• SCIP notification number (Italy): a5ed5c4e-425d-4510-ad67-b5b94f458fa2
• SCIP notification number (Netherlands): f7d0b08b-9682-4811-9ef7-d530bf6cdee9
• SCIP notification number (Poland): 25cb850a-9883-44c7-a15e-83e1390785e5
• SCIP notification number (Romania): fe30f22a-169c-4850-af30-bcb1b4f8cd0a
• SCIP notification number (Sweden): ea67cc89-9a63-4991-beb8-12dfd1fe9d6f

Environmental requirements

• Ambient temperature (operation): -20 … +55 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 0.861MJ
• Weight: 59.1g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 62 mm / 2.441 inches
• Height: 85 mm / 3.346 inches
• Width: 35 mm / 1.378 inches

Safety and protection

• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 125V

Standards and specifications

• Standards/specifications: EN 61010-2-201
