Wago - 289-714

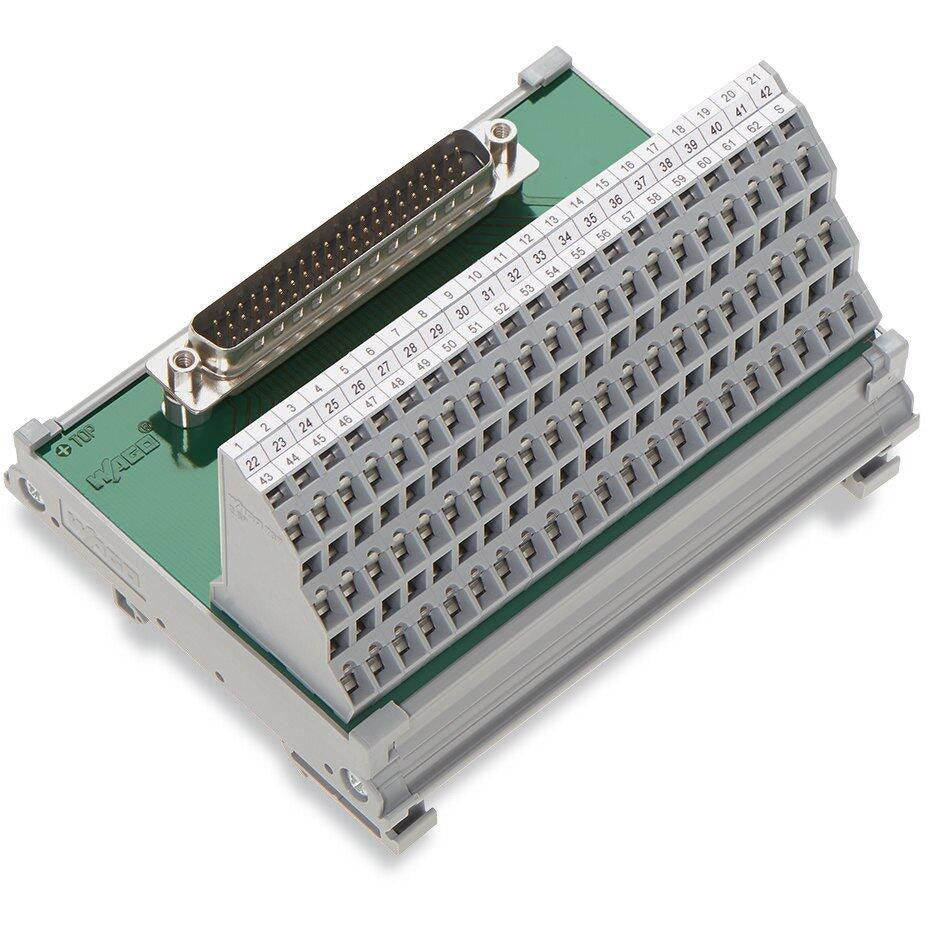

Interface module with shielded connection - in mounting carrier - WAGO (289 series) - 15-poles (15P) - with 15-pin D-sub male connector (system; vertical connection) + triple-deck spring CAGE CLAMP 15-pin for 0.08...2.5mm2 cables (field) - Rated current 1A - DIN-35 rail mounting (35mm width) - IP20 - rated for -20°C...+55°C ambient - equivalent to 289714

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: shielded connection|in mounting carrier
• Poles: 15-poles (15P)
• Rated current: 1A
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 125Vac
• Connection type: 15-pin D-sub male connector (system; vertical connection)|triple-deck spring CAGE CLAMP 15-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W35mm x D62mm
• Net Width (mm): 35mm
• Ambient air temperature for operation: -20°C...+55°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• ETIM code: EC002780
• GTIN code: 4050821279266
• eClass code: 27-14-11-52
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 289-714
• Manufacturer product status: Commercialized
• Equivalent to: 289714
• EAN code: 4050821279266
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4050821279266
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: HD D-sub male connector
• Connection 1 - Pole number 1: 15
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (triple-deck)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 15
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 737 Series
• Performance level: 3 / 50 mating cycles
• Strain relief: UNC 4-40 stud bolt

Electrical data

• Contact resistance (max.): 15 mΩ
• Nominal current: 1A
• Operating voltage: ≤ 125 VAC/VDC
• Specialty functions: With shield connection

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): d7964625-97c3-41f3-b36a-ad3747b4b153
• SCIP notification number (Belgium): 981bf0be-dce0-4acb-bac7-be4608ddcbc3
• SCIP notification number (Bulgaria): caa4594b-9d6b-45e3-9d01-b42e6ff826b3
• SCIP notification number (Czech Republic): 6025f74d-98f6-4688-8849-89cf42354136
• SCIP notification number (Denmark): 6ae91ee3-ee14-45f2-8ddb-957b35a13722
• SCIP notification number (Finland): 78963c26-611d-49dc-a6b3-e3b2738a9067
• SCIP notification number (France): 8a66027e-8bda-4bee-977e-498d6564db7b
• SCIP notification number (Germany): 2f3b8194-1410-429c-a597-f6a3ba300958
• SCIP notification number (Hungary): 596472d6-8e21-4956-84df-cdb916d0d3d6
• SCIP notification number (Italy): 4d23bbb3-e531-4b87-a98d-686f72cbb1b9
• SCIP notification number (Netherlands): c57105ee-e0bf-4c3a-ad76-adca89165e00
• SCIP notification number (Poland): e8cbc03e-7266-450c-9351-d18597502e93
• SCIP notification number (Romania): 038d858b-9c42-4b03-a2fd-1813d72d5fbf
• SCIP notification number (Sweden): f2e70c06-f0cc-4286-815e-eeee6dc42c3e

Environmental requirements

• Ambient temperature (operation): -20 … +55 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 0.861MJ
• Weight: 54.8g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 62 mm / 2.441 inches
• Height: 85 mm / 3.346 inches
• Width: 35 mm / 1.378 inches

Safety and protection

• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 125V

Standards and specifications

• Standards/specifications: EN 61010-2-201
