Wago - 289-708

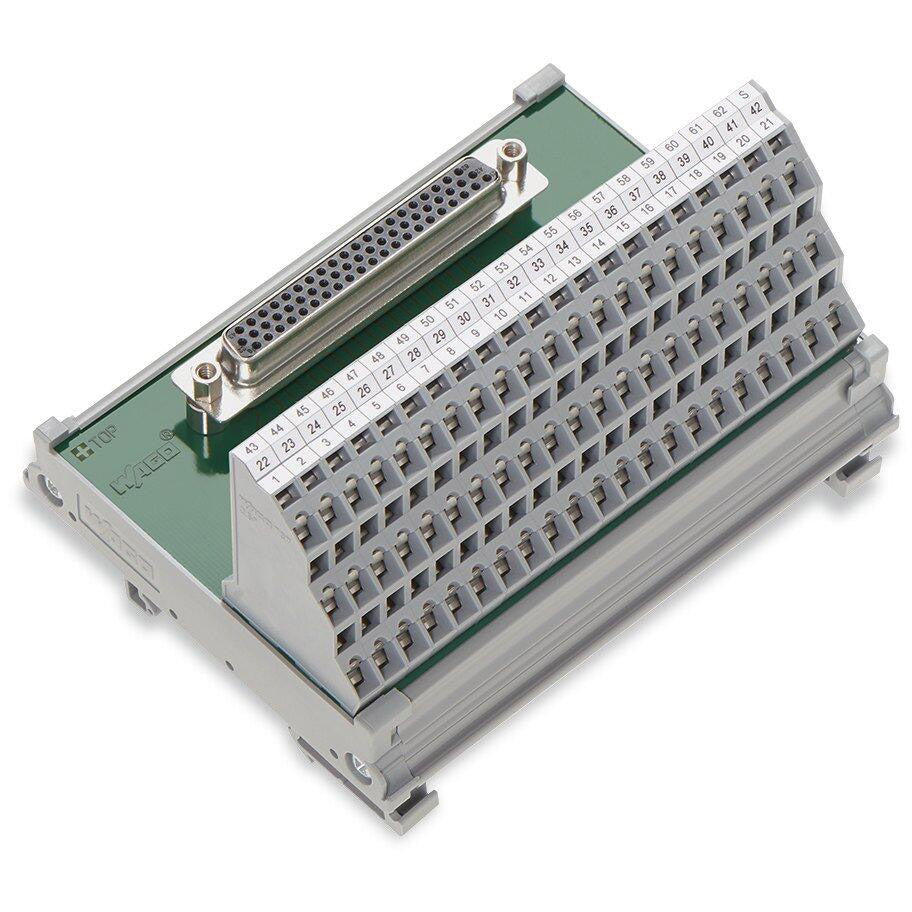

Interface module with shielded connection - in mounting carrier - WAGO (289 series) - 62-poles (62P) - with 62-pin HD-sub female connector (system; vertical connection) + triple-deck spring CAGE CLAMP 63-pin for 0.08...2.5mm2 cables (field) - Rated current 1A - DIN-35 rail mounting (108mm width) - IP20 - rated for -20°C...+55°C ambient - equivalent to 289708

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: shielded connection|in mounting carrier
• Poles: 62-poles (62P)
• Rated current: 1A
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 125Vac
• Connection type: 62-pin HD-sub female connector (system; vertical connection)|triple-deck spring CAGE CLAMP 63-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W108mm x D62mm
• Net Width (mm): 108mm
• Ambient air temperature for operation: -20°C...+55°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• eClass code: 27-14-11-52
• GTIN code: 4045454344290
• Customs Tariff Number: 85366990990
• ETIM code: EC002780
• Order code / Manufacturer SKU: 289-708
• Manufacturer product status: Commercialized
• Equivalent to: 289708
• EAN code: 4045454344290
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454344290
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 4 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: HD D-sub female connector
• Connection 1 - Pole number 1: 62
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (triple-deck)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 63
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 737 Series
• Performance level: 3 / 50 mating cycles
• Strain relief: UNC 4-40 stud bolt

Electrical data

• Contact resistance (max.): 15 mΩ
• Nominal current: 1A
• Operating voltage: ≤ 125 VAC/VDC
• Specialty functions: with shield connection

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 1e5ce9b9-17d4-4377-8cf6-556ed80a5aec
• SCIP notification number (Belgium): 51b48a1e-8a40-4fb6-a632-c6d69e7a4f12
• SCIP notification number (Bulgaria): 2dbcee9d-9514-4aff-9be7-a5ff49288052
• SCIP notification number (Czech Republic): f413615c-84c0-487a-bc12-4086eea9960c
• SCIP notification number (Denmark): 38233f9d-0a88-4738-a580-bf8dca358121
• SCIP notification number (Finland): 2d0a8196-9ce1-497e-a360-f0f55bcab57a
• SCIP notification number (France): 3733b35e-e1b5-48c9-8a75-3e7d57e879af
• SCIP notification number (Germany): 4ec45943-1c79-412b-a404-731273f26624
• SCIP notification number (Hungary): 8c534678-ebde-4f4e-ad2f-f96dfc02ef68
• SCIP notification number (Italy): c2f4b9cc-940b-429e-9223-5099a71a842c
• SCIP notification number (Netherlands): 107ad28f-a080-4ef2-bfff-570c906d1901
• SCIP notification number (Poland): 24f42d31-2901-45a7-9546-fac87f7756d1
• SCIP notification number (Romania): 7ba319ff-4a62-460d-92cb-571007920212
• SCIP notification number (Sweden): 71e04233-a4be-4af2-b787-18715e7b8328

Environmental requirements

• Ambient temperature (operation): -20 … +55 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 1.429MJ
• Weight: 172.5g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 62 mm / 2.441 inches
• Height: 85 mm / 3.346 inches
• Width: 108 mm / 4.252 inches

Safety and protection

• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 125V

Standards and specifications

• Standards/specifications: EN 61010-2-201
