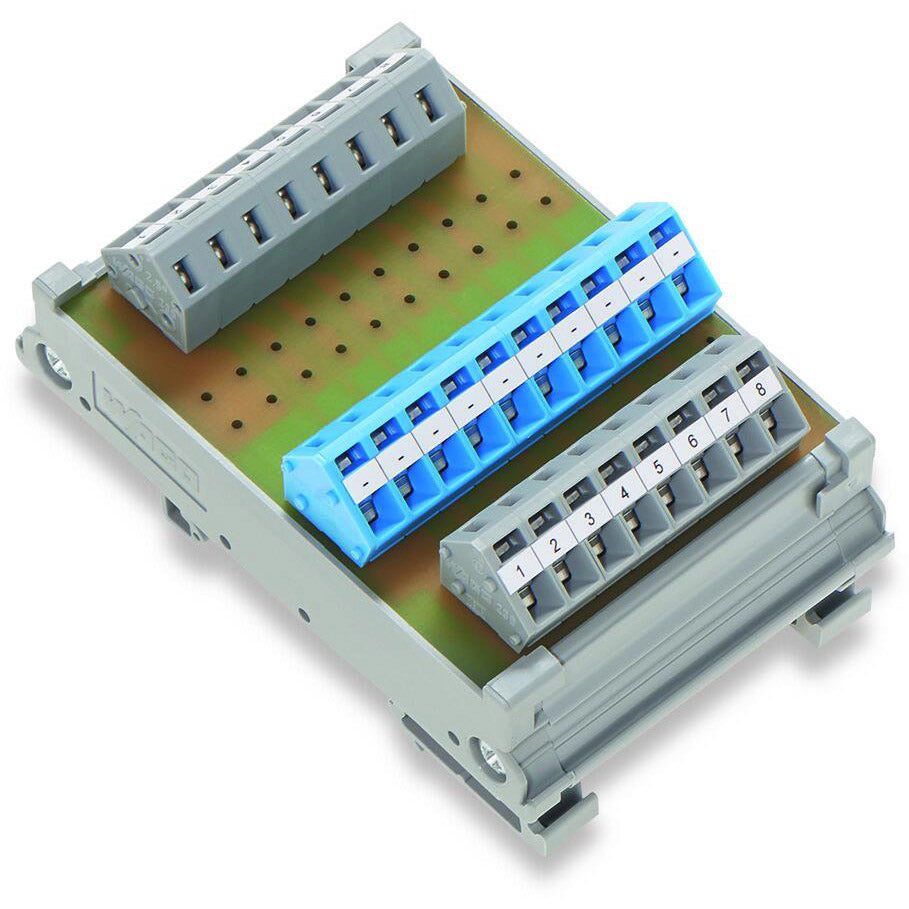

Wago - 289-667

Digital output interface module - in mounting carrier - WAGO (289 series) - with CAGE CLAMP spring connections - DIN-35 rail mounting (56mm width) - IP20 - rated for -20°C...+50°C ambient - equivalent to 289667

Specifications

• Primary brand: WAGO
• Functions: Digital output interface module
• Design: in mounting carrier
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 100Vac
• Connection type: CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Digital outputs: 8 x digital outputs
• Dimensions: H85mm x W56mm x D34mm
• Net Width (mm): 56mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• eClass code: 27-14-11-52
• ETIM code: EC002780
• Customs Tariff Number: 85369010000
• GTIN code: 4045454193331
• Order code / Manufacturer SKU: 289-667
• Manufacturer product status: Commercialized
• Equivalent to: 289667
• EAN code: 4045454193331
• Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Digital output interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454193331
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 5 (1) pcs

Connection data

• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: WAGO 236 Series
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 1 - WAGO connector: WAGO 236 Series

Electrical data

• Circuit type: 2-wire connection
• Inputs/outputs: 8-channel digital output
• Operating voltage: ≤ 100 VAC; ≤ 125 VDC
• Total current: 8A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Fire load: 1.011MJ
• Weight: 64g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 34 mm / 1.339 inches
• Height: 85 mm / 3.346 inches
• Width: 56 mm / 2.205 inches

Safety and protection

• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 1.5kV
• Rated voltage: 100V
