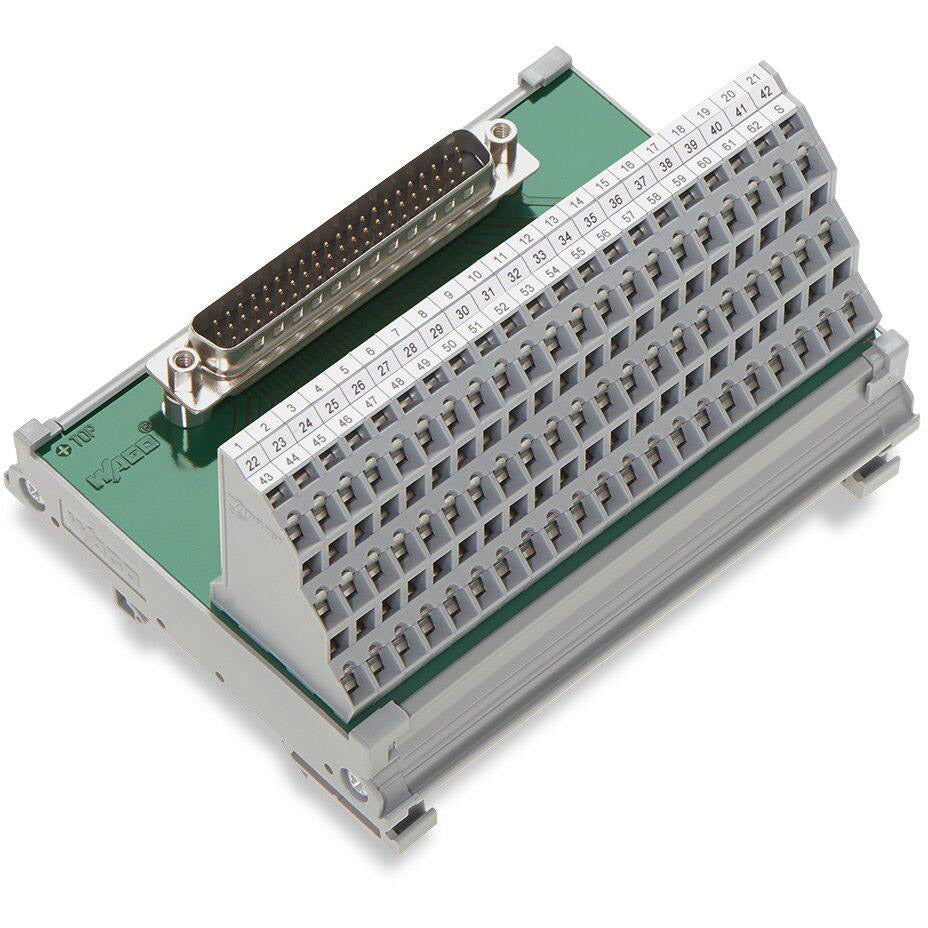

Interface module - in mounting carrier - WAGO (289 series) - 44-poles (44P) - with 44-pin HD-sub male connector (system; vertical connection) + triple-deck spring CAGE CLAMP 44-pin for 0.08...2.5mm2 cables (field) - Rated current 1A - DIN-35 rail mounting (79mm width) - IP20 - rated for -20°C...+55°C ambient - equivalent to 289597

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: in mounting carrier
• Poles: 44-poles (44P)
• Rated current: 1A
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 125Vac
• Connection type: 44-pin HD-sub male connector (system; vertical connection)|triple-deck spring CAGE CLAMP 44-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W79mm x D62mm
• Net Width (mm): 79mm
• Ambient air temperature for operation: -20°C...+55°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-52
• ETIM code: EC002780
• GTIN code: 4045454353551
• Order code / Manufacturer SKU: 289-597
• Manufacturer product status: Commercialized
• Equivalent to: 289597
• EAN code: 4045454353551
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454353551
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 4 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: HD D-sub male connector
• Connection 1 - Pole number 1: 44
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (triple-deck)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 44
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 737 Series
• Performance level: 3 / 50 mating cycles

Electrical data

• Contact resistance (max.): 15 mΩ
• Nominal current: 1A
• Operating voltage: ≤ 125 VAC/VDC
• Specialty functions: with shield connection

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 16263914-9eb6-49bc-aa28-0e1fba25980e
• SCIP notification number (Belgium): 9038331d-eea8-44c6-8272-a67e08503df3
• SCIP notification number (Bulgaria): 84cee0ba-b3ac-4301-8779-c10bd2eecc3d
• SCIP notification number (Czech Republic): 05484361-c8ae-4a7a-b3cb-3be3ea727a38
• SCIP notification number (Denmark): d1271ac5-606b-4d7d-8c53-67f27718707e
• SCIP notification number (Finland): 909d2086-450f-48e0-ac9e-ae7dad22b52e
• SCIP notification number (France): b76d4e0d-c3e6-49e7-8175-6556ff674da2
• SCIP notification number (Germany): 03fd5343-8011-4bbf-98cf-82b724563ee2
• SCIP notification number (Hungary): db70be68-2338-4483-872b-6387cf387f39
• SCIP notification number (Italy): 13b43b59-712b-44ae-9f49-caf1b66ea656
• SCIP notification number (Netherlands): b48e5fba-f58f-432b-a69d-e043c11dcf1d
• SCIP notification number (Poland): 12a67c48-2a5c-416f-854a-99c754f86387
• SCIP notification number (Romania): 4022a133-b8c9-4854-8817-773c83fe095b
• SCIP notification number (Sweden): c5248b12-0115-40e0-9583-0cd15c7a368a

Environmental requirements

• Ambient temperature (operation): -20 … +55 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 1.201MJ
• Weight: 128.9g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 62 mm / 2.441 inches
• Height: 85 mm / 3.346 inches
• Width: 79 mm / 3.11 inches

Safety and protection

• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 125V

Standards and specifications

• Standards/specifications: EN 61010-2-201
