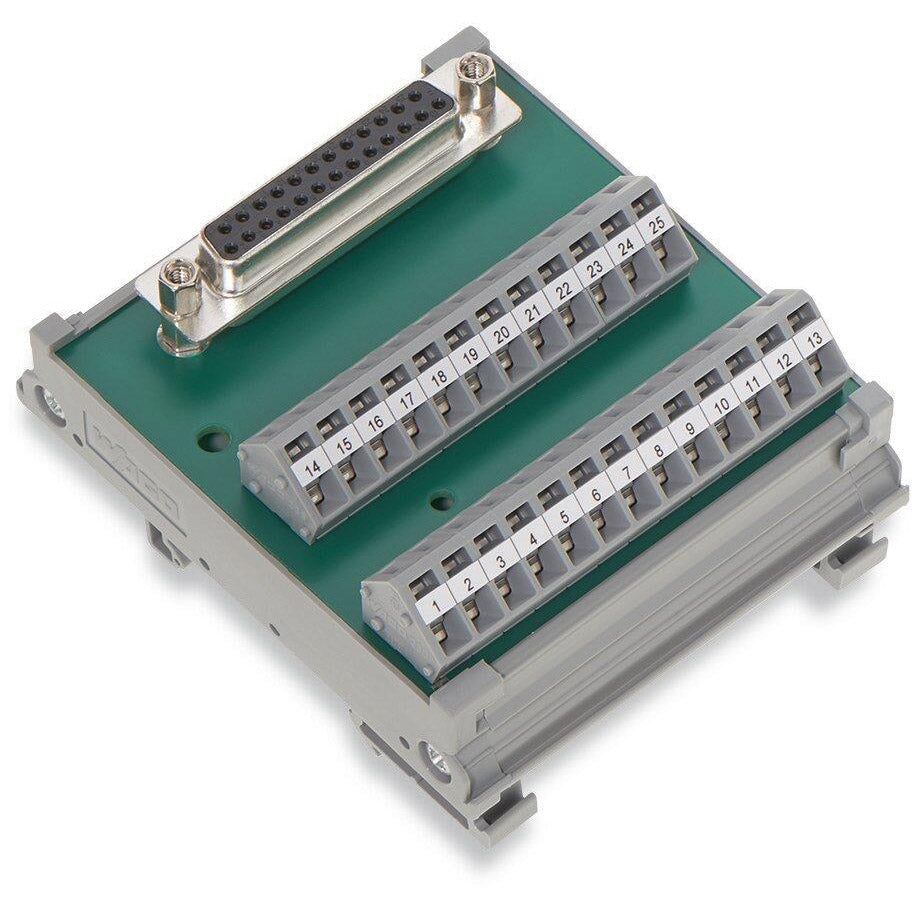

Interface module - in mounting carrier - WAGO (289 series) - 9-poles (9P) - with 9-pin D-sub female connector (system; vertical connection) + 2-row spring CAGE CLAMP 9-pin for 0.08...2.5mm2 cables (field) - Rated current 2A - DIN-35 rail mounting (38mm width) - IP20 - rated for -20°C...+50°C ambient - equivalent to 289555

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: in mounting carrier
• Poles: 9-poles (9P)
• Rated current: 2A
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 125Vac
• Connection type: 9-pin D-sub female connector (system; vertical connection)|2-row spring CAGE CLAMP 9-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W38mm x D34mm
• Net Width (mm): 38mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• GTIN code: 4045454371180
• ETIM code: EC002780
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-52
• Order code / Manufacturer SKU: 289-555
• Manufacturer product status: Commercialized
• Equivalent to: 289555
• EAN code: 4045454371180
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Vol.2 Sec.1|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454371180
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 8 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: D-subminiature female connector
• Connection 1 - Pole number 1: 9
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (double-row)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 9
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 236 Series
• Performance level: 2 / 200 mating cycles
• Strain relief: UNC 4-40 stud bolt

Electrical data

• Contact resistance (max.): 30 mΩ
• Nominal current: 2A
• Operating voltage: ≤ 125 VAC/VDC

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 0.892MJ
• Weight: 46.8g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 34 mm / 1.339 inches
• Height: 85 mm / 3.346 inches
• Width: 38 mm / 1.496 inches

Safety and protection

• Insulation type: Basic insulation
• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 125V

Standards and specifications

• Standards/specifications: EN 61010-2-201
