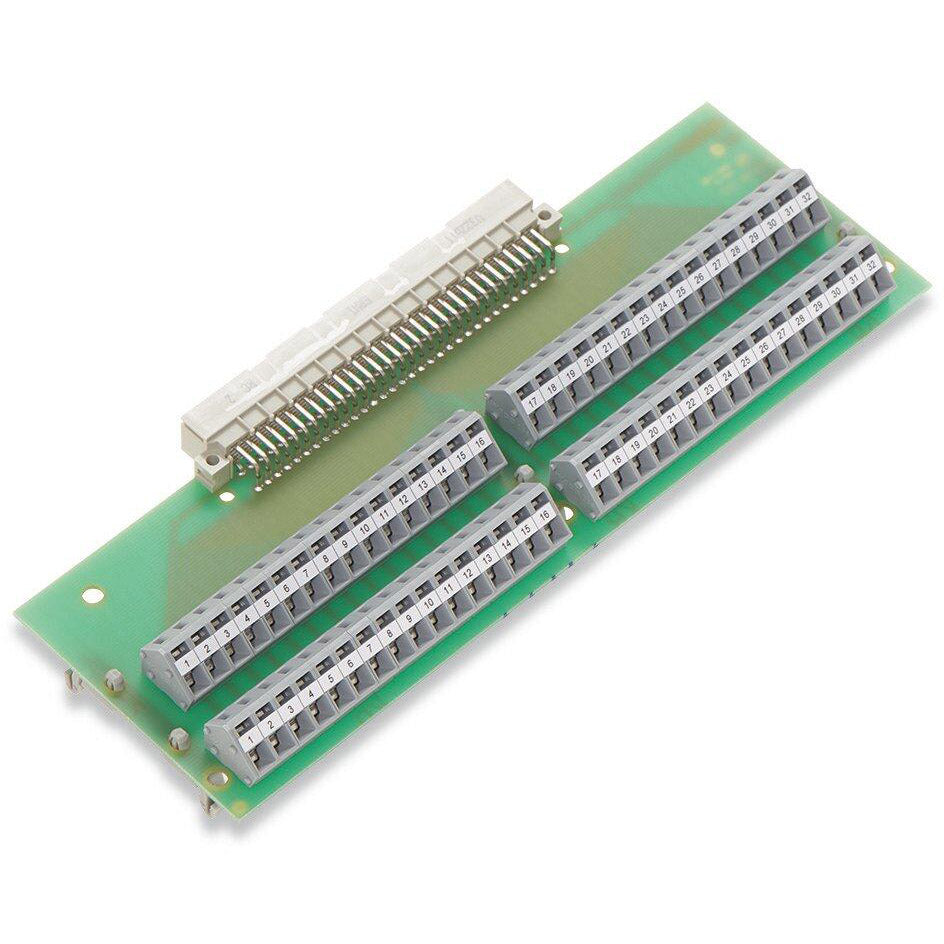

Interface module - stand-alone PCB with mounting feet - WAGO (289 series) - 64-poles (64P) - with DIN 41612 (Type C) 64-pin male connector (system; horizontal connection) + 2-row spring CAGE CLAMP 64-pin for 0.08...2.5mm2 cables (field) - Rated current 1A - DIN-35 rail mounting (187mm width) - rated for -20°C...+50°C ambient - equivalent to 289427

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: stand-alone PCB with mounting feet
• Poles: 64-poles (64P)
• Rated current: 1A
• Rated Voltage (DC): 50Vdc
• Rated voltage (AC): 30Vac
• Connection type: DIN 41612 (Type C) 64-pin male connector (system; horizontal connection)|2-row spring CAGE CLAMP 64-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H63.5mm x W187mm x D21mm
• Net Width (mm): 187mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85366990990
• ETIM code: EC002780
• eClass code: 27-14-11-52
• GTIN code: 4045454715922
• Order code / Manufacturer SKU: 289-427
• Manufacturer product status: Commercialized
• Equivalent to: 289427
• EAN code: 4045454715922
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454715922
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 5 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: horizontal
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: Pluggable connector per DIN 41612; Type C; Male connector
• Connection 1 - Pole number 1: 64
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (double-row)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 64
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 236 Series
• Performance level: 2 / 400 mating cycles

Electrical data

• Contact resistance (max.): 20 mΩ
• Nominal current: 1A
• Operating voltage: ≤ 30 VAC; ≤ 50 VDC

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Copper alloy; gold plated
• Fire load: 0.084MJ
• Weight: 107.6g

Mechanical data

• Housing design: PCB with mounting feet
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 21 mm / 0.827 inches
• Height: 63.5 mm / 2.5 inches
• Width: 187 mm / 7.362 inches

Safety and protection

• Pollution degree: 2
• Protection type: IP00
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 50V
