Wago - 289-174

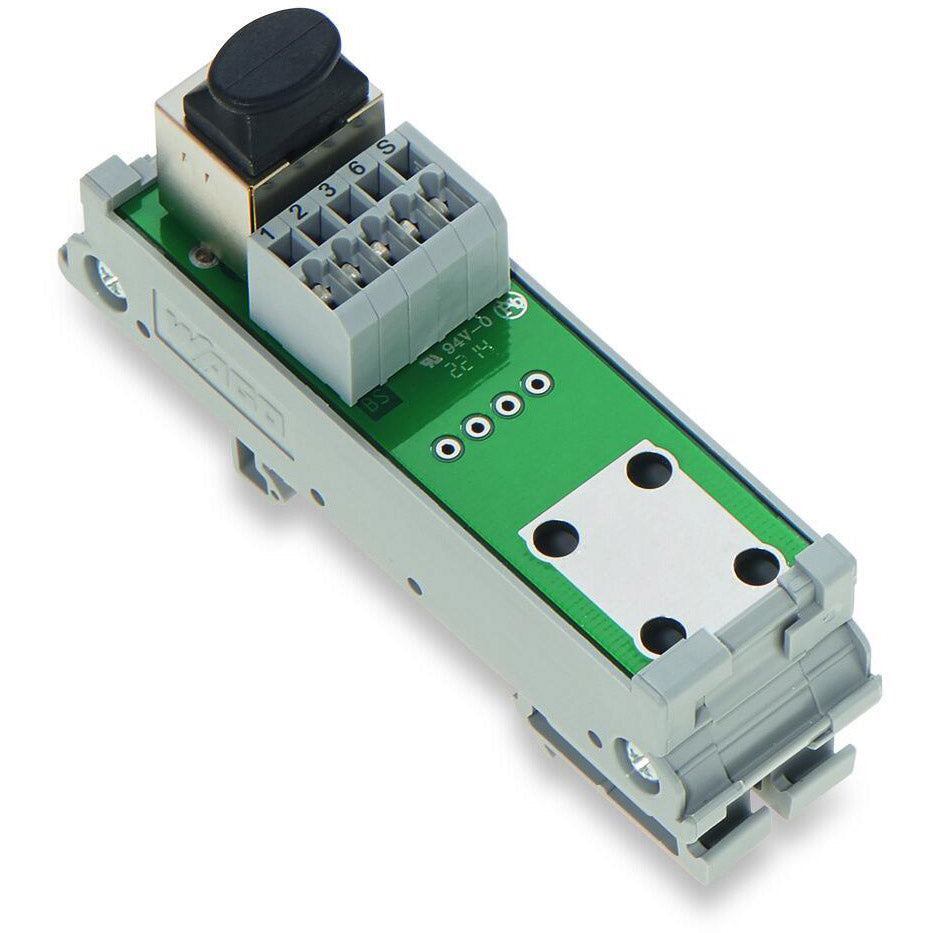

Interface module with shielded connection - in mounting carrier - WAGO (289 series) - 8-poles (8P) - with RJ45 8-pin connector (system) + spring CAGE CLAMP 5-pin for 0.08...1.5mm2 cables (system) - Rated current 1.5A - DIN-35 rail mounting (24mm width) - rated for -40°C...+85°C ambient - equivalent to 289174

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: shielded connection|in mounting carrier|500 mating cycles
• Poles: 8-poles (8P)
• Rated current: 1.5A
• Connection type: RJ45 8-pin connector (system)|spring CAGE CLAMP 5-pin for 0.08...1.5mm2 cables (system)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W24mm x D40mm
• Net Width (mm): 24mm
• Ambient air temperature for operation: -40°C...+85°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• GTIN code: 4045454317492
• Customs Tariff Number: 85366990990
• eClass code: 19-17-90-01
• ETIM code: EC001121
• Order code / Manufacturer SKU: 289-174
• Manufacturer product status: Commercialized
• Equivalent to: 289174
• EAN code: 4045454317492
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 19-17-90-01
• eCl@ss 9.0: 19-17-90-01
• ETIM 8.0: EC001121
• ETIM 9.0: EC001121
• GTIN: 4045454317492
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Pluggable connector: RJ-45 (shielded)
• Connection 1 - Pole number 1: 8
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: System
• Connection 2 - Design 2: PCB terminal blocks
• Connection 2 - Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Connection 2 - Pole number 2: 5
• Connection 2 - Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 739 Series
• Connection cable: Cat. 5 (min.)
• Mating cycles: 500
• Transmission length (max.): 100m

Electrical data

• Insulation resistance: ≥ 500 MΩ
• Nominal current: 1.5A
• Specialty functions: with shield connection

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +85 °C (Actuation: -35 … +85 °C)
• Ambient temperature (storage): -40 … +85 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Fire load: 0.776MJ
• Weight: 32.6g

Mechanical data

• Housing design: Mounting carrier
• Mating cycles: 500
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 40 mm / 1.575 inches
• Height: 85 mm / 3.346 inches
• Width: 24 mm / 0.945 inches

Safety and protection

• Dielectric strength (contact/contact) (AC, 1 min): 1kV_rms
