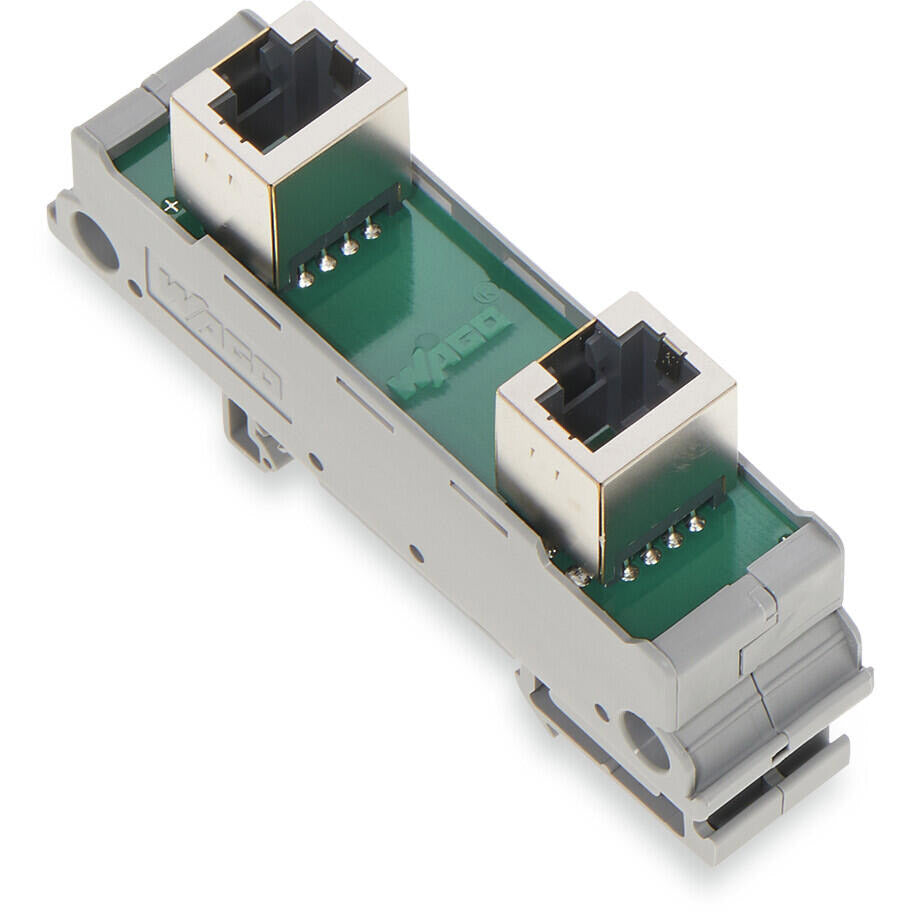

Wago - 289-172

Interface module - in mounting carrier - WAGO (289 series) - 8-poles (8P) - with RJ45 8-pin connector (system) x 2 - Rated current 1.5A - DIN-35 rail mounting (20.5mm width) - rated for -40°C...+85°C ambient - equivalent to 289172

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: in mounting carrier|500 mating cycles
• Poles: 8-poles (8P)
• Rated current: 1.5A
• Rated Voltage (DC): 42Vdc
• Rated voltage (AC): 30Vac
• Connection type: RJ45 8-pin connector (system) x 2
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W20.5mm x D38.5mm
• Net Width (mm): 20.5mm
• Ambient air temperature for operation: -40°C...+85°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• ETIM code: EC001121
• eClass code: 19-17-90-01
• GTIN code: 4045454317478
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 289-172
• Manufacturer product status: Commercialized
• Equivalent to: 289172
• EAN code: 4045454317478
• Compliant with standard(s): General approvals|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Vol.2 Sec.1|RoHS compliant
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 19-17-90-01
• eCl@ss 9.0: 19-17-90-01
• ETIM 8.0: EC001121
• ETIM 9.0: EC001121
• GTIN: 4045454317478
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 15 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Pluggable connector: RJ-45 (shielded)
• Connection 1 - Pole number 1: 8
• Connection 2 - Connection type: System
• Connection 2 - Connector 2: RJ-45 (shielded)
• Connection 2 - Pole number 2: 8
• Connection cable: Cat. 5 (min.)
• Mating cycles: 500
• Transmission length (max.): 100m

Electrical data

• Insulation resistance: ≥ 500 MΩ
• Nominal current: 1.5A
• Operating voltage: ≤ 30 VAC; ≤ 42 VDC

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +85 °C
• Ambient temperature (storage): -40 … +85 °C
• Ambient temperature UL (operation at U_N): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Fire load: 0.772MJ
• Weight: 28.3g

Mechanical data

• Housing design: Mounting carrier
• Mating cycles: 500
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 38.5 mm / 1.516 inches
• Height: 85 mm / 3.346 inches
• Width: 20.5 mm / 0.807 inches

Safety and protection

• Dielectric strength (contact/contact) (AC, 1 min): 1kV_rms
