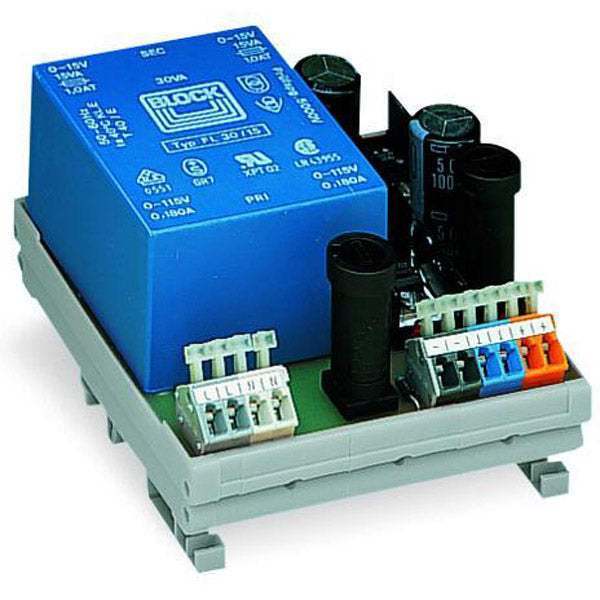

AC-to-DC stabilized power supply - WAGO (288 series) - +/-15Vdc (-15.6...-14.4Vdc / +14.4...-15.6Vdc) / 2 x 0.5A output - Input voltage 207-253Vac (230Vac) (Single-phase AC (1AC)) - with CAGE CLAMP spring connections - DIN-35 rail mounting (94mm width) - rated for 0°C...+40°C ambient - equivalent to 288815

Specifications

• Primary brand: WAGO
• Network frequency: 50-60Hz
• Functions: AC-to-DC stabilized power supply
• Supply voltage (AC): 207-253Vac (230Vac)
• Type of network: Single-phase AC (1AC)
• Rated current: 2 x 0.5A
• Output voltage (DC): +/-15Vdc (-15.6...-14.4Vdc / +14.4...-15.6Vdc)
• Connection type: CAGE CLAMP spring connections
• Protection functions: 2 x T 0.8A internal fuses
• Mounting mode: DIN-35 rail
• Dimensions: H106mm x W94mm x D57mm
• Net Width (mm): 94mm
• Ambient air temperature for operation: 0°C...+40°C
• GTIN code: 4050821155515
• ETIM code: EC002540
• Customs Tariff Number: 85044083900
• eClass code: 27-04-07-01
• Order code / Manufacturer SKU: 288-815
• Manufacturer product status: Commercialized
• Equivalent to: 288815
• EAN code: 4050821155515
• Compliant with standard(s): CE|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Ripple: 10mVpp (output voltage)
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: AC-to-DC stabilized power supply - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4050821155515
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector: WAGO 236 Series

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 318d28b4-169d-4049-8c49-476eddad18b8
• SCIP notification number (Belgium): 613a637d-4cf1-44f4-8aee-1f20e883f629
• SCIP notification number (Bulgaria): a52b8aa0-1e85-4b7b-9408-ae8bf205c29a
• SCIP notification number (Czech Republic): 188232d1-ecbb-4dab-b6c5-79a03e4c0ac1
• SCIP notification number (Denmark): 7eddfda7-823f-47b1-9428-8fd062091992
• SCIP notification number (Finland): 8ce47e0d-653c-44cc-acaf-383ddb7b871b
• SCIP notification number (France): 376a5b24-1909-4c4c-9a6d-eb10d31eba1f
• SCIP notification number (Germany): 4bde2143-59f5-4405-b2d5-7f34018fa910
• SCIP notification number (Hungary): 32cc4aa5-ea72-4a2b-a088-b314e0af0fec
• SCIP notification number (Italy): 6728f342-a3ef-4823-81a5-78826fd022e7
• SCIP notification number (Netherlands): 6f6c0920-8845-41ba-8cbf-7d755aa9a645
• SCIP notification number (Poland): f593958d-bc0f-4899-a114-ddbbc7836865
• SCIP notification number (Romania): 4a822f3e-e573-42a6-bc38-59de3d7e2a31
• SCIP notification number (Sweden): 64c53bfe-6174-4ed9-8e80-34ab7f8367dd

Environmental requirements

• Ambient temperature (operation): 0 … +40 °C

Material data

• Fire load: 1.401MJ
• Weight: 681.8g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 57 mm / 2.244 inches
• Height: 106 mm / 4.173 inches
• Width: 94 mm / 3.701 inches

Safety and protection

• Pollution degree: 2
• Protection class: III
• Protection type: IP00; per EN 60529
• Series operation: No

Standards and specifications

• Conformity marking: CE

Technical data

• Circuit protection - Internal fuse: 2 x T 0.8 A
• Efficiency/power losses - Power loss (max.) P_{l (max.)}: 27 W
• Input - Input voltage range: ±10 %
• Input - Nominal input voltage U_{i nom}: 1 x 230 VAC|1 x AC 230 V
• Input - Nominal mains frequency range: 50 … 60 Hz
• Input - Phases: 1
• Output - Nominal output current I_{o nom}: 2 x 0.5 A
• Output - Nominal output voltage U_{o nom}: 15 / -15 VDC
• Output - Output voltage range: ±4 %
• Output - Residual ripple: ≤ 10 mV (peak-to-peak)
