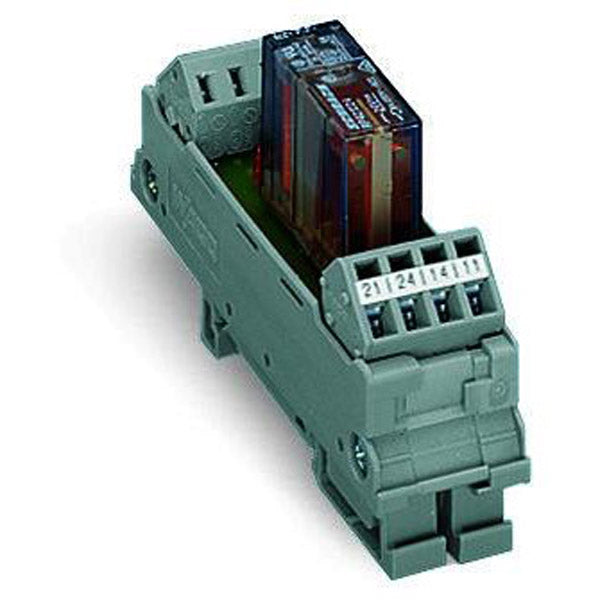

Wago - 288-512

Plug-in relay assembly with socket base - WAGO (288 series) - 2-poles (2P) - control voltage 21.6-26.4Vac (24Vac nom.; 0.9...1.1 x Uc)/21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc) - 2C/O / DPDT (Double Pole Double Throw) contact - Electromechanical design - Rated current 6A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (22.5mm width) - material Silver-Nickel (AgNi 0.15) contacts - equivalent to 288512

Specifications

• Primary brand: WAGO
• Functions: Plug-in relay assembly
• Design: socket base|Electromechanical design
• Poles: 2-poles (2P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 6A (continuous)|14A (4s) AC inrush maximum current
• Rated operating voltage (Ue): 250V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 2.5kV
• Connection type: CAGE CLAMP connections
• Control Voltage (AC): 21.6-26.4Vac (24Vac nom.; 0.9...1.1 x Uc)
• Control Voltage (DC): 21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc)
• Mounting mode: DIN-35 rail
• Response time: (OFF=>ON / contacts closing) 8ms / 0.008s|(ON=>OFF / contacts opening) 3ms / 0.003s
• Contacts type: 2C/O / DPDT (Double Pole Double Throw) contact
• Dimensions: H85mm x W22.5mm x D48mm|22.5mm width
• Material: Silver-Nickel (AgNi 0.15) contacts
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -40°C...+80°C
• Electrical durability (with load): 100 000operations
• Mechanical durability (at no load): 20 000 000operations
• eClass code: 27-37-16-01
• Customs Tariff Number: 85364900990
• GTIN code: 4045454413750
• ETIM code: EC001437
• Order code / Manufacturer SKU: 288-512
• Manufacturer product status: Commercialized
• Equivalent to: 288512
• EAN code: 4045454413750
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03080|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: China
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Plug-in relay assembly - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4045454413750
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector: WAGO 236 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +40 °C
• Ambient temperature (storage): -40 … +80 °C
• Processing temperature: -25 … +50 °C

Material data

• Color: gray
• Fire load: 1.172MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 48.2g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 48 mm / 1.89 inches
• Height: 85 mm / 3.346 inches
• Width: 22.5 mm / 0.886 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min): 1.5 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Pollution degree: 2
• Rated impulse withstand voltage: 2.5kV
• Rated voltage: 250V

Standards and specifications

• Standards/specifications: EN 61010-2-201

Technical data

• Control circuit - Input voltage range: ±10 %
• Control circuit - Nominal input current at U_N: 22 mA
• Control circuit - Nominal input voltage U_N: 24 VAC/VDC
• Load circuit - Bounce time (typ.): 2ms
• Load circuit - Contact material (relay): AgNi 0.15
• Load circuit - Drop-out time (typ.): 3ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 100 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 14 A / 4 s
• Load circuit - Limiting continuous current: 6 A
• Load circuit - Mechanical life: 20 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 2
• Load circuit - Pull-in time (typ.): 8ms
• Load circuit - Switching power (resistive) max.: AC 1500 VA
• Load circuit - Switching Voltage, Max.: 250 VAC
