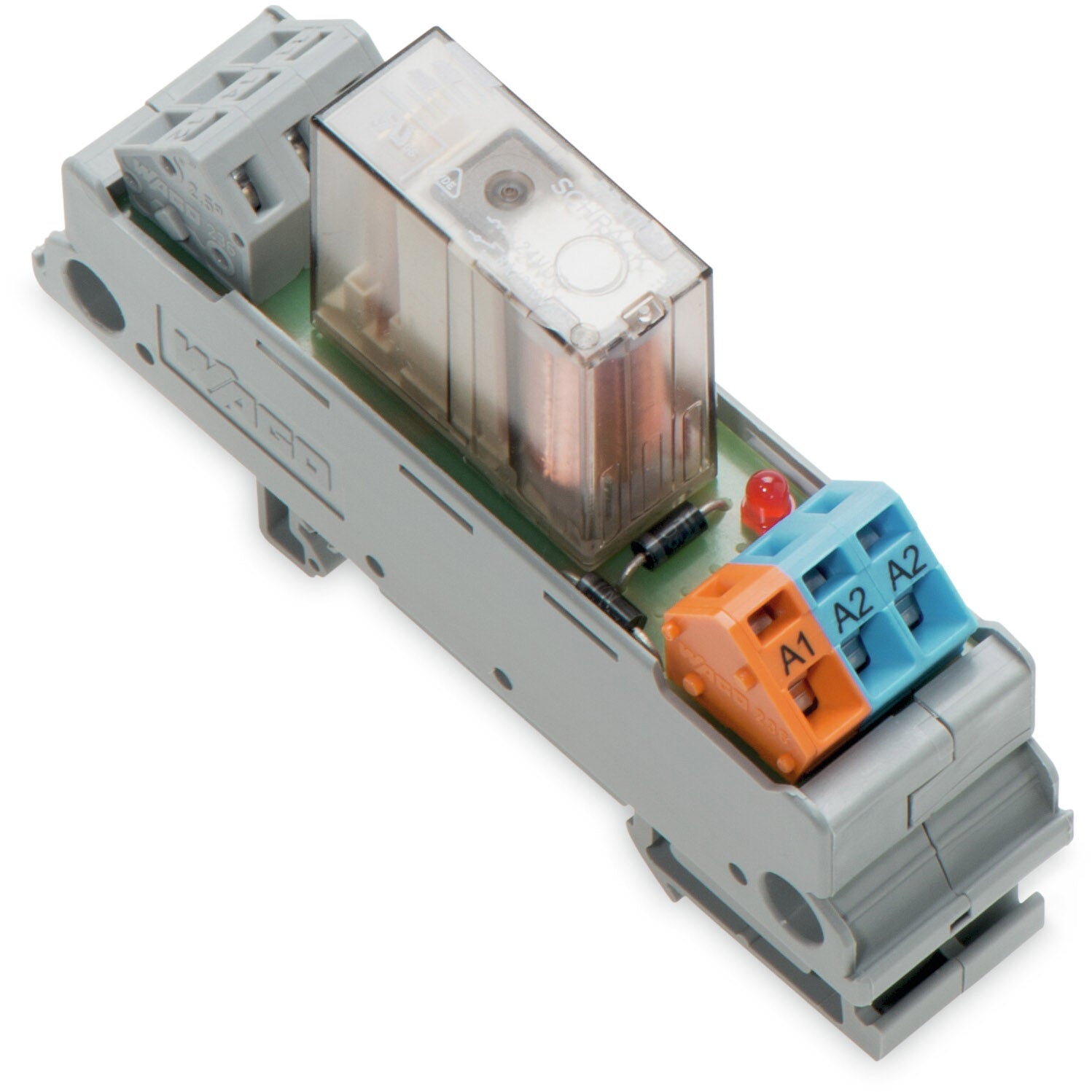

Wago - 288-504

Plug-in relay assembly with socket base - WAGO (288 series) - single-pole / 1-pole (1P) - control voltage 21.6-26.4Vac (24Vac nom.; 0.9...1.1 x Uc)/21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc) - 1C/O / SPDT (Single Pole Double Throw) contact - Electromechanical design - Rated current 6A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (20.5mm width) - material Silver-Nickel (AgNi 90/10) contacts - equivalent to 288504

Specifications

• Primary brand: WAGO
• Functions: Plug-in relay assembly
• Design: socket base|Electromechanical design
• Poles: single-pole / 1-pole (1P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 6A (continuous)|16A (4s) AC inrush maximum current
• Rated operating voltage (Ue): 300V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 2.5kV
• Connection type: CAGE CLAMP connections
• Control Voltage (AC): 21.6-26.4Vac (24Vac nom.; 0.9...1.1 x Uc)
• Control Voltage (DC): 21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc)
• Mounting mode: DIN-35 rail
• Response time: (OFF=>ON / contacts closing) 9ms / 0.009s|(ON=>OFF / contacts opening) 3ms / 0.003s
• Contacts type: 1C/O / SPDT (Single Pole Double Throw) contact
• Dimensions: H85mm x W20.5mm x D48mm|20.5mm width
• Material: Silver-Nickel (AgNi 90/10) contacts
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -40°C...+80°C
• Electrical durability (with load): 100 000operations
• Mechanical durability (at no load): 30 000 000operations
• eClass code: 27-37-16-01
• ETIM code: EC001437
• Customs Tariff Number: 85364900990
• GTIN code: 4055143559119
• Order code / Manufacturer SKU: 288-504
• Manufacturer product status: Commercialized
• Equivalent to: 288504
• EAN code: 4055143559119
• Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03080|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: China
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Plug-in relay assembly - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4055143559119
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 5 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector: WAGO 236 Series

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): c024fba9-4188-4127-bacb-a9f90db96385
• SCIP notification number (Belgium): efae4752-1ab1-4399-8ff6-edd4e73328c4
• SCIP notification number (Bulgaria): 5d8189a1-9eac-4135-8e14-44b02d721b1d
• SCIP notification number (Czech Republic): 50435791-35a5-4f61-a829-f97a4a78c2d3
• SCIP notification number (Denmark): 068cc4a1-be62-46a1-b09b-6c60a73b71a0
• SCIP notification number (Finland): 57b30845-058b-4220-8191-d3f37eb906bc
• SCIP notification number (France): 6c4629c1-c311-455c-a333-4484ac7a295b
• SCIP notification number (Germany): 0efaaed1-9d6f-460d-985b-4439ed1cd0b4
• SCIP notification number (Hungary): 4e2d74da-0e17-4710-826a-70dc0806c811
• SCIP notification number (Italy): c04d95da-c90e-43ee-b9a3-d4d89c940b91
• SCIP notification number (Netherlands): 71ecd37d-daa7-44c9-a7a4-a48acaaa7359
• SCIP notification number (Poland): 2354700b-0086-48c9-ac46-91756ca95906
• SCIP notification number (Romania): 862d41bf-248f-48f6-9b8a-90b50c403935
• SCIP notification number (Sweden): 9a647a66-17ff-4445-a6c5-08118537ed63

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +40 °C
• Ambient temperature (storage): -40 … +80 °C
• Processing temperature: -25 … +50 °C

Material data

• Color: gray
• Fire load: 1.179MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 40.9g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 48 mm / 1.89 inches
• Height: 85 mm / 3.346 inches
• Width: 20.5 mm / 0.807 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 4 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Pollution degree: 2
• Rated impulse withstand voltage: 2.5kV
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 60664-1

Technical data

• Control circuit - Input voltage range: ±10 %
• Control circuit - Nominal input current at U_N: 22 mA
• Control circuit - Nominal input voltage U_N: 24 VAC/VDC
• Load circuit - Bounce time (typ.): 2ms
• Load circuit - Contact material (relay): AgNi 90/10
• Load circuit - Drop-out time (typ.): 3ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 100 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 16 A / 4 s
• Load circuit - Limiting continuous current: 6 A
• Load circuit - Mechanical life: 30 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 1
• Load circuit - Pull-in time (typ.): 9ms
• Load circuit - Switching power (resistive) max.: AC 1500 VA
• Load circuit - Switching Voltage, Max.: 250 VAC
