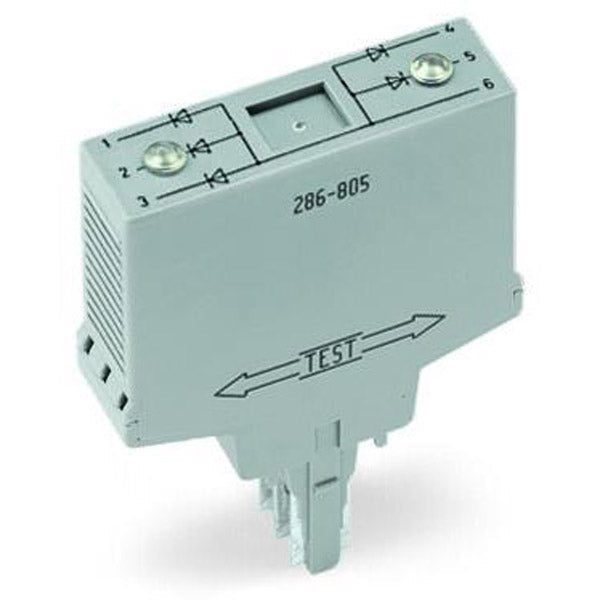

Component module with 5 x diodes (1N4007) + common anode - WAGO (286 series) - control voltage 250Vac/250Vdc - Gray color - with CAGE CLAMP spring connections - Plug-in mounting - equivalent to 286805

Specifications

• Primary brand: WAGO
• Functions: Component module
• Design: 5 x diodes (1N4007)|common anode
• Color: Gray
• Rated Voltage (DC): 250Vdc
• Rated voltage (AC): 250Vac
• Connection type: CAGE CLAMP spring connections
• Control Voltage (AC): 250Vac
• Control Voltage (DC): 250Vdc
• Mounting mode: Plug-in
• Dimensions: H52mm x W15mm x D82.5mm
• Ambient air temperature for operation: -25°C...+40°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85369010000
• ETIM code: EC002024
• eClass code: 27-37-12-92
• GTIN code: 4045454198060
• Order code / Manufacturer SKU: 286-805
• Manufacturer product status: Commercialized
• Equivalent to: 286805
• EAN code: 4045454198060
• Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Component module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-12-92
• eCl@ss 9.0: 27-37-92-16
• ETIM 8.0: EC002024
• ETIM 9.0: EC002024
• GTIN: 4045454198060
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 15 (1) pcs

Electrical data

• Number/type of diode/LED: 5 diodes
• Operating voltage: ≤ 250 VAC/VDC
• Peak reverse voltage: 1000V
• Rectified current for each diode (resistive): 1A|1A
• Type of diode: 1N4007; with common anode

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 68a24144-3530-432b-b35e-edea28797291
• SCIP notification number (Belgium): d82e3c24-0734-416c-843e-14f137dc0d4e
• SCIP notification number (Bulgaria): f4557550-1bea-482b-a069-84d0db54f207
• SCIP notification number (Czech Republic): aee523c8-f788-450c-a8c4-e4d1e6d5b960
• SCIP notification number (Denmark): 0da64124-34a7-49dc-9ed2-5d1f575268be
• SCIP notification number (Finland): 2dfda91a-ec06-453e-82c1-17ff9f6ba701
• SCIP notification number (France): d7483564-8d41-4fc7-a4d7-97b69a99b97b
• SCIP notification number (Germany): efdaad11-8764-483c-9ef1-0eb656f244d5
• SCIP notification number (Hungary): f993cac8-3a2a-43a3-be68-5c0c979c5be6
• SCIP notification number (Italy): 42939061-ac06-448d-ba27-9305d08ee241
• SCIP notification number (Netherlands): f93cb999-fbc8-4ed9-8be5-ff20439b20d8
• SCIP notification number (Poland): 7c2cf2e7-77e2-4801-9b71-f23d2175fe06
• SCIP notification number (Romania): 65b37b89-0996-4545-a5cf-c6ccc6081c2c
• SCIP notification number (Sweden): 9cef1bbc-a6a6-4ff1-b678-730061022922

Environmental requirements

• Ambient temperature (operation): -25 … +40 °C
• Operating altitude (max.): 2000m
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Color: gray
• Fire load: 0.346MJ
• Weight: 18.7g

Mechanical data

• Housing design: Plug for carrier terminal blocks
• Mounting type: Pluggable module for receptacle terminal blocks

Notes

• Note: Max. permissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A.

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.25 inches
• Height: 52 mm / 2.047 inches
• Note (dimensions): Depth including carrier terminal block
• Width: 15 mm / 0.591 inches

Safety and protection

• Pollution degree: 2
• Rated impulse withstand voltage: 4kV
• Rated voltage: 250V
