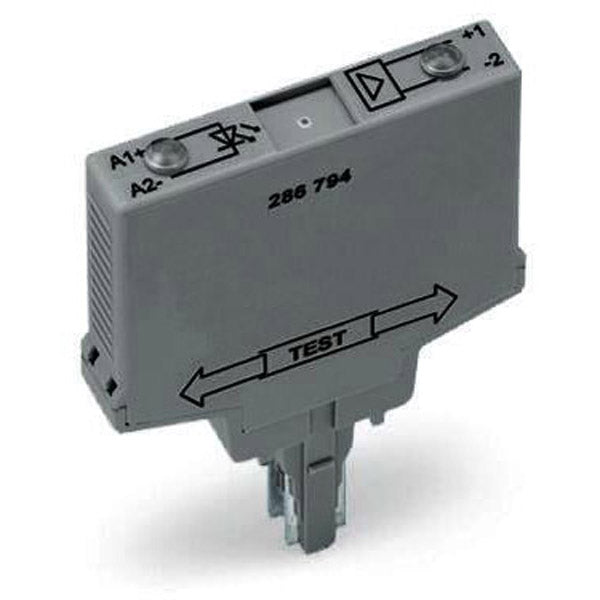

Wago - 286-794

Replacement plug-in solid-state / static relay (SSR) module - 2-wire connection - WAGO (286 series) - single-pole / single-phase / 1-pole (1P) - control voltage 18-30Vdc (24Vdc nom.) - Rated voltage 20Vdc-60Vdc output - Rated current 0.1A (continuous) - with plug-in connections - Plug-in mounting - IP20 - equivalent to 286794

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in solid-state / static relay (SSR) module
• Design: 2-wire connection
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 1.5kHz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 0.1A (continuous)
• Rated Voltage (DC): 20Vdc-60Vdc output
• Connection type: plug-in connections
• Control Voltage (DC): 18-30Vdc (24Vdc nom.)
• Mounting mode: Plug-in
• Response time: (switching ON) 80μs / 0.00008s|(switching OFF) 100μs / 0.0001s
• Dimensions: H82.5mm x W10mm x D52mm
• Ambient air temperature for operation: -25°C...+60°C
• Ambient air temperature for storage: -25°C...+40°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• eClass code: 27-26-15-03
• ETIM code: EC001504
• Customs Tariff Number: 85365005000
• GTIN code: 4045454586218
• Order code / Manufacturer SKU: 286-794
• Manufacturer product status: Commercialized
• Equivalent to: 286794
• EAN code: 4045454586218
• Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|RoHS compliant with exemption (7(c)-I)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in solid-state / static relay (SSR) module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4045454586218
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 25 (1) pcs

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8
• REACH Candidate List Substance: Diboron trioxide|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(c)-I
• SCIP notification number (Austria): f54b28c9-4c92-44cb-b8d7-7b59e777376a
• SCIP notification number (Belgium): 9b24cf1a-1864-42b0-b01f-d2095c5fe557
• SCIP notification number (Bulgaria): 173c4e10-4ca6-4661-8778-35cab922570e
• SCIP notification number (Czech Republic): 06434e36-91e4-4d82-aa08-0b38ce9e1ca1
• SCIP notification number (Denmark): 1237ca67-e490-4514-ba5d-10a1b57cf759
• SCIP notification number (Finland): 27854738-407e-4b59-a537-83e008675445
• SCIP notification number (France): 3a3be8f5-749c-4abe-af8f-4415548150ff
• SCIP notification number (Germany): cbbbf94c-8fe6-4ff1-b393-70d51391537d
• SCIP notification number (Hungary): 600ddbb4-d8bb-4e51-8864-75af22716710
• SCIP notification number (Italy): 15c98fb6-bcb0-4148-b90e-ed2b61cf119b
• SCIP notification number (Netherlands): ded82c66-e9b0-4d9b-a46a-de31f8a64e0a
• SCIP notification number (Poland): d79ba95b-93b2-4a22-8ca8-fc5a16b9ce05
• SCIP notification number (Romania): 5ecf1c91-69ec-4a83-b068-6d2f348f925b
• SCIP notification number (Sweden): 8a4e69e9-e7aa-4c40-a0a0-8c16f31d4d41

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +60 °C
• Ambient temperature (storage): -25 … +40 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Color: gray
• Fire load: 7.69MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 16.3g

Mechanical data

• Mounting type: Pluggable module for receptacle terminal blocks

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.25 inches
• Height: 52 mm / 2.047 inches
• Note (dimensions): Depth including carrier terminal block
• Width: 10 mm / 0.394 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
• Pollution degree: 2
• Protection type: IP20

Standards and specifications

• Standards/specifications: EN 60664-1

Technical data

• Control circuit - Input voltage range (high level): 18 … 30 VDC
• Control circuit - Nominal input current at U_N: 4 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Circuit type: 2-wire connection
• Load circuit - Leakage current at rated voltage: ≤ 2 µA
• Load circuit - Limiting continuous current: 0.1 A
• Load circuit - Output voltage range: 20 … 60 VDC
• Load circuit - Switching frequency: ≤ 1.5 kHz
• Load circuit - Turn-off time: ≤ 100 µs
• Load circuit - Turn-on time: ≤ 80 µs
• Load circuit - Voltage drop: ≤ 2 VDC
