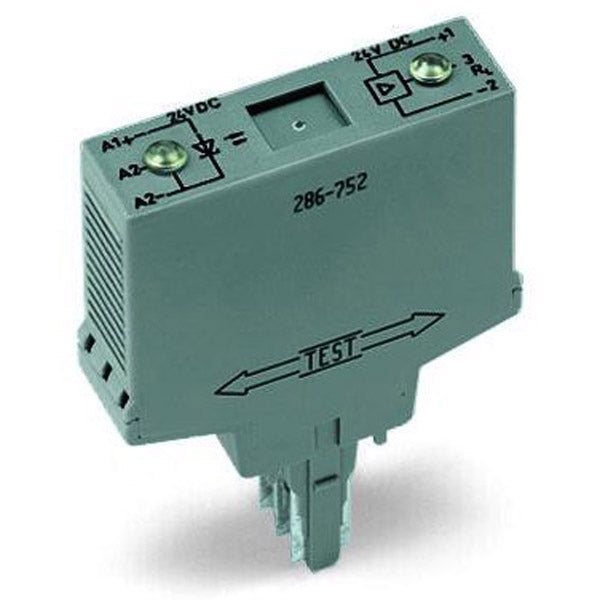

Replacement plug-in solid-state / static relay (SSR) module with red LED - 3-wire connection - high-side switching - WAGO (286 series) - single-pole / single-phase / 1-pole (1P) - control voltage 12-30Vdc (24Vdc nom.) - Rated voltage 20Vdc-30Vdc (24Vdc nom.) output - Rated current 0.5A (continuous) - with plug-in connections - Plug-in mounting - IP20 - equivalent to 286752

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in solid-state / static relay (SSR) module
• Design: red LED|3-wire connection|high-side switching
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 25kHz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 0.5A (continuous)
• Rated Voltage (DC): 20Vdc-30Vdc (24Vdc nom.) output
• Connection type: plug-in connections
• Control Voltage (DC): 12-30Vdc (24Vdc nom.)
• Mounting mode: Plug-in
• Response time: (switching ON) 7μs / 0.000007s|(switching OFF) 15μs / 0.000015s
• Dimensions: H82.5mm x W15mm x D52mm
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -25°C...+40°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85365005000
• eClass code: 27-26-15-03
• ETIM code: EC001504
• GTIN code: 4050821336822
• Order code / Manufacturer SKU: 286-752
• Manufacturer product status: Commercialized
• Equivalent to: 286752
• EAN code: 4050821336822
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in solid-state / static relay (SSR) module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4050821336822
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 15 (1) pcs

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 91c1bc41-7f23-4667-afab-1cc8f397041d
• SCIP notification number (Belgium): 59291bb7-6715-4305-a6ac-026289a37a78
• SCIP notification number (Bulgaria): 255f7aa0-44c5-401b-943a-3e32845efa29
• SCIP notification number (Czech Republic): 0a60f7e5-d3eb-4841-b400-86b097208136
• SCIP notification number (Denmark): a8414404-fd30-4c66-b614-558f629f3637
• SCIP notification number (Finland): 49f1cbac-9b0e-49c7-a3b1-0ac95a75ae93
• SCIP notification number (France): 5a2a1ac6-6d57-4011-987e-3202499d4f2e
• SCIP notification number (Germany): f210cda7-dc0e-44ad-9f72-3dc9df4c7252
• SCIP notification number (Hungary): d26508ba-dd8e-402b-bdc2-a81578b97b19
• SCIP notification number (Italy): 569a7147-d641-49c5-bd6c-8e4c014389c6
• SCIP notification number (Netherlands): bbd1ca30-ce5a-49e7-9b83-a33be4155078
• SCIP notification number (Poland): 55c44a10-dd13-47ed-a114-f18073a715ad
• SCIP notification number (Romania): ccf66361-736c-407a-9a99-67910f4339c7
• SCIP notification number (Sweden): 5bbb2d29-129b-4c9f-9b06-535236c358e5

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +40 °C
• Ambient temperature (storage): -25 … +40 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Color: gray
• Fire load: 0.345MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 17.9g

Mechanical data

• Mounting type: Pluggable module for receptacle terminal blocks

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.25 inches
• Height: 52 mm / 2.047 inches
• Note (dimensions): Depth including carrier terminal block
• Width: 15 mm / 0.591 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 3 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 60664-1

Technical data

• Control circuit - Input current range: 5 … 20 mA
• Control circuit - Input voltage range (high level): 12 … 30 VDC
• Control circuit - Nominal input current at U_N: 15 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Circuit type: 3-wire connection|High-side switching
• Load circuit - Leakage current at rated voltage: ≤ 2 µA
• Load circuit - Limiting continuous current: 0.5 A
• Load circuit - Nominal output voltage: 24 VDC
• Load circuit - Output closed-circuit current (without load) max.: 12mA
• Load circuit - Output voltage range: 20 … 30 VDC
• Load circuit - Switching frequency: ≤ 25 kHz
• Load circuit - Turn-off time: ≤ 15 µs
• Load circuit - Turn-on time: ≤ 7 µs
• Load circuit - Voltage drop: ≤ 1.2 VDC
• Signaling - Status indicator: Red LED
