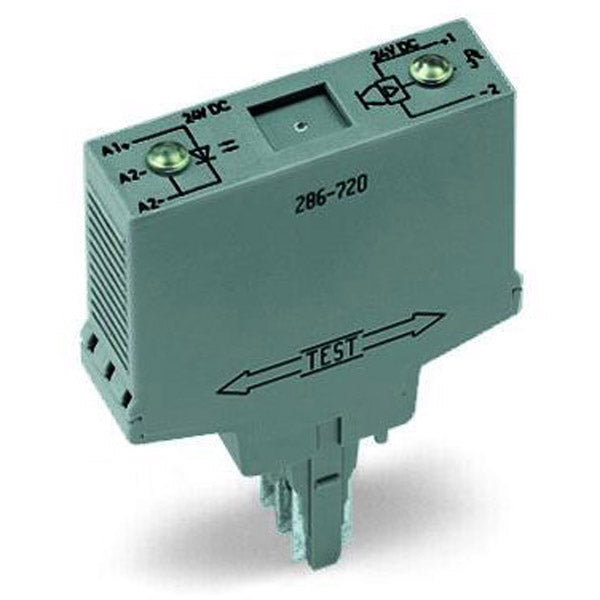

Replacement plug-in solid-state / static relay (SSR) module with red LED - 3-wire connection - low-side switching - WAGO (286 series) - single-pole / single-phase / 1-pole (1P) - control voltage 15-30Vdc (24Vdc nom.) - Rated voltage 15Vdc-40Vdc (24Vdc nom.) output - Rated current 5A (continuous) - with plug-in connections - Plug-in mounting - IP20 - equivalent to 286721

Specifications

  • Primary brand: WAGO
  • Functions: Replacement plug-in solid-state / static relay (SSR) module
  • Design: red LED|3-wire connection|low-side switching
  • Poles: single-pole / single-phase / 1-pole (1P)
  • Frequency: 1kHz switching frequency
  • Temperature: Processing temperature -25°C...+50°C
  • Rated current: 5A (continuous)
  • Rated Voltage (DC): 15Vdc-40Vdc (24Vdc nom.) output
  • Connection type: plug-in connections
  • Control Voltage (DC): 15-30Vdc (24Vdc nom.)
  • Mounting mode: Plug-in
  • Response time: (switching ON) 20μs / 0.00002s|(switching OFF) 80μs / 0.00008s
  • Dimensions: H82.5mm x W15mm x D52mm
  • Ambient air temperature for operation: -25°C...+40°C
  • Ambient air temperature for storage: -25°C...+40°C
  • Humidity: 5-95% relative humidity (RH; non-condensing)
  • ETIM code: EC001504
  • eClass code: 27-26-15-03
  • GTIN code: 4017332157735
  • Customs Tariff Number: 85365005000
  • Order code / Manufacturer SKU: 286-721
  • Manufacturer product status: Commercialized
  • Equivalent to: 286721
  • EAN code: 4017332157735
  • Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Automation components
  • Level 2 category: Control components
  • Level 3 category: Control relays
  • Product title: Replacement plug-in solid-state / static relay (SSR) module - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85365005000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-26-15-03
  • eCl@ss 9.0: 27-26-15-03
  • ETIM 8.0: EC001504
  • ETIM 9.0: EC001504
  • GTIN: 4017332157735
  • Packaging type: Box
  • Product Group: 6 (INTERFACE ELECTRONIC)
  • PU (SPU): 15 (1) pcs

Environmental Product Compliance

  • CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
  • REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
  • SCIP notification number (Austria): 0a938584-bc3f-4ca5-a92f-aed2344a0a26
  • SCIP notification number (Belgium): 98bb301d-154e-490a-992e-c2ecf03ea911
  • SCIP notification number (Bulgaria): ce6e921f-6b20-4b1e-8ad1-7d1bd4e8bae6
  • SCIP notification number (Czech Republic): fa6a524d-58c1-43fd-bdf6-4b26cb46b0ee
  • SCIP notification number (Denmark): 82b8c314-06a3-4e05-9ef3-8cd1d941caa2
  • SCIP notification number (Finland): e023aa72-65b1-4809-9a0e-b31566b4d683
  • SCIP notification number (France): 10b9dcbc-5a2e-48f1-957b-cc4bf11548b9
  • SCIP notification number (Germany): 50e69804-47ed-4f8f-9bcf-8c731491a660
  • SCIP notification number (Hungary): b9a282fb-dd0c-4623-8459-65fde7ac2910
  • SCIP notification number (Italy): cdebb324-03b1-443b-9d34-638624684b2e
  • SCIP notification number (Netherlands): fb9449cb-2b27-422d-b548-d52c447936b8
  • SCIP notification number (Poland): 3253dd11-36fa-4ceb-b09e-8e66674461d6
  • SCIP notification number (Romania): f4e40732-ec6b-47f7-ad85-6bc7c9994c73
  • SCIP notification number (Sweden): 4fdbf1f5-0f88-4dd6-9fa7-6b1fe961a1ac

Environmental requirements

  • Ambient temperature (operation at UN): -25 … +40 °C
  • Ambient temperature (storage): -25 … +40 °C
  • Operating altitude (max.): 2000m
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)

Material data

Mechanical data

  • Mounting type: Pluggable module for receptacle terminal blocks

Physical data

  • Depth from upper-edge of DIN-rail: 82.5 mm / 3.25 inches
  • Height: 52 mm / 2.047 inches
  • Note (dimensions): Depth including carrier terminal block
  • Width: 15 mm / 0.591 inches

Safety and protection

  • Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
  • Pollution degree: 2
  • Protection type: IP20

Standards and specifications

  • Standards/specifications: EN 60664-1

Technical data

  • Control circuit - Input current range: 7.5 … 18 mA
  • Control circuit - Input voltage range (high level): 15 … 30 VDC
  • Control circuit - Nominal input current at UN: 14 mA
  • Control circuit - Nominal input voltage UN: 24 VDC
  • Load circuit - Circuit type: 3-wire connection|Low-side switching
  • Load circuit - Leakage current at rated voltage: ≤ 2 µA
  • Load circuit - Limiting continuous current: 5 A
  • Load circuit - Nominal output voltage: 24 VDC
  • Load circuit - Output voltage range: 15 … 40 VDC
  • Load circuit - Switching frequency: ≤ 1 kHz
  • Load circuit - Turn-off time: ≤ 80 µs
  • Load circuit - Turn-on time: ≤ 20 µs
  • Load circuit - Voltage drop: ≤ 0.5 VDC
  • Signaling - Status indicator: Red LED
