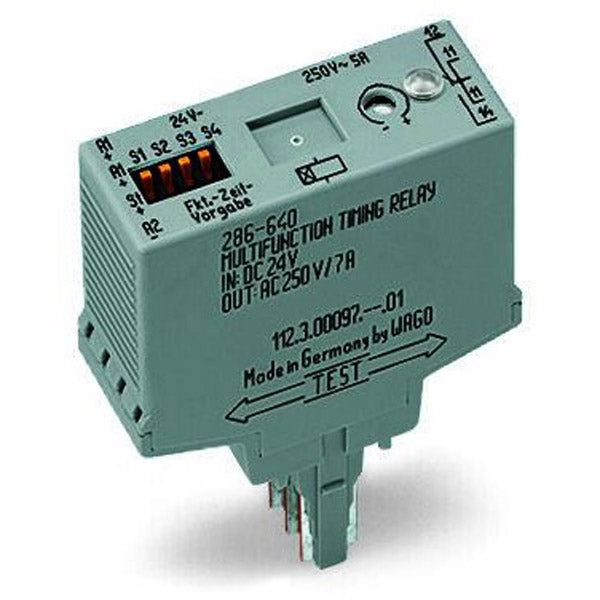

Replacement plug-in relay with red LED - WAGO (286 series) - single-pole / 1-pole (1P) - control voltage 24Vdc - 1C/O / SPDT (Single Pole Double Throw) contact - Electromechanical design - Rated current 50mA (30Vdc; DC-13) (max. recommended current to avoid evaporating the Gold flash) - with plug-in connections - Plug-in mounting - IP20 - material Hard Gold-plated Silver-Nickel (AgNi + Au) contacts - equivalent to 286640

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in relay
• Design: red LED|Electromechanical design
• Poles: single-pole / 1-pole (1P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 50mA (30Vdc; DC-13) (max. recommended current to avoid evaporating the Gold flash)|5A (continuous)|10A (4s) AC inrush maximum current
• Rated operating voltage (Ue): 250V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 4kV
• Connection type: plug-in connections
• Control Voltage (DC): 24Vdc
• Mounting mode: Plug-in
• Time delay: adjustable time range 0.3-3s / 3-12s / 10-100s / 100-800s|100ms (reset time)
• Contacts type: 1C/O / SPDT (Single Pole Double Throw) contact
• Dimensions: H82.5mm x W20mm x D52mm
• Material: Hard Gold-plated Silver-Nickel (AgNi + Au) contacts
• Ambient air temperature for operation: -25°C...+40°C
• Electrical durability (with load): 100 000operations
• Mechanical durability (at no load): 15 000 000operations
• GTIN code: 4050821806349
• ETIM code: EC001439
• eClass code: 27-37-16-05
• Customs Tariff Number: 85364900990
• Order code / Manufacturer SKU: 286-640
• Manufacturer product status: Commercialized
• Equivalent to: 286640
• EAN code: 4050821806349
• Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|Declarations of conformity and manufacturer's declarations|- Railway - WAGO GmbH & Co. KG - certificate Z00004421.000|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in relay - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-05
• eCl@ss 9.0: 27-37-16-05
• ETIM 8.0: EC001439
• ETIM 9.0: EC001439
• GTIN: 4050821806349
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Environmental Product Compliance

• CAS-No.: 1303-86-2|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): c0a31c1b-f19e-44fd-b1c7-1b8214701da2
• SCIP notification number (Belgium): fbfeac98-93f2-4c06-ba6a-8aaf276631b1
• SCIP notification number (Bulgaria): 82f14479-261e-48a7-a6f1-92c123041952
• SCIP notification number (Czech Republic): b9ff3314-a916-4351-9c42-45444871388e
• SCIP notification number (Denmark): 4e359781-f089-4753-b6cb-5f8a15c4f3de
• SCIP notification number (Finland): 90a977b9-9a25-4813-b6b4-aa5c972b4bf8
• SCIP notification number (France): 7a93b5fb-4bee-4908-9181-e7819ff1eb64
• SCIP notification number (Germany): 94741950-ddca-496a-a6b3-a1d324af371b
• SCIP notification number (Hungary): 7280d08d-6236-493e-9943-85d27b5b7aa2
• SCIP notification number (Italy): cc0f1b06-c5dc-415d-97b8-02df4cb0bd90
• SCIP notification number (Netherlands): b1322b48-4e67-4c2a-84e7-3556a28e32f0
• SCIP notification number (Poland): 9e1b04aa-6643-4a99-a15a-8d922962aa2a
• SCIP notification number (Romania): 6ebaa249-8eed-440a-853e-d21099531659
• SCIP notification number (Sweden): 91cf499c-7ddd-4b10-b597-c7628297681f

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +40 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C

Material data

• Color: gray
• Fire load: 1.013MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 34.5g

Mechanical data

• Mounting type: Pluggable module for receptacle terminal blocks

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.25 inches
• Height: 52 mm / 2.047 inches
• Note (dimensions): Depth including carrier terminal block
• Width: 20 mm / 0.787 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 3 kVrms
• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 4kV
• Rated voltage: 250V

Standards and specifications

• Standards/specifications: EN 60664-1

Technical data

• Control circuit - Nominal input current at U_N: 24 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Control circuit - Repeat accuracy: 1 %
• Control circuit - Reset time: 100ms
• Control circuit - Time range: 0.3 … 3 s; 3 … 12 s; 10 … 100 s; 100 … 800 s
• Load circuit - Bounce time (typ.): 2ms
• Load circuit - Contact material (relay): AgNi + Au
• Load circuit - Electrical life (NO; resistive load; 23 °C): 100 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 10 A / 4 s
• Load circuit - Limiting continuous current: 5 A
• Load circuit - Mechanical life: 15 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 1
• Load circuit - Switching power (resistive) max.: AC 1250 VA
• Load circuit - Switching Voltage, Max.: 250 VAC
