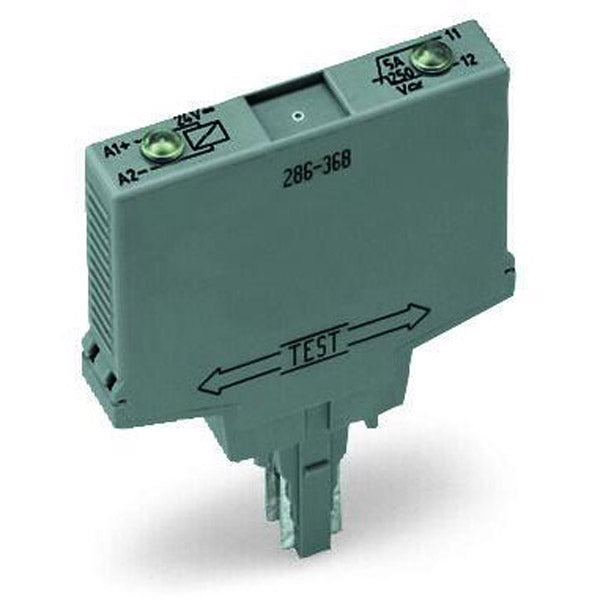

Replacement plug-in relay with red LED - WAGO (286 series) - single-pole / 1-pole (1P) - control voltage 21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc) - 1NC / SPST-NC (Single Pole Single Throw - Normally Closed) - Electromechanical design - Rated current 5A (continuous) - with plug-in connections - Plug-in mounting - IP20 - material Silver-Nickel (AgNi) contacts - equivalent to 286368

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in relay
• Design: red LED|Electromechanical design
• Poles: single-pole / 1-pole (1P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 5A (continuous)
• Rated operating voltage (Ue): 250V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 4kV
• Connection type: plug-in connections
• Control Voltage (DC): 21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc)
• Mounting mode: Plug-in
• Response time: (OFF=>ON / contacts closing) 10ms / 0.010s|(ON=>OFF / contacts opening) 4ms / 0.004s
• Contacts type: 1NC / SPST-NC (Single Pole Single Throw - Normally Closed)
• Dimensions: H82.5mm x W10mm x D52mm
• Material: Silver-Nickel (AgNi) contacts
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -25°C...+70°C
• Humidity: 5-85% relative humidity (RH; non-condensing)
• Electrical durability (with load): 50 000operations
• Mechanical durability (at no load): 5 000 000operations
• GTIN code: 4045454384036
• ETIM code: EC001437
• eClass code: 27-37-16-01
• Customs Tariff Number: 85364900990
• Order code / Manufacturer SKU: 286-368
• Manufacturer product status: Commercialized
• Equivalent to: 286368
• EAN code: 4045454384036
• Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in relay - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4045454384036
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 25 (1) pcs

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 36497ae2-55f1-4340-a81f-1e3485ef3972
• SCIP notification number (Belgium): b642b671-8ef5-4906-a7c9-2f5e80fe3660
• SCIP notification number (Bulgaria): c91ef76f-81f8-4e0e-9eec-3ad9927ebe53
• SCIP notification number (Czech Republic): 60779511-3574-4177-a2cf-6420095228d6
• SCIP notification number (Denmark): 35baaaa6-709f-4bed-b488-23c9643ba34c
• SCIP notification number (Finland): 6d55146d-e74d-43c3-b45a-f2ff48aee3dd
• SCIP notification number (France): 32d9add0-26d8-401c-a183-e3085d344995
• SCIP notification number (Germany): a778b3e8-9df1-4ab0-91fb-a1ba9f4ae9a0
• SCIP notification number (Hungary): f5ec93a7-19f8-40b6-85d7-6461ddd04598
• SCIP notification number (Italy): 66b4be46-be73-4cfd-a2a9-98c21d72800c
• SCIP notification number (Netherlands): 4af6202b-3d13-4512-9868-8ebe884382b1
• SCIP notification number (Poland): 578745b3-9a9c-4d14-8e14-31ed5af9dd23
• SCIP notification number (Romania): dbbe6f5e-f2e5-4ca1-a316-1c294a64b9fc
• SCIP notification number (Sweden): 924ac231-e702-4595-bed8-287a6eb8202a

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +40 °C
• Ambient temperature (storage): -25 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 % (no condensation permissible)

Material data

• Color: gray
• Fire load: 0.298MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 19.1g

Mechanical data

• Mounting type: Pluggable module for receptacle terminal blocks

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.248 inches
• Height: 52 mm / 2.047 inches
• Note (dimensions): Depth including carrier terminal block
• Width: 10 mm / 0.394 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 4 kVrms
• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 4kV
• Rated voltage: 250V

Standards and specifications

• Standards/specifications: EN 60664-1

Technical data

• Control circuit - Input voltage range: ±10 %
• Control circuit - Nominal input current at U_N: 21 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Bounce time (typ.): 3ms
• Load circuit - Contact material (relay): AgNi
• Load circuit - Drop-out time (typ.): 4ms
• Load circuit - Limiting continuous current: 5 A
• Load circuit - Mechanical life: 5 x 10⁶ switching operations
• Load circuit - Number of break/switch-off contacts: 1
• Load circuit - Pull-in time (typ.): 10ms
• Load circuit - Switching power (resistive) max.: AC 1250 VA
• Load circuit - Switching Voltage, Max.: 250 VAC
• Signaling - Status indicator: Red LED
