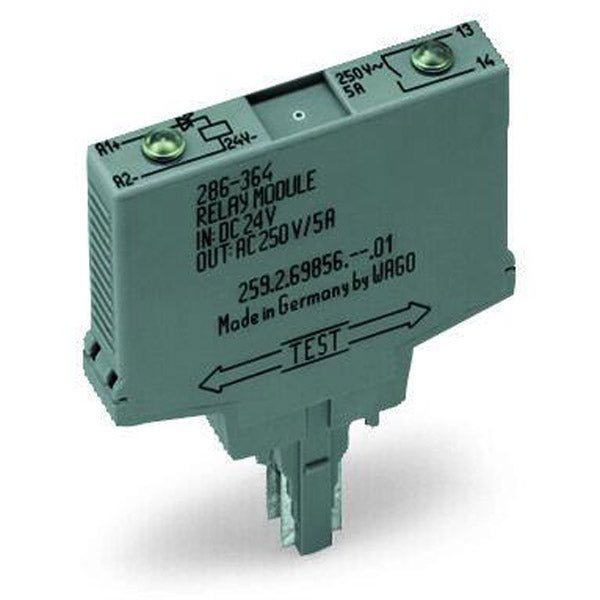

Wago - 286-364

Replacement plug-in relay with red LED - WAGO (286 series) - single-pole / 1-pole (1P) - control voltage 21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc) - 1NO / SPST-NO (Single Pole Single Throw - Normally Open) - Electromechanical design - Rated current 5A (continuous) - with plug-in connections - Plug-in mounting - IP20 - material Silver-Tin (AgSnO) contacts - equivalent to 286364

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in relay
• Design: red LED|Electromechanical design
• Poles: single-pole / 1-pole (1P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 5A (continuous)
• Rated operating voltage (Ue): 250V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 2.5kV
• Connection type: plug-in connections
• Control Voltage (DC): 21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc)
• Mounting mode: Plug-in
• Response time: (OFF=>ON / contacts closing) 6ms / 0.006s|(ON=>OFF / contacts opening) 6ms / 0.006s
• Contacts type: 1NO / SPST-NO (Single Pole Single Throw - Normally Open)
• Dimensions: H82.5mm x W10mm x D52mm
• Material: Silver-Tin (AgSnO) contacts
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -25°C...+70°C
• Humidity: 5-85% relative humidity (RH; non-condensing)
• Electrical durability (with load): 10 000operations
• Mechanical durability (at no load): 50 000operations
• Customs Tariff Number: 85364900990
• ETIM code: EC001437
• eClass code: 27-37-16-01
• GTIN code: 4045454524968
• Order code / Manufacturer SKU: 286-364
• Manufacturer product status: Commercialized
• Equivalent to: 286364
• EAN code: 4045454524968
• Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in relay - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4045454524968
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 25 (1) pcs

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 37cfa972-56bf-436f-b83e-b1434f6fb6aa
• SCIP notification number (Belgium): 719ef852-64c4-45c0-b92e-7380c444b323
• SCIP notification number (Bulgaria): 2ceb4bb5-ac32-490d-b51f-bcfcb974cb78
• SCIP notification number (Czech Republic): d24be673-9397-4c03-849d-ed0a14b0cc37
• SCIP notification number (Denmark): 41005413-0991-4ab3-b825-e9071cbbbe2f
• SCIP notification number (Finland): 57a59f15-2ca7-4465-a94b-5475ccdfca41
• SCIP notification number (France): 0a96f464-1266-41aa-b867-5f22b4de28ff
• SCIP notification number (Germany): 83cd04c6-49b4-4396-9c6f-45f99ec34ad5
• SCIP notification number (Hungary): 6dbef225-5d5b-4243-b85a-b6a9bb51bf96
• SCIP notification number (Italy): c451ce8b-66ae-4aef-9c3a-e2466d17e8e3
• SCIP notification number (Netherlands): 2f3984bf-52c4-46d0-9234-240886a77fb5
• SCIP notification number (Poland): 31fb2071-96d0-4ccb-8c06-712ce3cd9a8d
• SCIP notification number (Romania): 9e4d84f8-e373-4804-965e-68c907fa360f
• SCIP notification number (Sweden): d1b08015-267e-4128-a4aa-52ca75ca45fe

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +40 °C
• Ambient temperature (storage): -25 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 % (no condensation permissible)

Material data

• Color: gray
• Fire load: 0.298MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 16.8g

Mechanical data

• Mounting type: Pluggable module for receptacle terminal blocks

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.248 inches
• Height: 52 mm / 2.047 inches
• Note (dimensions): Depth including carrier terminal block
• Width: 10 mm / 0.394 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 3 kVrms
• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 2.5kV
• Rated voltage: 250V

Standards and specifications

• Standards/specifications: EN 60664-1

Technical data

• Control circuit - Input voltage range: ±10 %
• Control circuit - Nominal input current at U_N: 8 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Bounce time (typ.): 2ms
• Load circuit - Contact material (relay): AgSnO₂
• Load circuit - Drop-out time (typ.): 6ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 10 x 10³ switching operations
• Load circuit - Limiting continuous current: 5 A
• Load circuit - Mechanical life: 50 x 10³ switching operations
• Load circuit - Number of make/switch-on contacts: 1
• Load circuit - Pull-in time (typ.): 6ms
• Load circuit - Switching power (resistive) max.: AC 1250 VA
• Load circuit - Switching Voltage, Max.: 250 VAC
• Signaling - Status indicator: Red LED
